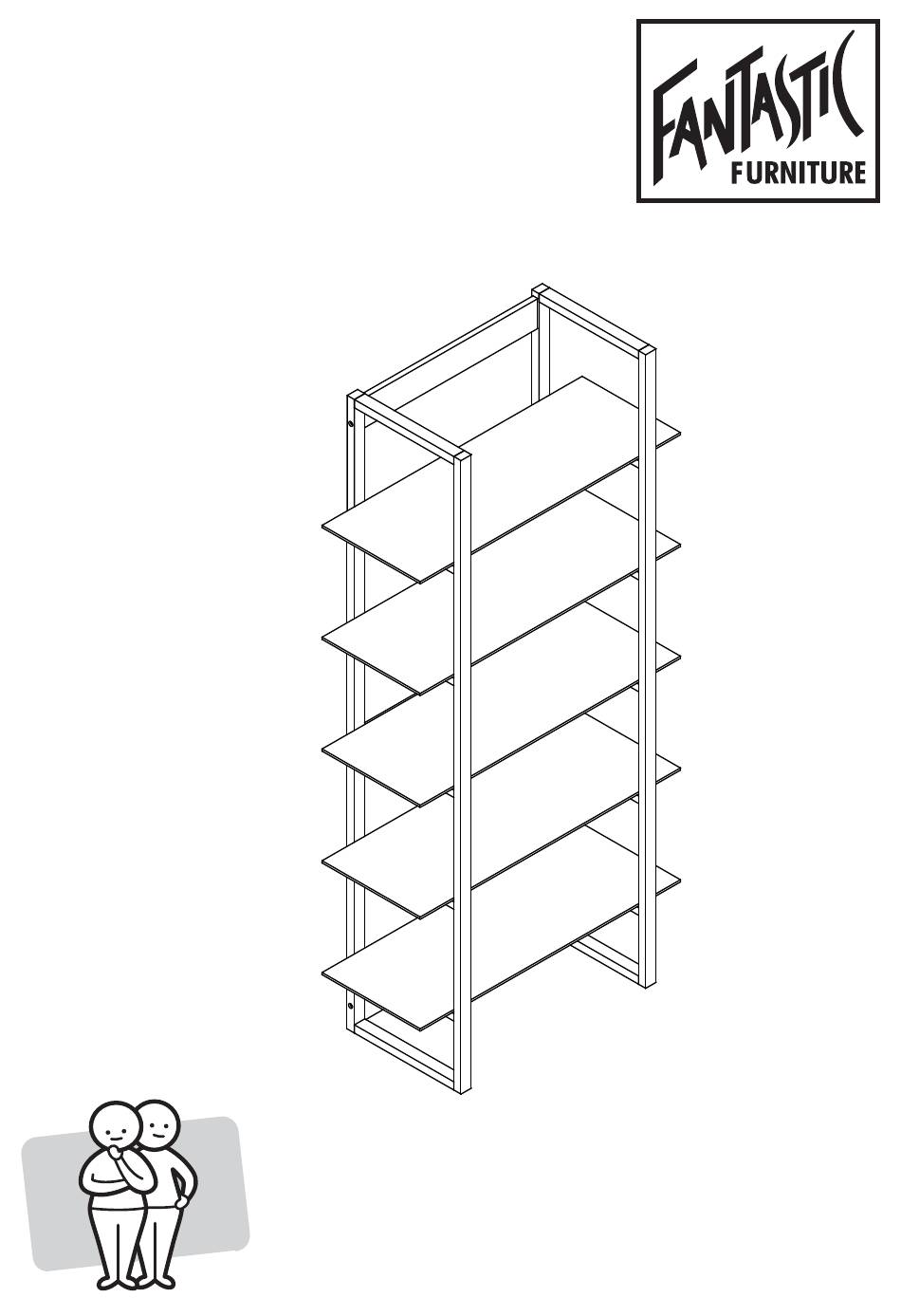

- Page 1 Version 1.0 TWO PEOPLE TOTO Bookcase 5 Shelf www.fantasticfurniture.com.au REQUIRED...
- Page 2 Enjoy Your purchase from Australia’s Best Value Furniture Store www.fantasticfurniture.com.au PAGE 2...
- Page 3 Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.
- Page 4 What you need Right to assemble the product Side Frame (P2) Rail DO NOT USE (P3) Other tools you need Shelf Panel Flat head screwdriver; Phillips head (P4) screwdriver; Shelf Panel Rail (P4) (P5) Shelf Panel Left (P4) Side Frame Rail (P1) (P3)
- Page 5 Step 1 You will need (P3) 3 x Dowels 5 x Cam Bolts (H1) (H2) (P5) (P3) (P3) 5 x Cam Nuts Phillips head (H3) screwdriver (P5) (P2) Flat head screwdriver countersink hole on outside Insert 3 x Dowels (H1) into Right Side Frame (P2). Push 5 x Cam Bolts (H2) through Right Side Frame (P2) attach with Rails (P3, P5) with 5 x Cam Nuts (H3) using a Flat head screwdriver.
- Page 6 Step 3 (P2) (P4) You will need (P4) (P4) (P4) (P5) 20 x Dowels (H1) (P4) (P5) (P3) (P1) Insert 20 x Dowels (H1) into Side Frames (P1, P2) and attach with Shelf Panels (P4). Step 4 (P2) (P4) You will need (P4) (P1) (P4)
- Page 7 We strongly advise that you use Step 5 the wall safety strap provided to prevent the unit toppling You will need 1 x Safety 1 x Screw Strap (H5) (H6) 1 x Washer Phillips head (H7) screwdriver Use Screw (H6) and Washer (H7) to connect Safety Strap (H5) on Rail (P3).
- Page 8 Recommended weight capacity : 10KG. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. www.fantasticfurniture.com.au PAGE 8...
