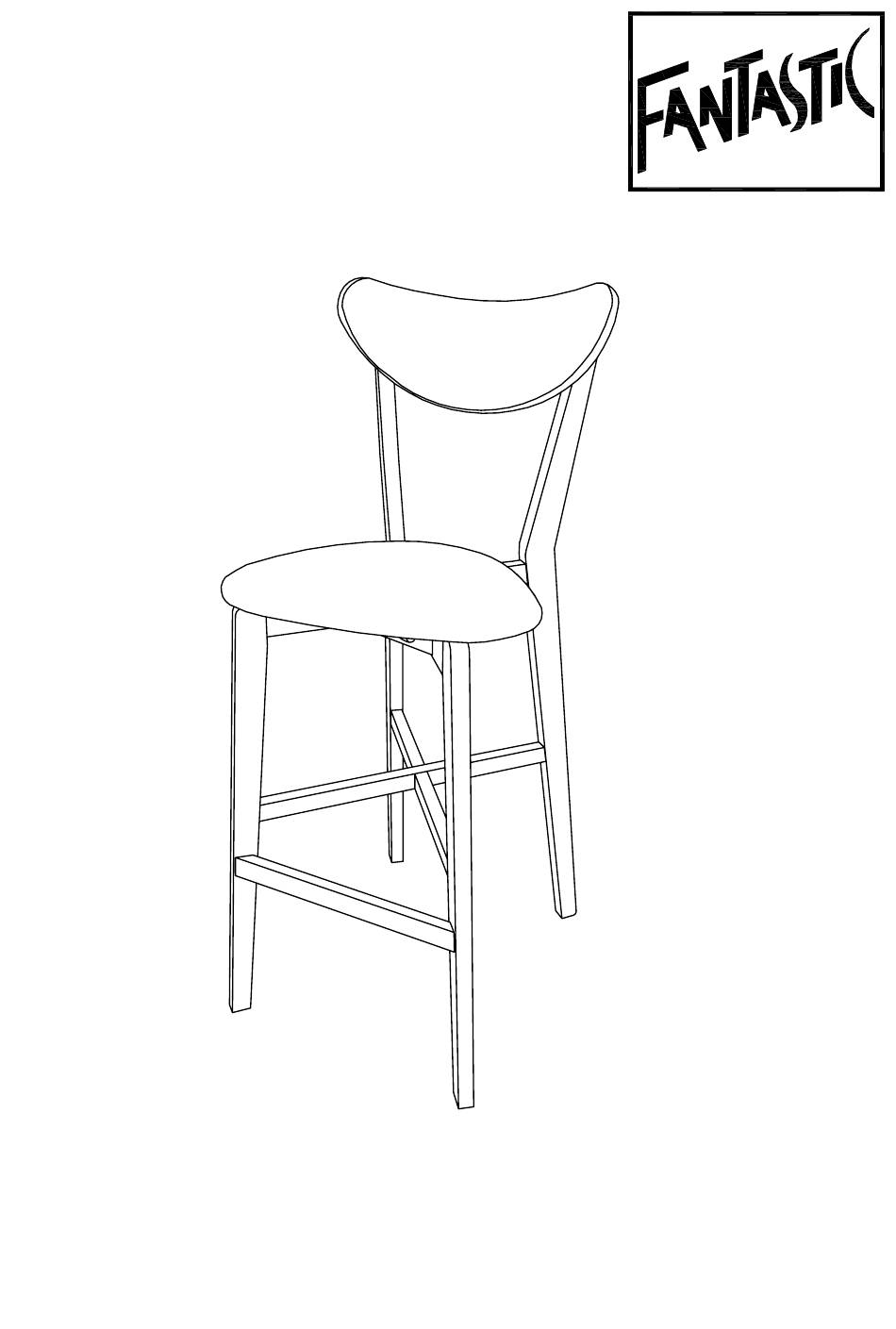

  • Page 1 FURNITURE Version 1.1 TOTO BAR STOOL 1 SEATER www.fantasticfurniture.com.au...
  • Page 2 Enjoy Your purchase from Australia’s Best Value furniture CAUTION Do not stand on, or use this chair as a step ladder. Use this product for seating one person at a time. This product should be checked periodically to ensure all components are secure and all hardware is tight.

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all the components screws until the item is fully assembled. before you begin assembly.

  • Page 4: What You Need

    What you need Back Rest (P1) to assemble the product Seat Cushion (P7) Corner Block DO NOT USE (P4) Additional Tools Required : Phillips Head Screwdriver Cross Rail (P6) Leg Frame (Left) (P2) Part list Front Rail Leg Frame (Right) Back Rest (P1);...
  • Page 5 Step 1 You will need 1 x Allen Key 1 x Long Wood Bolt (H1) (H8) ENSURE BOLT HOLES ARE FACING EACH OTHER IN FRONT,NOT FACING THE SIDES OF CHAIR. Attach Leg Frame (Right) (P3) to Leg Frame (Left) (P2) using 1 x Long Wood Bolt (H8). DO NOT FULLY TIGHTEN ANY BOLTS OR SCREWS UNTIL STEP 8.
  • Page 6 Step 3 You will need 1 x Allen Key 1 x Short Wood (H1) Bolt (H6) Secure Cross Rail (P6) using 1 x Short Wood Bolt (H6). Step 4 You will need 4 x 60mm Bolt 1 x Allen Key (H2) (H1) Attach Seat Cushion (P7) to Leg Frame (Right and Left) (P3 &...
  • Page 7 Step 5 You will need 4 x 35mm Bolt 1 x Allen Key (H4) (H1) 4 x Spring Washer 4 x Flat Washer (H9) (H10) Attach Corner Block (P4) to Leg Frame (P2) & (P3) using 4 x Spring Washer (H9) , 4 x Flat Washer (H10) and 4 x 35mm Bolt (H4).
  • Page 8 Step 7 You will need 4 x 25mm Bolt 1 x Allen Key (H5) (H1) 4 x Spring Washer 4 x Flat Washer (H9) (H10) Attach Back Rest (P1) to Leg Frame (P2) & (P3) using 4 x Flat Washer (H10), 4 x Spring Washer (H9), and 4 x 25mm Bolt (H5).

  • Page 9: Job Complete

    Job Complete! In the interest of our environment please dispose of all packaging thoughfully. FURNITURE PAGE 9 www.fantasticfurniture.com.au...
