- Page 1 PRO SERIES LED PRO SERIES EXTERIOR SMART LIGHTING KIT WP ITM. LM532674 Installation Guide & Safety Information Important, retain for future reference: Read carefully...
-
Page 2: Package Contents

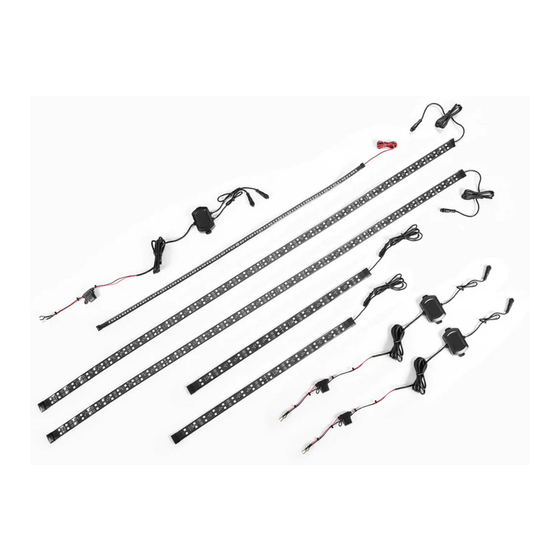

PACKAGE CONTENTS SIDE GLOW LED 74” Wire 2 x 60” RGB LED Strip Fuse 12” Wire 60” Wire Smart Hub... - Page 3 PACKAGE CONTENTS ACCESSORIES Cable Ties Mounting Mounting Screws Brackets x 16 3M™ VHB Adhesion Promoters Alcohol Pads Double-sided Tape x 1 (For Smart Hub)
-
Page 4: Technical Specifications
2.4 GHz Bluetooth / App Distance: 30 ft Line-of-sight (Obstacles may create interference) OS Compatibility: iOS & Android LED Types: Side Glow - SMD 5050 RGB, 120 chips per strip IP Rating of LED Strips: IP65, Water-resistant Replacement Fuse: Side Glow - 5A... -
Page 5: Installation
INSTALLATION Installing the LED strips: Side Glow LED 1. Choose your desired location to install the light strips (Refer to the figures on the right for the recommended installing location for each LED strip.) 2. Clean the surface thoroughly with the alcohol pads provided and let it dry completely. - Page 6 INSTALLATION Connecting the LED strips to the Smart Hub: 5. Connect the LED strips to the Smart Hub. Make sure the weatherproof 3 pin connectors are securely fastened and route cables away from engine. The connectors are directional, make sure to connect to the correct position and fasten each end of the cap.
-
Page 7: Connect To Power
CONNECT TO POWER Connecting the Smart Hubs to power: Smart Hub hardwire cables are color coded, for POSITIVE (+) and BLACK for NEGATIVE (-). Connect the cable to the POSITIVE (+) battery clamp as illustrated. The POSITIVE battery post will be slightly larger than the NEGATIVE post, and will be marked with a PLUS (+) sign. -
Page 8: App Installation
APP INSTALLATION Install the TYPE S LED APP on your smart device. Scan below QR code or search for the TYPE S LED APP in the APP Store or Google Play. Once installed, open the APP and begin enjoying your TYPE S Pro Series Exterior Smart LED Kit! Compatible with phones Compatible with iPhone... -
Page 9: Using The App
USING THE APP Home Page Pro Series Page Tap “PRO SERIES” icon to start. The APP will automatically pair to the Smart Hub when both the lights and your device are powered on and within the Master On/Off Switch 30-foot Bluetooth® range. We strongly recommend that you setup a private password to prevent unauthorized LED Zone... - Page 10 USING THE APP A. Master On/Off Switch LED Zone Functions Move Zone Icon Rename Zone Icon B. LED Zone Functions Zone On/Off: Press each zone icon to turn LED On or Off. Move Zone Icon: Press and hold the zone icon, select “Move”...
- Page 11 USING THE APP C. Preset Functions Save Preset Select Preset Select Color Save Preset: Save your favourite settings. After choosing your settings, press “Save Preset” and enter your preset name. Save up to 10 Presets. Select Preset: To select your previously saved preset setting, simply press “Select Preset”...
- Page 12 USING THE APP Password D. Password You can set up a password to prevent other devices from controlling your lights. Once you have entered your password, it will be saved in the APP and the Smart Hub. NOTE: To set or change the password, your device must be connected to the Smart Hub simply follow on-screen instructions.
- Page 13 USING THE APP Music Mode Sync lights with the beat of music Music Mode allows music to control the lighting tempo through your smartphone or tablet. Sync lighting with your music in two ways: 1.) Through locally downloaded music files, or 2.) Through an enabled microphone on the smartphone / tablet. Local Music to choose music from your music library.
- Page 14 WARNINGS Important Safety Instructions: 1. SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for LED Kit model LM532674. 2. NEVER use the APP while operating your vehicle. Use the APP when vehicle is stationary only. 3. Before using this LED Kit, read all instructions and cautionary markings to ensure the product is properly & safely installed.
- Page 15 WARNINGS FCC Compliance Statement: This device comply with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 16 WARNINGS This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. WARNING: This product can expose you to chemicals including DEHP and DINP, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings. ca.gov.
- Page 17 NOTES marks by Winplus Co. Ltd is under license. Other trademarks and trade names are those of their respective owners. 3M VHB™ is a trademark of 3M company. Pro Series Exterior Smart Lighting Kit LM532674 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A.
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A. 1.866.294.9244 | info@typesauto.com ©2021 TYPE S. All rights reserved. www.typesauto.com ML-532674_V1...
