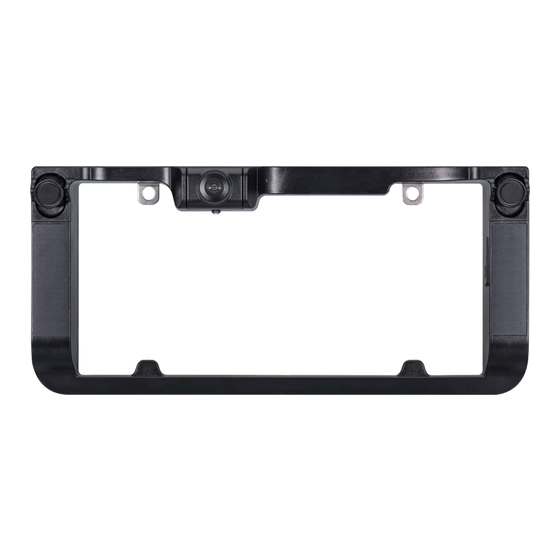

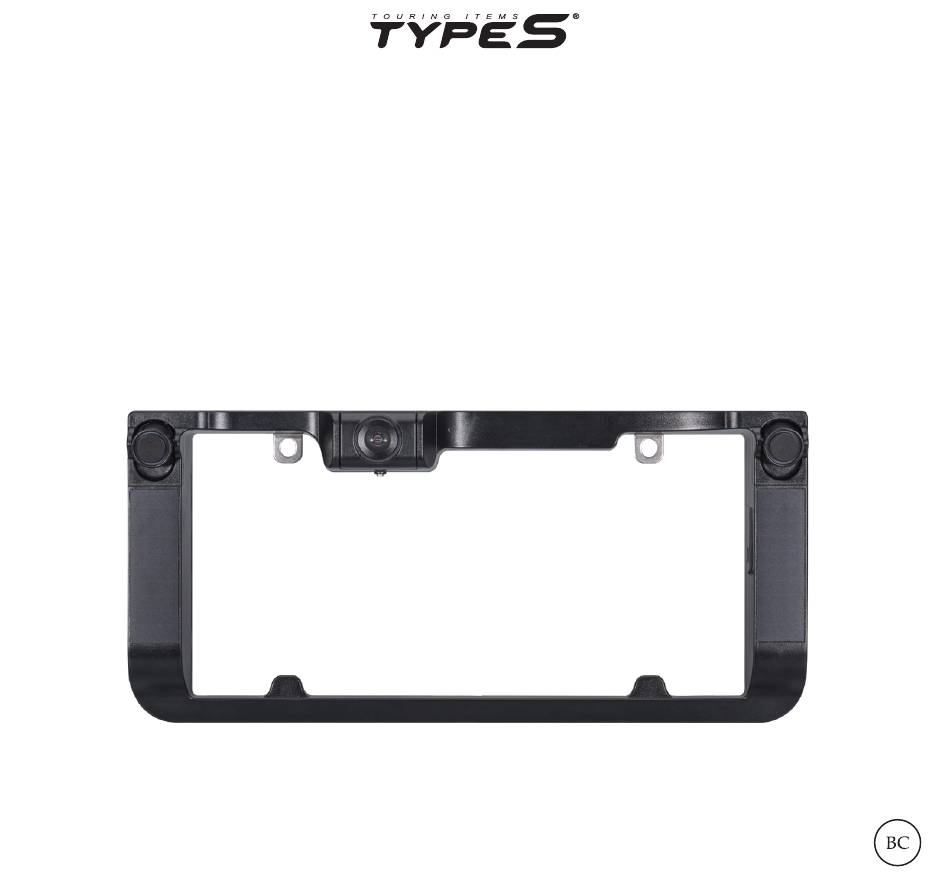

- Page 1 ADD-ON SOLAR-POWERED HD PARKING CAMERA WITH BUILT-IN PARKING SENSOR Extension Kit for Wireless Backup Camera WP ITM. BT534021 Care & Use Instructions Important, retain for future reference: Read carefully...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..................................3 2. Package Contents ................................4 3. Product Specifications ..............................5 4. Product Overview ................................5 5. Before You Install ................................6 6. Pairing ....................................6 7. Installation Guide ................................7 8. Parking Sensor Coverage ............................. 11 9. -
Page 3: Introduction
The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the product. Consult an experienced technician if you are not comfortable installing the product. You can also contact TYPE S at 866.294.9244 to speak to one of our installation specialists if you have any specific... -
Page 4: Package Contents
2. PACKAGE CONTENTS Add-on Solar-Powered HD Parking Camera 33” Micro-USB Charging Cable 2 x License Plate Machine Screw (Optional) 2 x License Plate Self-Tapping Screw (Optional) 2 x Two-Way Mounting Tab (Optional) 2 x Mounting Screw & Nut (Optional) Quick Installation Guide Instruction Manual Warranty Card... -
Page 5: Product Specifications
3. PRODUCT SPECIFICATIONS Frequency: 2.4GHz Operating Voltage: Parking Camera - DC 5V Operating Temperature: º º º º F~122 F (-10 C~50 Camera Water Resistance: IP65 Rating Battery Capacity: 5200mAh (Minimum Capacity 5000mAh) Maximum Signal Range: 33 Feet / 10 Meters (without interference or obstruction) 4. -
Page 6: Before You Install
5. BEFORE YOU INSTALL 1. Fully charge the camera: Flip open the charging port lid located next to the left solar panel. Connect it to a power source using the Micro-USB charging cable included. 2. Make sure you have already purchased and installed the Solar-Powered HD Backup Camera with Built-in Parking Sensor and Dashboard Monitor (BT532858, sold separately). -
Page 7: Installation Guide
7. INSTALLATION GUIDE A) STANDARD INSTALLATION: 1. Install the Parking Camera over your front or rear license plate. Blue LED light 3. Now you may wake the camera up by either 2. Press and hold the button located under the camera until the Blue LED waving your hand in front of the monitor or light double flashes. - Page 8 B) LOWERED INSTALLATION – USE THIS OPTION IF THE STANDARD INSTALLATION BLOCKS THE TRUNK/HATCHBACK RELEASE BUTTON 1. Unscrew and detach the existing mounting 2. Install the Two-Way Mounting Tabs tabs from the camera. (included) onto the camera. 3. Remove the license plate from your 4.
- Page 9 C) RAISED INSTALLATION – FOR TRUCKS & SUV WITH STEP BUMPERS 1. Remove the license plate from your vehicle. 2. Install the Two-Way Mounting Tab onto the drill holes. 3. Install the Parking Camera and your license plate back onto your vehicle. Mounting Two-Way Mounting...
- Page 10 ADJUSTING CAMERA LENS AND PARKING SENSOR ANGLE Adjust the angle of the camera and the sensors to optimize their coverage. Parking Sensor coverage 20 º 30 º Parking Camera viewing angle 20 º 40 º...
-
Page 11: Parking Sensor Coverage
8. PARKING SENSOR COVERAGE 49.2” ~ 41.3” (125 cm ~ 105 cm) 40.9” ~ 35.4” (104 cm ~ 90 cm) 35” ~ 29.5” (89 cm ~ 75 cm) 29.1” ~ 23.6” (74 cm ~ 60 cm) 23.2” ~ 17.7” (59 cm ~ 45 cm) <... -
Page 12: Safety Information
9. SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of 12/24V car charger (Sold separately with Backup Camera Kit). 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow. 4. - Page 13 different from actual conditions. Objects viewed in the monitor differ from actual distance because a wide-angle lens is used. Objects in the monitor will appear visually opposite than when viewed in the rear view and outside mirrors. Use the inside mirror or glance over your shoulder to properly judge distances to other objects.
- Page 14 • Do not submerge Parking Camera in water, which can cause internal damage to the Camera. • If the temperature changes rapidly, such as when hot water is poured on the vehicle in cold weather, the system may not operate normally. The Digital Camera can withstand the effects of rain, snow, and inclement weather.
-
Page 15: Maintenance & Warranty
10. MAINTENANCE & WARRANTY CLEANING • If dirt, rain or snow attaches to the Camera, the Monitor may not clearly display objects. If water droplets, snow or mud adhere to the Camera lens, rinse with water and wipe with a dry cloth. •... - Page 16 5. Repair or replacement parts supplied by TYPE S under this warranty are protected only for the unexpired portion of the original warranty. 6. This is a “repair or replace” warranty only, and does not cover the costs incurred for the installation, removal or reinstallation of the product, or damage to any mobile phone device or vehicle.
- Page 17 be in an accident or otherwise not collide with an object and/or person. Our Parking Camera is not intended in any way to be a substitute for careful and cautious driving or for the consistent adherence to all applicable traffic laws and motor vehicle safety regulations. The Parking Camera is not intended to be a substitute for rearview mirrors or for any other motor vehicle equipment mandated by law.
-
Page 18: General Information
11. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC Compliance Statement: This device complies with Part 15 of the FCC rules. - Page 19 20cm during normal operation. Add-on Solar-Powered HD Parking Camera with Built-In Parking Sensor Extension Kit for Wireless Backup Camera BT534021 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A.
- Page 20 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626, U.S.A. 1.866.294.9244 | info@typesauto.com ©2023 TYPE S. All rights reserved. www.typesauto.com ML-534021_V1...
