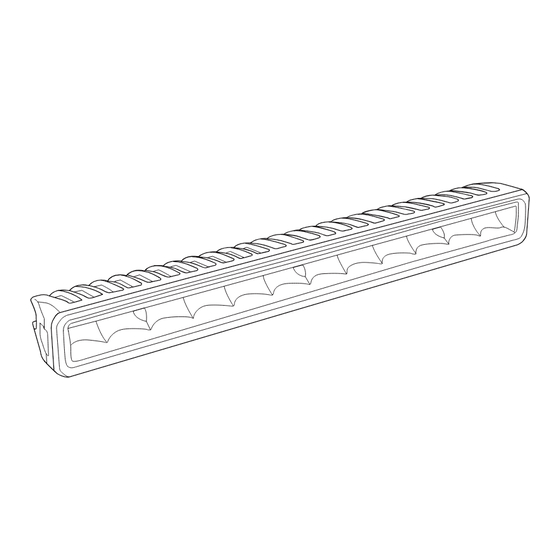

- Page 1 14” LIGHT BAR WITH UNIVERSAL MOUNTING KIT & WIRELESS CONTROLLER ITM./ART. 1344590 WP ITM. LM57170 Care & Use Instructions Important, retain for future reference: Read carefully...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Warning ..............................3 2. Package Contents ............................. 4 3. Product Specifications ..........................5 4. Status Light Indication ..........................5 5. Installation Guide ............................6 6. Troubleshooting ............................9 7. Warranty ..............................9 8. FCC Compliance Statement ........................11... -
Page 3: Warning
WARNING IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions. 2. Before using this product, read all instructions and cautionary markings . 3. Do not expose the switch controller to rain, moisture, or snow. 4. -
Page 4: Package Contents
PACKAGE CONTENTS 1 x 14” Light Bar 1 × Hub Controller 1 × Switch with easy battery connector Controller 1 × 3M™ Double-sided 1 × Allen Key 4 × Zip Tie 4 x Set of M6 Screw Tape for Hub Controller with Nut, Spring Washer and Flat Washer 2 x Universal... -
Page 5: Product Specifications
PRODUCT SPECIFICATIONS Working voltage: DC 12V Only Transmission distance: 30 ft (9.14 m) (no obstacle) Frequency band: 2.4 GHz Watt: LEDs: 12 × Super White LED Raw Lumens: 6000 Effective Lumens: 2500 Weatherproof Light: IP67 Rated (Light bar only) Weight: 1.4 lb / 0.63 kg Maximum amperage draw: Replacement Fuse:... -
Page 6: Installation Guide
INSTALLATION GUIDE 1) INSTALLING THE LIGHT BAR Universal Mounting Bracket A Universal Mounting Bracket B M6 Screw Universal M6 Screw Spring Washer Mounting Bracket B Flat Washer Flat Washer Spring Washer Universal Mounting Bracket A Hardware: • Universal Mounting Brackets A or B •... - Page 7 2) CONNECT THE LIGHT TO THE HUB CONTROLLER - Connect the Light Bar cable with the Hub Controller cable. Make sure the connectors are securely fastened and route cables away from engine. The connectors are directional, make sure to connect to the correct position and fasten each end of the cap.
- Page 8 4) PAIRING Pairing Button Pairing Button Fig.1 Fig.2 • The unit is ready to use without additional pairing. However the Switch Controller can control additional Type S Light Bars via pairing. One Switch Controller can connect up to 4 Light Bars. •...
-
Page 9: Troubleshooting
TROUBLESHOOTING Issue Cause Remedy The Light Bad power connection Check power connection and make sure the blue Bar is not LED indicator of the Hub Controller is flashing or working try to disconnect power and reconnect The light Light may still be “on” after engine is Start the engine and the vehicle will generate turns on but turned off. - Page 10 4. The replacement of parts is excluded from the warranty when replacement is necessary due to normal wear and tear. 5. Repair or replacement parts supplied by Type S under this warranty are protected only for the unexpired portion of the original warranty. 6.
-
Page 11: Fcc Compliance Statement
FCC Compliance Statement: TERRA PRO™ 14” LIGHT BAR WITH UNIVERSAL MOUNTING KIT & WIRELESS CONTROLLER Model: LM57170 Responsible Party: Type S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 866-294-9244 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 12 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | info@typesauto.com ©2019 Type S. All rights reserved. www.typesauto.com ML-57170_V1...
