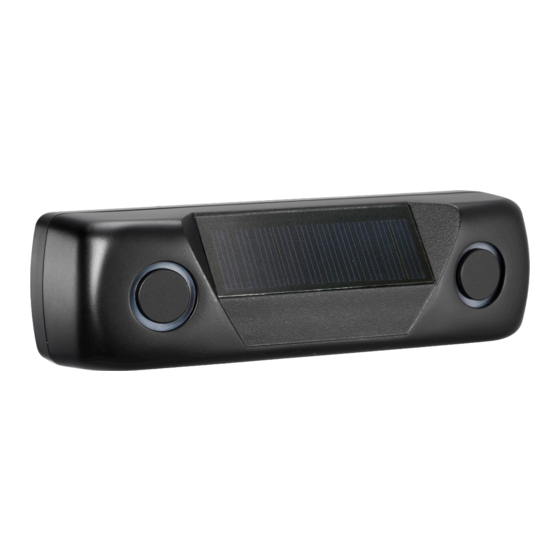

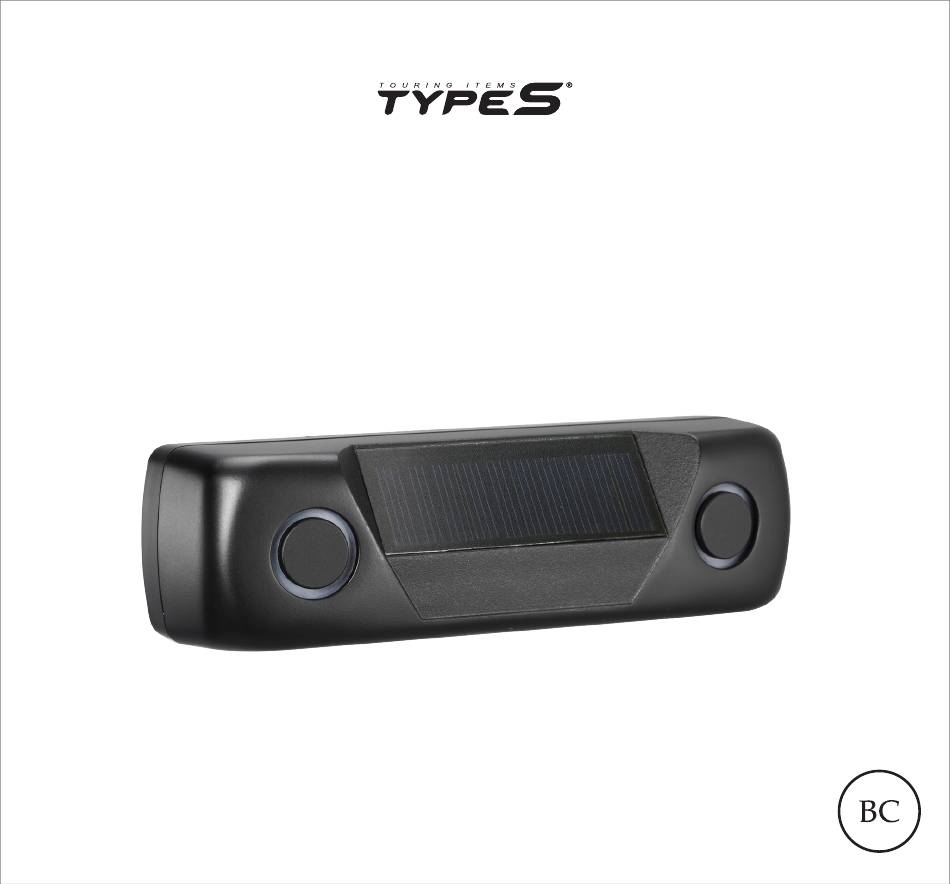

- Page 1 App View and Solar-Powered Parking Sensor WP ITM. BT56485 / BT56485F Care & Use Instructions Important, retain for future reference: Read carefully...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ....................................1 2. Package Contents ...................................2 3. Product Specifications ................................3 4. Installation Guide ..................................3 5. App Installation ..................................4 6. Instructions ....................................5 7. Product Usage ...................................9 8. Important Safety Information ............................10 9. Maintenance & Warranty ..............................12 10. -
Page 3: Introduction
Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. -
Page 4: Package Contents
2. PACKAGE CONTENTS 1. App View and Solar-Powered Parking Sensor 2. USB Charging Cable 3. Instruction Manual 4. Quick Install Guide... -
Page 5: Product Specifications
3. PRODUCT SPECIFICATIONS 1. Operating Voltage: DC 5V 2. Battery Capacity: 2000mAh 3. Weather Resistance: IP67 rating 4. Operating Temperature: 14ºF~122ºF (-10ºC~50ºC) 4. INSTALLATION GUIDE Stick on back of license plate Note: Before installation, fully charge the Parking Sensor until the red indicator light is off. 1. -
Page 6: App Installation
3. Peel off the lining of the double-sided tape already attached to the Parking Sensor and press firmly to the license plate to secure the Parking Sensor. Make sure the back of the license plate is clean before attaching double-sided tape. 4. -
Page 7: Instructions
6. INSTRUCTIONS 1. Press and hold the power button for more than 2.5 seconds to turn on the Parking Sensor. Blue indicator light will flash to indicate the Parking Sensor is in pairing mode. Power Button 2. Open the Type S Drive App and choose App View and Solar-Powered Parking Sensor. - Page 8 3. Turn on GPS and Bluetooth function on your mobile device. a. Android - Press OK / YES to allow the App to turn on GPS and Bluetooth. b. iOS - Turn on GPS and Bluetooth in the Settings page. Android Android...
- Page 9 4. The App will prompt you to pair up with the Parking Sensor. Press OK to confirm. 5. User MUST setup a new 4 digit password (for example: 1234) and press CONFIRM. The indicator light will change to solid blue if the pairing is successful.
- Page 10 Tips Switch between Front and Rear Sensor Note: Rear Sensor is the default setting in the initial setup. Lock/Unlock Parking Sensor with Password Turn On/Off audio alerts Alert is ON when the APP is open and MUTED when running in the background. Alert signal Alert is always ON when the APP is open or running in the background.
-
Page 11: Product Usage
7. PRODUCT USAGE Parking Sensor battery is solar rechargeable. Before installation, fully charge the Parking Sensor until the red indication light is off. Recommend to charge 2 hours under sunlight exposure per day. The Parking Sensor still function even the Type S Drive App runs in background. However, turning off the App will disconnect the Parking Sensor. -
Page 12: Important Safety Information
8. IMPORTANT SAFETY INFORMATION WARNING: A failure to read and follow these warnings and instructions may result in a serious accident, including damaged property or a serious injury, including loss of life. • The Parking Sensor is designed as an aid to the driver in detecting large stationary objects to help avoid damaging the vehicle. - Page 13 • The Parking Sensor has a water resistant construction. Do not detach, disassemble or modify it. This may cause incorrect operation. Parking Sensor is waterproof. • Do not submerge Parking Sensor in water, which can cause internal damage to the Parking Sensor.
-
Page 14: Maintenance & Warranty
9. MAINTENANCE & WARRANTY CLEANING • If dirt, rain or snow attaches to the Parking Sensor, the detection may be affected. If water droplets, snow or mud adhere to the Parking Sensor, rinse with water and wipe with a dry cloth. •... - Page 15 5. Repair or replacement parts supplied by Winplus North America under this warranty are protected only for the unexpired portion of the original warranty. 6. This is a “repair or replace” warranty only, and does not cover the costs incurred for the installation, removal or reinstallation of the product, or damage to any mobile phone device or vehicle.
- Page 16 Sensor will not be in an accident or otherwise not collide with an object and/or person. Our Parking Sensor is not intended in any way to be a substitute for careful and cautious driving or for the consistent adherence to all applicable traffic laws and motor vehicle safety regulations. The Parking Sensor is not intended to be a substitute for rearview mirrors or for any other motor vehicle equipment mandated by law.
- Page 17 warranty of any kind aside from the limited express warranty stated above. OWNER’S RESPONSIBILITIES: In order to provide you with the proper warranty service, we request that you adhere to the following procedure: 1. Include a copy of your sales receipt or bill of sale with your unit when it is returned for warranty service.
-
Page 18: General Information
10. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT For questions or issues regarding the product, please contact Winplus in your area/region to speak to our customer service representative: Winplus North America Tel.: 866-294-9244 Tel.: 909-752-3074 Winplus Europe Tel.: 44-1223-919711 Winplus Australia Tel.: 61-3-8727-7600 Winplus Asia Tel.: 852-2798-8932 You can also contact us online by visiting www.winplus.com for more information about the product. - Page 19 FCC/IC’s RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. App View and Solar-Powered Parking Sensor BT56485 / BT56485F Responsible Party: Winplus North America Inc. 820 South Wanamaker Avenue, Ontario, CA 91761...
- Page 20 NORTH AMERICA 820 South Wanamaker Avenue, Tel: 866-294-9244 Ontario, CA 91761 Fax: 310-496-2740 EUROPE The Officers’ Mess Business Centre, Tel: 44-1223-919711 Royston Road, Duxford, Cambridgeshire, CB22 4QH 6 Prospect Place, Boronia Victoria, AUSTRALIA Tel: 61-3-8727-7600 Australia, 3155 Fax: 61-3-9720-4165 ASIA Suites 6-11, 7th Floor, Corporation Park, Tel: 852-2798-8932 11 On Lai Street, Shatin, N.T., Hong Kong...
