9 Microphone
10 USB port
PTT(Push-To-Talk)
11
Key
No. Name
12 Laser scanner
X-431 HTT Professional Automotive Diagnosis Handset
 To capture the current screen with short
press.
 To launch camera with long press.
To retrieve it in search engine.
To connect the included power adaptor for
charging the handset or connect to the PC
for data transmission.
It is only available on the X-431 HTT which
is equipped with this module. It is currently
disabled and reserved for future use.

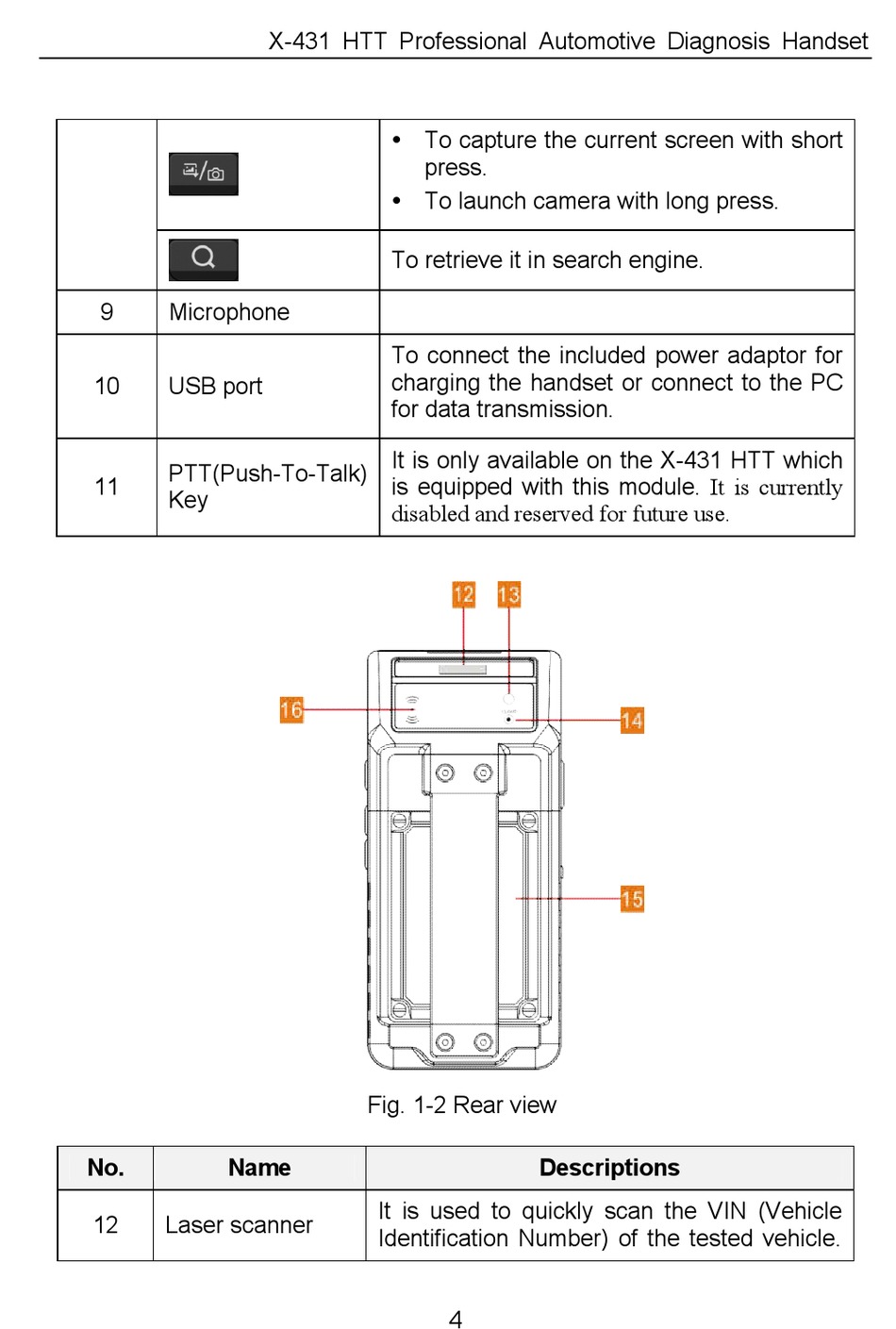

Fig. 1-2 Rear view
It is used to quickly scan the VIN (Vehicle
Identification Number) of the tested vehicle.
Descriptions
4
