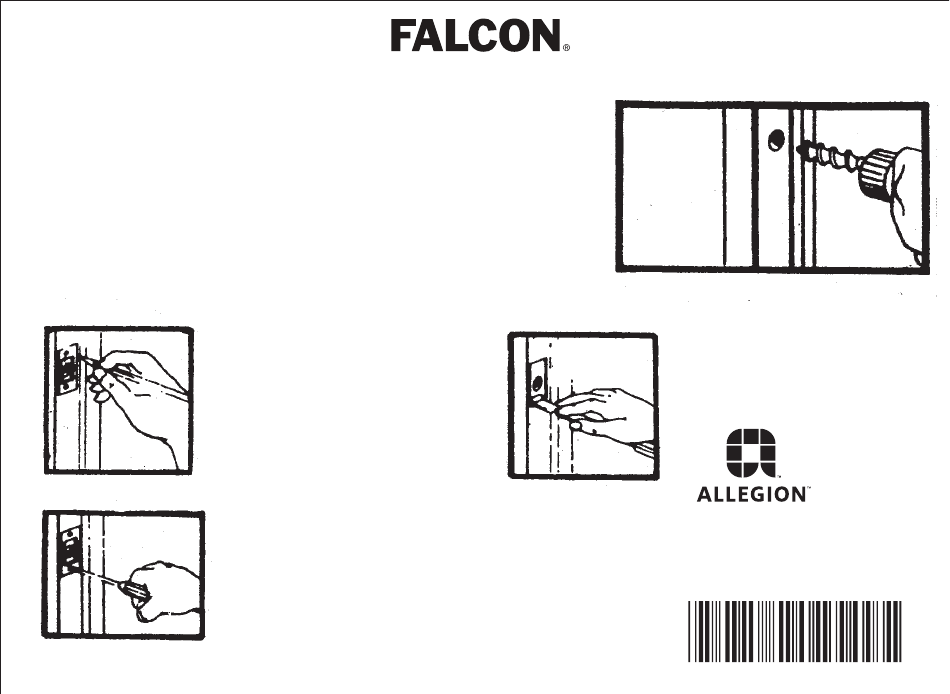

Allegion Falcon Security Strike Installation

A: Mark the corners of

the deadbolt with crayon

or grease pencil. Retract

deadbolt and close door.

Throw deadbolt firmly

against jamb to transfer

markings.

C: Place strike on jamb,

centering over hole and

parallel to edge of frame.

Mark outline and remove

strike.

E: Install strike with screws

provided. Put 3" long screws

closest to door stop. Predrill

¹⁄₈" diameter holes. Lubrication

of screws recommended.

Security Strike Installation

B: Bore 1" diameter hole

1¹⁄₈"

deep,

centered

between the markings.

Caution: Deadbolt will

not function correctly if

hole is too shallow.

D: Chisel cutout ³⁄₃₂" deep.

Printed in U.S.A.

030289-000-70 Rev. 10/14-d
