Kramer KDS-8-MNGR Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

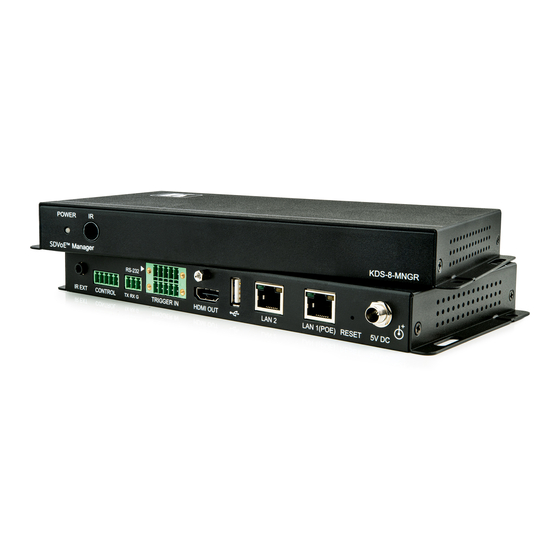

KDS-8-MNGR SDVoE Manager
1 Power adapter and cord

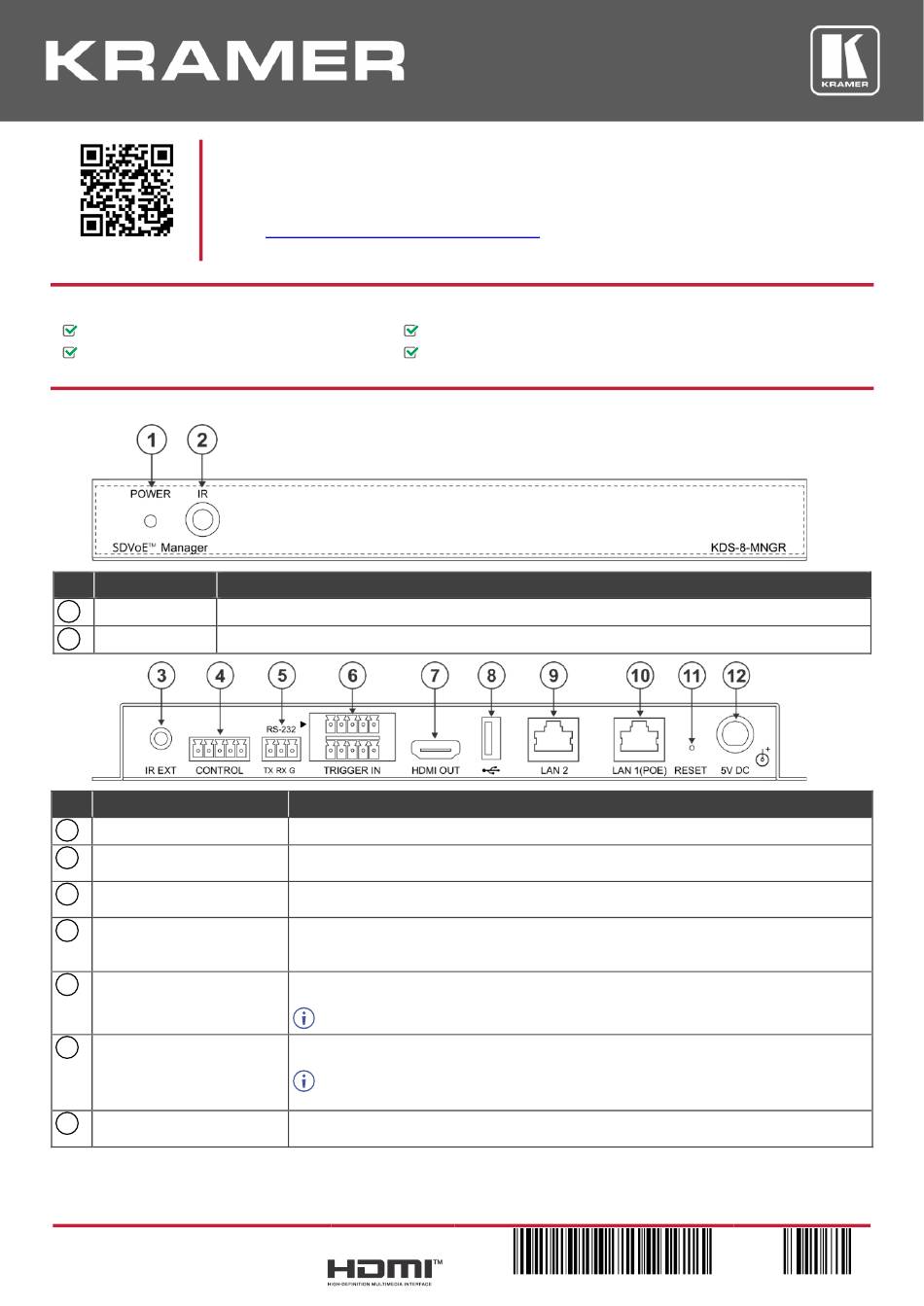

Step 2: Get to know your KDS-8-MNGR

# Feature Function
POWER LED This LED illuminates to indicate the unit is on and receiving power.
1
IR Window For future use.
2
# Feature
IR EXT Port
3
CONTROL 5-pin Terminal
4
Block Connector
RS-232 3-pin Terminal Block
5
Connector
TRIGGER IN 10-pin Terminal
6
Block Connector
HDMI OUT Port
7
USB Port
8
LAN 2 Port
9
KDS-8-MNGR Quick Start
KDS-8-MNGR Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/KDS-8-MNGR
firmware upgrades are available.
Function
For future use.
For future use.
Connect to a PC, laptop or other serial control device with a 3-pin adapter cable, to control
the unit via RS-232.
Connect any device with trigger switch functionality such as window security alarms, motion
detectors, door switches, etc.
Each of the 8 trigger inputs will activate the associated macro (1 to 8) when triggered.
Connect to a standard HDMI™ display to view the unit's current status information and
access the WebGUI directly without a PC.
HDMI output is locked to a resolution of 1080p@60Hz.
Connect a USB mouse and keyboard to control the unit's WebGUI displayed on the HDMI
output port. Firmware update via USB is also supported.
Specialized USB control devices, such as a touch panel, should be connected
before the unit is powered on.
Connect directly, or through a network switch, to your PC/ laptop to control the unit via
WebGUI/Telnet.
KDS-8-MNGR for the first time.
to download the latest user manual and check if
1 Quick start guide
1 Rubber foot square
P/N: 2 9 0 0 - 3 0 1 4 5 9 QS Rev: 2
