Scan for full manual
Step 1: Check what's in the box

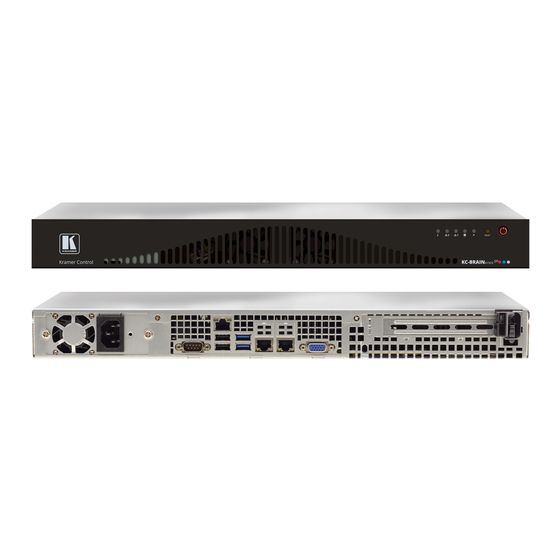

KC-BRAINware-50
Kramer Control server
2 Power cords (US + European)
Step 2: Get to know your KC-BRAINware-50
#
Feature
1
Indicator LEDs
2
Reset Button
3
Power Button
4
Power Socket
5
RS-232 9-pin D-sub Connector
6
USB 2.0 Ports (2)
7
IPMI (Intelligent Platform Management
Interface ) LAN RJ-45 Connector
8
USB 3.0 Ports (2)
9
LAN 1 ETHERNET RJ-45 Connector
10
LAN 2 ETHERNET RJ-45 Connector
11
VGA 15-pin HD Port
KC-BRAINware-50 Quick Start
KC-BRAINware-50 Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/KC-BRAINware-50
firmware upgrades are available.
1 VGA to HDMI™ cable adapter
1 Quick start guide
Function
Use to reboot the system.
Use to toggle setting the device to standby mode / turning the device on.
To turn the power off, disconnect the power connector from the mains.
Connect to the power cord and to the mains electricity.
Connect to a system controller.
Connect to a keyboard and mouse (if required)
N/A
Connect to USB devices.
Connect to the Ethernet.
Connect to the Ethernet.
Connect to a display.
KC-BRAINware-50
for the first time.
to download the latest user manual and check if
Flashes to indicate fan failure.
Lights continuously to indicate system overheat.
Flashes when there is network activity on LAN port 2.
Flashes when there is network activity on LAN port 1.
Flashes to indicate hard drive activity.
Lights when the device is powered.
P/N: 2 9 0 0 - 3 0 1 3 3 5 QS
1 Set of rack ears
Rev: 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer KC-BRAINware-50
Summary of Contents for Kramer KC-BRAINware-50
- Page 1 KC-BRAINware-50 Kramer Control server 1 Set of rack ears 2 Power cords (US + European) 1 Quick start guide Step 2: Get to know your KC-BRAINware-50 Feature Function Indicator LEDs Flashes to indicate fan failure. Lights continuously to indicate system overheat.
- Page 2 • Reliable earthing of rack-mounted equipment should be maintained. Step 4: Connect the inputs and outputs Always switch OFF the power on each device before connecting it to your KC-BRAINware-50. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to KC-BRAINware-50.
