Kramer KC-BRAINware-25 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
KC-BRAINware-25
1 Power Adapter (19V DC)

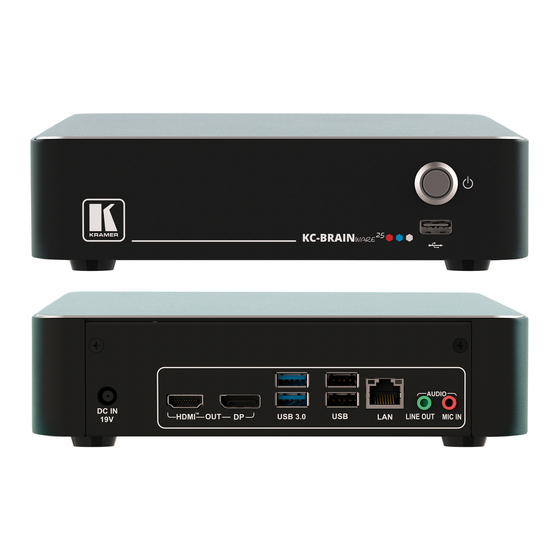

Step 2: Get to know your KC-BRAINware-25
# Feature
1 Power Button
2 USB 2.0 Connector
3 DC IN 19V Connector
4 HDMI™ OUT Connector
5 DP OUT Connector
6 USB 3.0 connectors
7 USB 2.0 connectors
8 LAN RJ-45 Connector
9 AUDIO LINE OUT 3.5mm Mini Jack
MIC IN 3.5mm Mini Jack
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount KC-BRAINware-25
Install KC-BRAINware-25 using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/KC-BRAINware-25).
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
KC-BRAINware-25 Quick Start
KC-BRAINware-25 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/KC-BRAINware-25
firmware upgrades are available.
Function
Press to turn the unit on and off.
Connect to a computer for upgrading firmware or connect to a USB device.
Connects to the 19V DC power adapter.
Connect to an HDMI display.
Connect to a DisplayPort display.
Connect to up to 2 USB devices.
Connect to up to 2 USB devices.
Connect a Local Area Network (LAN) cable
Connect to an unbalanced stereo audio acceptor.
Connect to a microphone.
KC-BRAINware-25 for the first time.
to download the latest user manual and check if
4 Rubber feet
P/N: 2 9 0 0 - 3 0 1 3 3 4 QS
1 Quick start guide
Rev: 2
