Step 1: Check what's in the box
KC-Virtual Brain1 Control Server
1 Power supply (12V DC) with adapters for US, UK, and EU

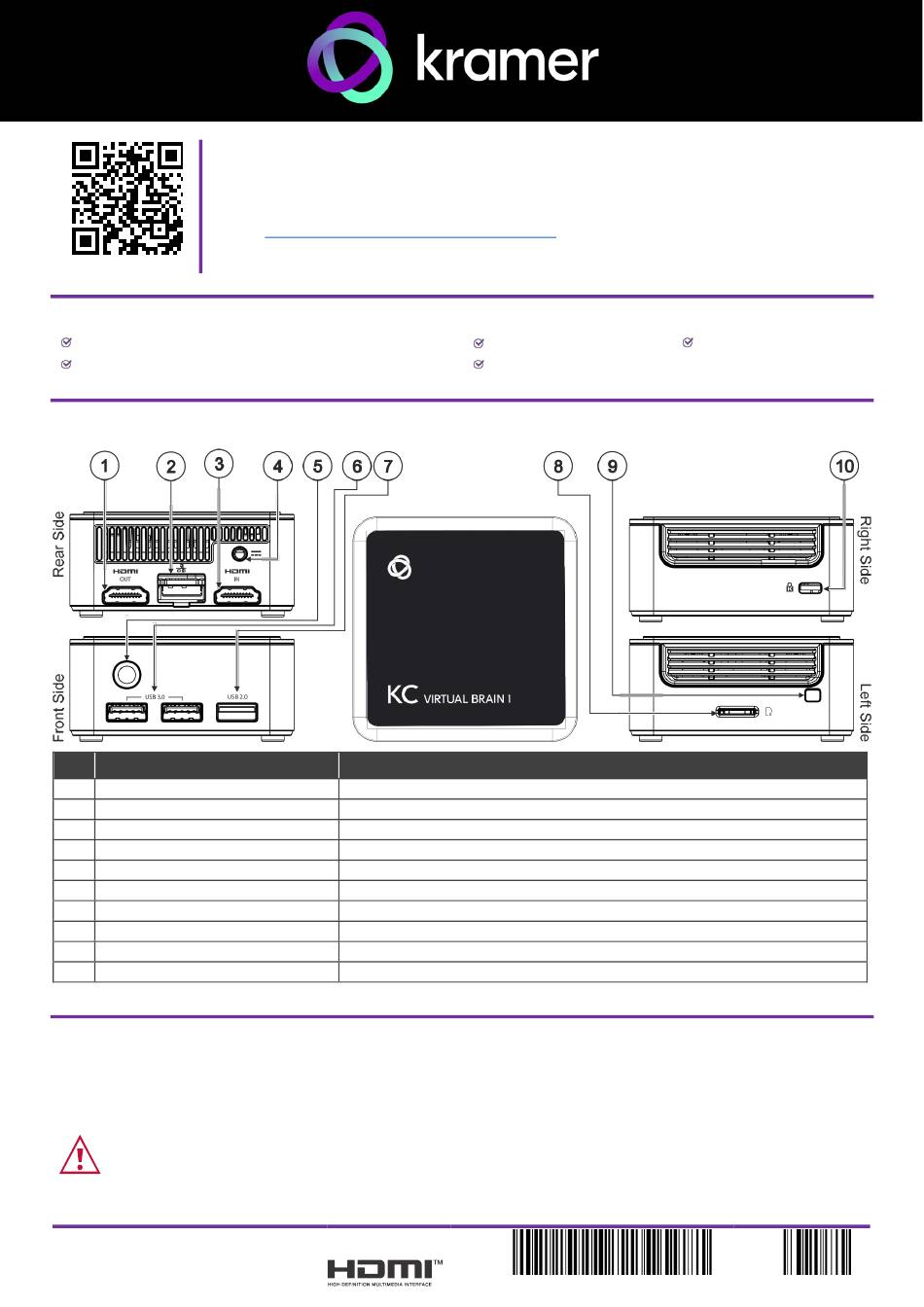

Step 2: Get to know your KC-Virtual Brain1
#
Feature
1
HDMI OUT Connector
2
RJ-45 Port
3
HDMI IN Connector
4
Power Connector
5
Power Button with LED
6
USB 3.0 Connectors (x2)
7
USB 2.0 Connector
8
Micro SD Card Slot
9
N/A
10
Lock Anchor
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount KC-Virtual Brain1
Install KC-Virtual Brain1 using one of the following methods:
•
Place
KC-Virtual Brain1
•
When mounting on a wall, install the VESA mounting plate with 4 screws, insert the 2 hand-tightened screws into the
bottom of the device, and mount the device on the mounting plate using the 2 screws.
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible with the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used to avoid circuit overloading.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
KC-Virtual Brain1 Quick Start
KC-Virtual Brain1 Quick Start Guide
This guide helps you install and use your KC Virtual Brain1 for the first time.
Go to
www.kramerav.com/downloads/KC-Virtual Brain1
firmware upgrades are available.
Function
Connect to an HDMI sink.
Connect to a LAN (default mode).
Connect to an HDMI source.
Connect to the 12V DC power supply.
Press to power ON or turn OFF the device.
Connect to USB devices, for example, a keyboard and a mouse.
Connect to a USB device, for example, a keyboard or mouse.
Not in use.
Use to lock the device to the desk.
on a flat surface.
to download the latest user manual and check if
1 VESA mounting bracket
1 VESA screw set
P/N: 2 9 0 0 - 3 0 1 6 5 8 QS
1 Quick start guide
Rev: 2
