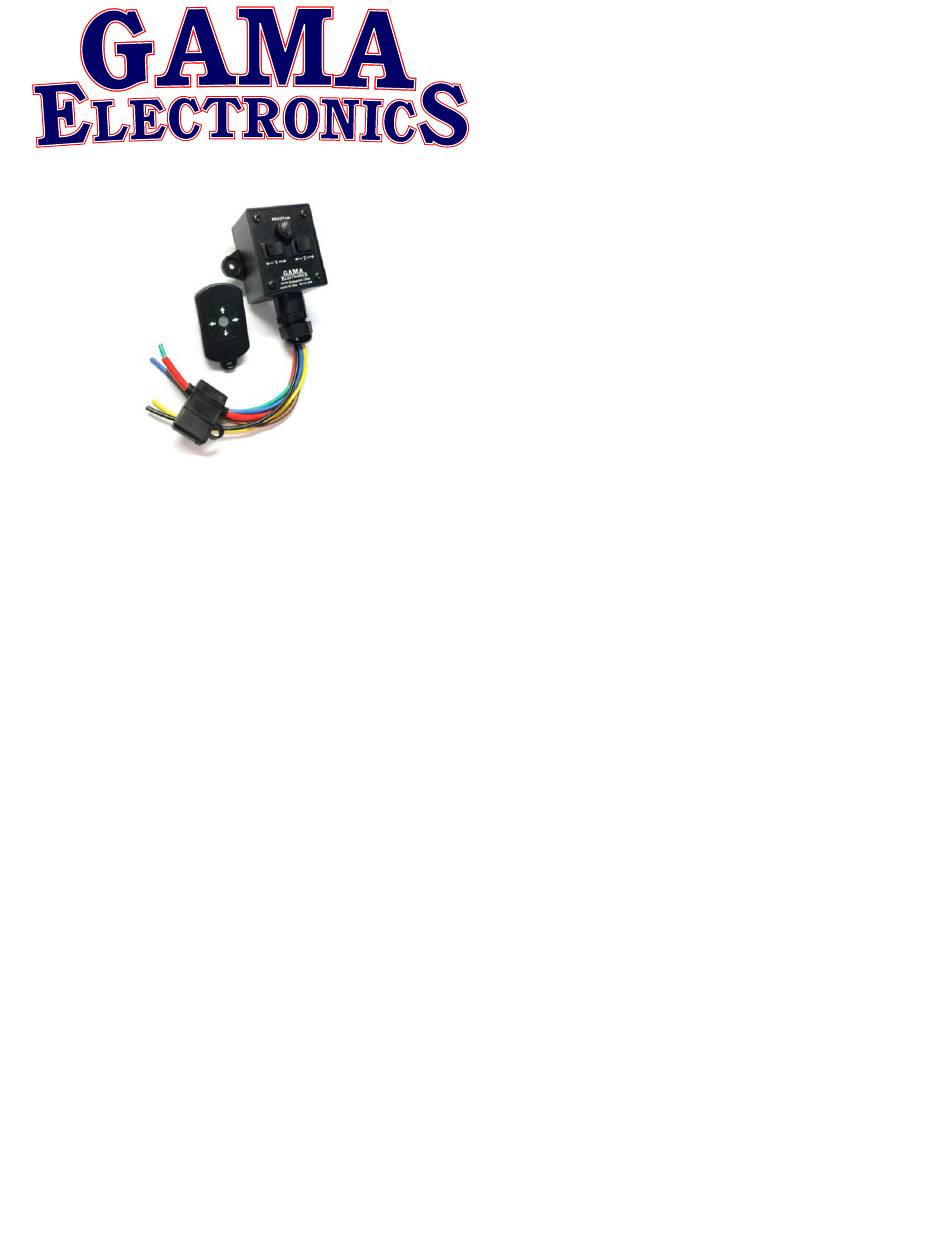

GAMA Electronics RF12V-2PR-ASL Instruction Manual

WWW.GAMAINC.COM

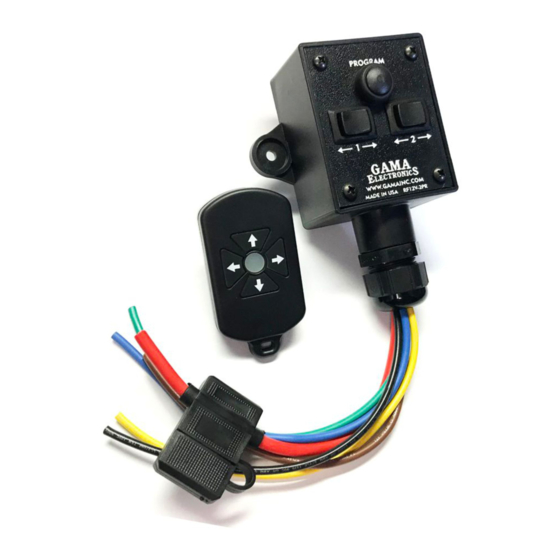

The RF12V-2PR-ASL remote control operates at a fixed frequency of 340MHz. The input voltage is 12VDC and the control provides

two polarity reversing outputs. Up to 30, four-button keyfob transmitters (Model KF340-4A-WP) can be used to activate the

receiver's relays. Input power and the two polarity reversing output connections are provided by wire leads; a 30A ATC type fuse

holder is supplied on the +12VDC input power wire.

Each transmitter has a unique address that is transmitted when a button is pressed. A "program" switch with LED is provided on the

receiver to program the transmitter(s) address into the receiver's memory. The program switch/LED indicates the receiver's

programming status and illuminates when either relay is energized. The receiver is encased in a small, waterproof enclosure. The

operating range is at least 100 ft.

Maximum ratings: Power for the receiver can be in the range of 10VDC to 15VDC. The receiver is reverse polarity protected. The

relay contacts are rated at 30A @ 13.8VDC. The control can provide 30A maximum between the two outputs.

Power Consumption: 10mA when the relays are de-energized, 45mA when each relay is energized.

Momentary and Latching Output: The remote control has two modes of operation, momentary or latching. The momentary output

of the receiver will be active for as long as the transmitter switch is depressed and will return off when the switch is released. For

latching output, the output will turn on and stay when the transmitter switch is pressed, pressing the same transmitter switch again

will turn off the output. Each output can be programmed for momentary or latching. For details on how to configure the unit for

momentary or latching output, please see the programming instructions on page 2.

RF12V-2PR-ASL

Instruction Manual

Included in this Kit:

(1) RF340-4PR-ASL Receiver

(1) 4-Button Transmitter

- Additional Transmitter KF340-4A-WP

- Package of 6 A23 12V Alkaline Batteries A23-6

- Clear Protective Transmitter Pouch ZLB-67

Page 1 REV A 06/30/20

Table of Contents

Do you have a question about the RF12V-2PR-ASL and is the answer not in the manual?

Page 1 - Clear Protective Transmitter Pouch ZLB-67 The RF12V-2PR-ASL remote control operates at a fixed frequency of 340MHz. The input voltage is 12VDC and the control provides two polarity reversing outputs. Up to 30, four-button keyfob transmitters (Model KF340-4A-WP) can be used to activate the receiver’s relays.
Page 2 RF12V-2PR-ASL Instruction Manual WWW.GAMAINC.COM Programming Instructions Each transmitter has its own unique internal address that is transmitted whenever a switch is pressed. The receiver needs to be programmed to respond only to transmitters it is intended to operate with. The following steps configure the receiver to operate with a particular transmitter(s).
Page 3 RF12V-2PR-ASL Instruction Manual WWW.GAMAINC.COM Wiring Diagram **Switch 1 controls Motor 1, Switch 2 controls Motor 2** 12VDC Power Wiring: Red: 12V IN Black: Ground In Blue/Brown: Motor 1 Out Yellow/Green: Motor 2 Out Fused for 30 Amps **Warning: Do NOT connect input power to motor wires.
Page 4 WWW.GAMAINC.COM Troubleshooting All remote-control systems shipped by GAMA Electronics are 100% functionally tested just prior to shipment. If your RF remote control system does not work out of the box, stops working or functions intermittently please take the following steps to resolve common issues. Please note that you must be 2-3 feet away from the receiver when operating the remote control.
