Colorful iGame Z370 Vulcan X Manual page 34

iGame Z370 Vulcan X

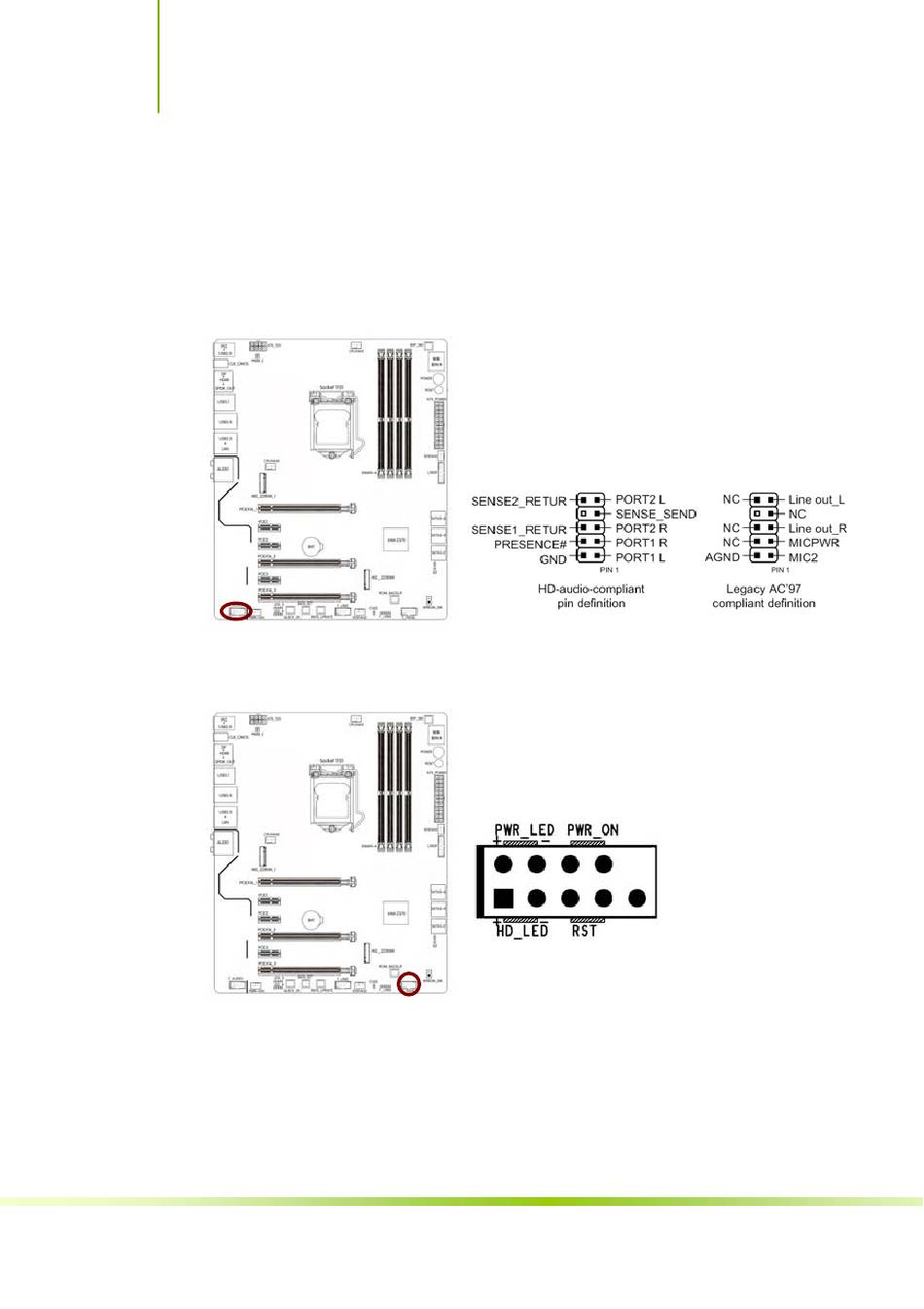

Front panel audio connector
This connector is for a chassis-mounted front panel audio I/O module
that supports either High Definition Audio or AC`97 audio standard.
Connect one end of the front panel audio I/O module cable to this
connector.
System panel connector
This connector supports several chassis-mounted functions.
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis
power LED cable to this connector. The system power LED lights up
when you turn on the system power, and blinks when the system is in
sleep mode.
28
