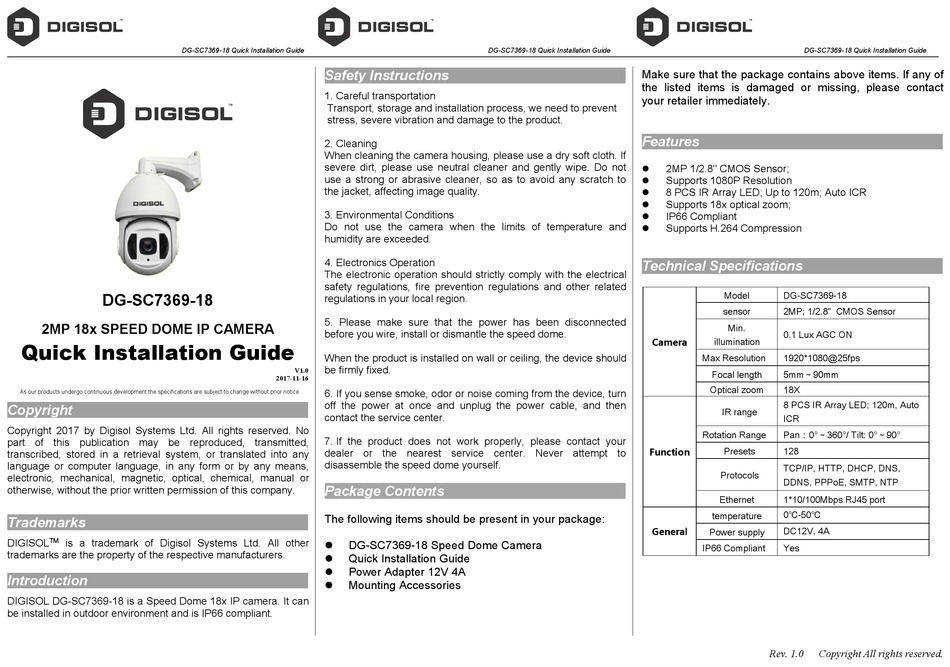

DG-SC7369-18 Quick Installation Guide
DG-SC7369-18
2MP 18x SPEED DOME IP CAMERA
Quick Installation Guide
As our products undergo continuous development the specifications are subject to change without prior notice
Copyright
Copyright 2017 by Digisol Systems Ltd. All rights reserved. No
part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company.
Trademarks
DIGISOL TM is a trademark of Digisol Systems Ltd. All other
trademarks are the property of the respective manufacturers.
Introduction
DIGISOL DG-SC7369-18 is a Speed Dome 18x IP camera. It can
be installed in outdoor environment and is IP66 compliant.
Safety Instructions
1. Careful transportation
Transport, storage and installation process, we need to prevent
stress, severe vibration and damage to the product.
2. Cleaning
When cleaning the camera housing, please use a dry soft cloth. If
severe dirt, please use neutral cleaner and gently wipe. Do not
use a strong or abrasive cleaner, so as to avoid any scratch to
the jacket, affecting image quality.
3. Environmental Conditions
Do not use the camera when the limits of temperature and
humidity are exceeded.
4. Electronics Operation
The electronic operation should strictly comply with the electrical
safety regulations, fire prevention regulations and other related
regulations in your local region.
5. Please make sure that the power has been disconnected
before you wire, install or dismantle the speed dome.
When the product is installed on wall or ceiling, the device should
be firmly fixed.
V1.0
2017-11-16
6. If you sense smoke, odor or noise coming from the device, turn
off the power at once and unplug the power cable, and then
contact the service center.
7. If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the speed dome yourself.
Package Contents
The following items should be present in your package:
DG-SC7369-18 Speed Dome Camera

Quick Installation Guide

Power Adapter 12V 4A

Mounting Accessories

DG-SC7369-18 Quick Installation Guide
Make sure that the package contains above items. If any of
the listed items is damaged or missing, please contact
your retailer immediately.
Features
2MP 1/2.8" CMOS Sensor;

Supports 1080P Resolution

8 PCS IR Array LED; Up to 120m; Auto ICR

Supports 18x optical zoom;

IP66 Compliant

Supports H.264 Compression

Technical Specifications
Camera
Function
General
DG-SC7369-18 Quick Installation Guide
Model DG-SC7369-18
sensor 2MP; 1/2.8" CMOS Sensor
Min.
0.1 Lux AGC ON
illumination
Max Resolution 1920*1080@25fps
Focal length 5mm～90mm
Optical zoom 18X
8 PCS IR Array LED; 120m, Auto
IR range
ICR
Rotation Range Pan：0°～360°/ Tilt: 0°～90°
Presets 128
TCP/IP, HTTP, DHCP, DNS,
Protocols
DDNS, PPPoE, SMTP, NTP
Ethernet 1*10/100Mbps RJ45 port
0℃-50℃
temperature
DC12V, 4A
Power supply
IP66 Compliant Yes
