- Page 1 Megapixel Wireless IP camera with Night Mode & Audio Support V1.0 2016-08-05 As our products undergo continuous development the specifications are subject to change without prior notice ________________________________________________________________________________________________...
- Page 2 Wireless IP camera User Manual COPYRIGHT Copyright 2016 by Smartlink Network Systems Ltd. All rights reserved. Company has an ongoing policy of upgrading its products and it may be possible that information in this document is not up-to-date. Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company.
-
Page 3: Table Of Contents
Wireless IP camera User Manual INDEX 1 Product Information........................4 1-1 Introduction & Safety Information..................4 1-2 Safety Information........................5 1-3Minimum Requirements......................5 1-4 Package Contents........................5 1-5 Camera Hardware Overview....................6 1-6 Camera Setup...........................7 2 Camera Configuration using Yoosee app...................7 3 Advanced Camera configuration using Yoosee app..............11 3-a) Date &... -
Page 4: Product Information
1-1 Introduction and safety information Thank you for purchasing DIGISOL IP cameras!! DG-SC1600W & DG-SC3600W are 1Megapixel Wireless IP camera with IR LED and IR-cut Filter. This camera offers the latest compression technology with a CMOS sensor & a real time image processing hardware. -
Page 5: Safety Information
Installation Guide CD (includes User Manual, QIG, Yoosee app) Tools Package DG-SC1600W: Includes 2 screws & 2 nylon anchors DG-SC3600W: Includes 2 screws, 2 nylon anchors along with mounting bracket DG-SC1600W: USB Power Adapter: 5V, 1A DG-SC3600W: 5V, 2A ... -
Page 6: Camera Hardware Overview

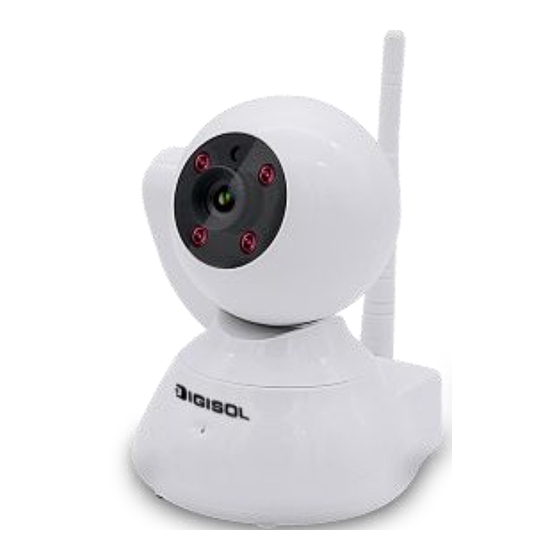

Wireless IP camera User Manual 1-5 Camera Hardware Overview 1) DG-SC1600W Micro SD Slot LED Indicator Camera Lens 1PCS IR Array Reset Button Bracket A) Front View B) Rear View --------------------------------------------------------------------------------------- 2) DG-SC3600W Antenna 4PCS IR Array Camera Lens Micro SD Slot... -
Page 7: Camera Setup
Wireless IP camera User Manual 1-6 Camera Setup Over the WAN HOME 2 Camera Configuration using Yoosee App Please follow the instructions mentioned below to setup your new IP camera using the Yoosee app Download Yoosee app on your smartphone or tablet using the below QR code available on bottom side of an IP camera. - Page 8 Wireless IP camera User Manual The following screen will be displayed. You need to register using either Mobile No. OR Email ID to use this app. In our scenario, we have taken email ID to register for Yoosee app. Once the Email ID is registered, login to the app with same credentials.
- Page 9 Wireless IP camera User Manual After login, it will display the app interface as shown below. Once the camera boot up, it prompt’s a voice message to start configuration. Click on “+” sign>>go to Smartlink>>Click on ‘Hear the connection prompt’, button. The following screen will be displayed.
- Page 10 Wireless IP camera User Manual Once the connection is established, it will prompt the voice message as ‘Wi-Fi configuration is completed’ & you can see the below screen in Yoosee app to set the admin password for IP camera. (By default password is 123) Once the camera is added, double click on it under device list, it will show the IP camera video.
-
Page 11: Advanced Camera Configuration Using Yoosee App
Wireless IP camera User Manual 3 Advanced Camera configuration using Yoosee app You can click on settings icon as highlighted below to configure the advanced settings in Yoosee app. 3-a) Date & time You can set the Date & Time on IP camera using this option in app. -
Page 12: 3-B) Media Setting
Wireless IP camera User Manual You can view the IP camera version by clicking on ‘Device Info’ button. 3-b) Media Setting You can view the Media setting & flip the IP camera view under this tab. -
Page 13: 3-C) Security Settings
Wireless IP camera User Manual 3-c) Security Setting You can view the account password under this tab. 3-d) Network Settings You can view the network settings under this tab. -
Page 14: 3-E) Alarm Settings
Wireless IP camera User Manual 3-e) Alarm Settings Under this tab, you can enable Motions Detection & set the Alarm Message, Buzzer for event triggered by Motion Detection. Once you set the Alarm & Alarm Recording settings, click on lock icon as highlighted below under the Main Window of Yoosee app. - Page 15 Wireless IP camera User Manual If you have set “Receive Alarm” for Motion Detection, it will display the alarm buzzer as shown below on your smartphone whenever motion is triggered by an IP camera. Clicking the highlighted icon will direct you to IP camera live view. If you click icon, it will disable the alarm push message for your smartphone.
-
Page 16: 3-F) Recording Settings
Wireless IP camera User Manual 3-f) Recording Settings You can set the Recording Mode under this tab ( i.e Manual/ Schedule/ Alarm-based Recording). The Micro SD card will be listed here. You can view the Used/ Available capacity of SD card under this tab. -
Page 17: 3-H) Device Update
Wireless IP camera User Manual 3-h) Device Update Under this tab, you can view if there is any update for an IP camera. 3-1) Other Menu In the Main interface of Yoosee app, there are other icons available which are described as below:- You can edit the added IP camera password under this option. - Page 18 Wireless IP camera User Manual You can view the recordings under the highlighted icon: If you have configured Alarm Recording, it will show the messages under this tab.
-
Page 19: 3-2) More Menu
Wireless IP camera User Manual The captured snapshots can be viewed under this tab. 3-2) More Menu Under More tab, following options are displayed:... -
Page 20: 3-2-A) Account
Wireless IP camera User Manual 3-2-a) Account You can bind/ unbind the configured Email/ Phone Account & set the login password under this tab. 3-2-b) Settings You can set the Alarm ring/ Alarm Vibrate for Motion Detection & also can configure Notification bar icon, automatically start option under this tab. -
Page 21: 3-2-C) Update
Wireless IP camera User Manual 3-2-c) Update: You can check the app update under this tab. 3-2-d) About You can check the app details under this tab. -
Page 22: 3-2-E) Sign Out
Wireless IP camera User Manual 3-2-e) Sign Out: Log out Yoosee application. 3-2-f) Exit Exit Yoosee application. -
Page 23: 4Appendix
Wireless IP camera User Manual 4 Appendix 4-1 Specification Type DG-SC1600W DG-SC3600W Sensor ¼” CMOS Sensor Lens 3.6mm, Fixed Lens Min Illumination 0.5Lux 0.3Lux IR Array 1PCS 4PCS IR distance Up to 5m Up to 10m IR-Cut Filter Video Compression H.264... -
Page 24: Troubleshooting
If you're trying to connect to the IP camera from Internet, please make sure the port that IP camera uses is not blocked by firewall or other software / hardware. Contact DIGISOL helpdesk, above solutions do not work. Try a lower resolution. -
Page 25: Glossary
IR LED’s are triggered automatically for better visibility. This product comes with Two Years warranty. For further details about warranty policy and Product Registration, please visit support section of www.digisol.com...
