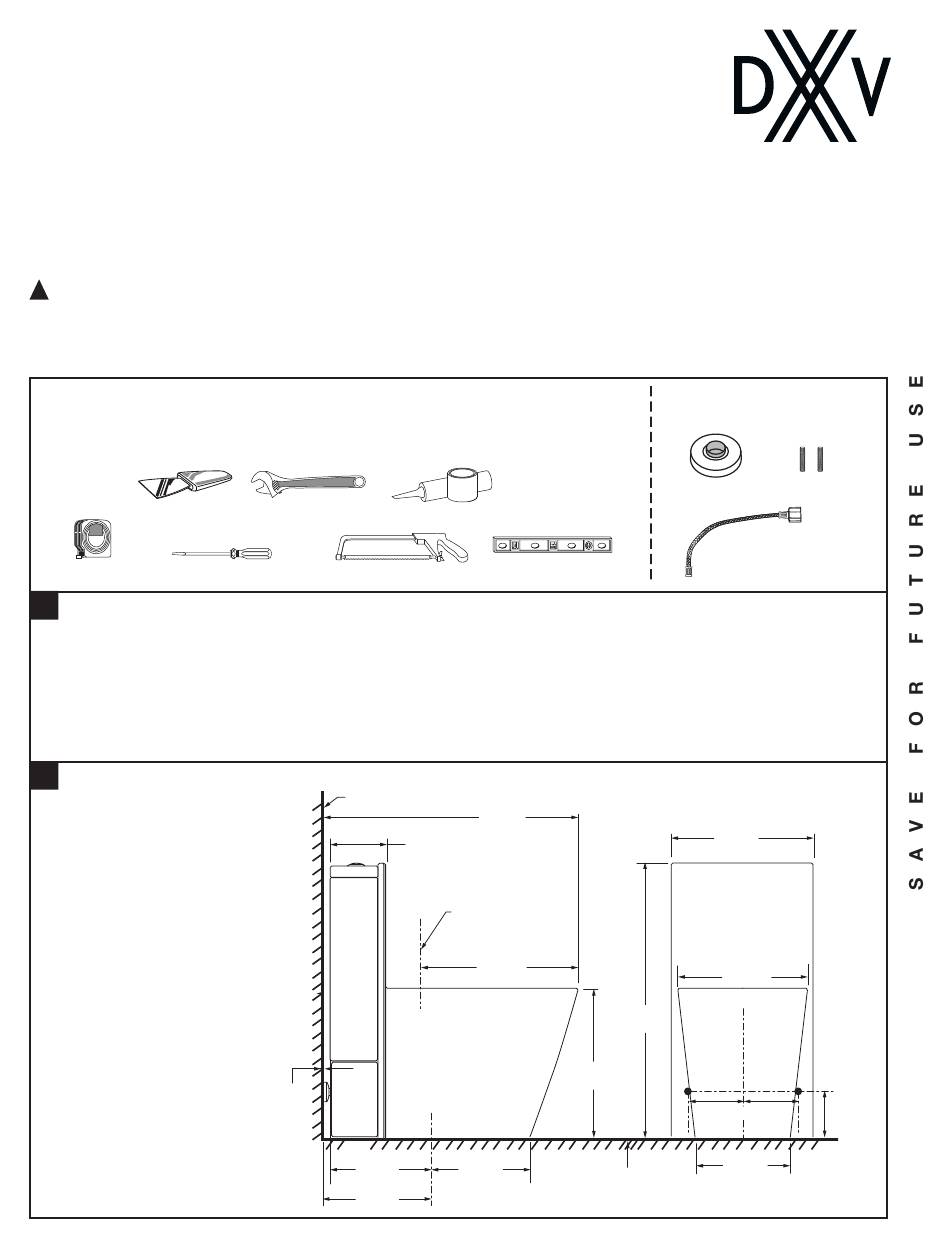

DXV Modulus Right Height D22020A Series Installation Instructions

INSTALLATION INSTRUCTIONS
DXV Modulus
Single Flush, 1-Piece
Concealed Trapway
Right Height , Elongated Model D22020A Series
®
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are
available from hardware and plumbing supply stores. It is essential that the tools
pand materials be on hand before work has begun.
Putty Knife
10'
Tape Measure Regular Screwdriver
1

REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2

ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to
closet flange centerline must
be as listed below:
IMPORTANT: Water supply on the
wall is required at 4 1/2" (114 mm)
from centerline of the toilet and
5" (127 mm) from the finished floor.
(see rough-in). Water supply is
hidden behind the toilet. Water
supply line needs to be hidden
within toilet frame.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
™
Adjustable Wrench
Hacksaw
FINISHED
WALL
6-1/8"
(155 mm)
13/16"
(20 mm)
11-1/4"
(285 mm)
12"
(305 mm)
Sealant
Level
28-1/4"
(717 mm)
C/L OF SEAT POST
HOLES
18-1/2"
(470 mm)
(785 mm)
16-1/2"
(419 mm)
10-15/16"
FINISHED FLOOR
(277 mm)
- 1 -
PARTS NOT INCLUDED
Wax Ring Closet Bolts
Flexible Supply Tube
15-9/16"
(396 mm)
14"
(356 mm)
31"
4-1/2" 4-1/2"
OR
(114 mm) (114 mm)
10-1/2"
(267 mm)
7302254-100 Rev. B (8/16)
WATER
SUPPLY
5"
(127 mm)
