INSTALLATION INSTRUCTIONS
Wyatt
®
VorMax
®
Right Height
2-Piece Toilet - 1.28 gpf / 4.8 Lpf
D2220AA121: Wyatt VorMax Right Height Elongated
HET Combo - Left-Hand Trip Lever
D2220AA122: Wyatt VorMax Right Height Elongated
HET Combo - Right-Hand Trip Lever
D23363A104: DXV VorMax Right Height Elongated Bowl
D24370A121: DXV VorMax Tank - Left-Hand Trip Lever
D24370A122: DXV VorMax Tank - Right-Hand Trip Lever
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE
LOCAL PLUMBING AND BUILDING CODES

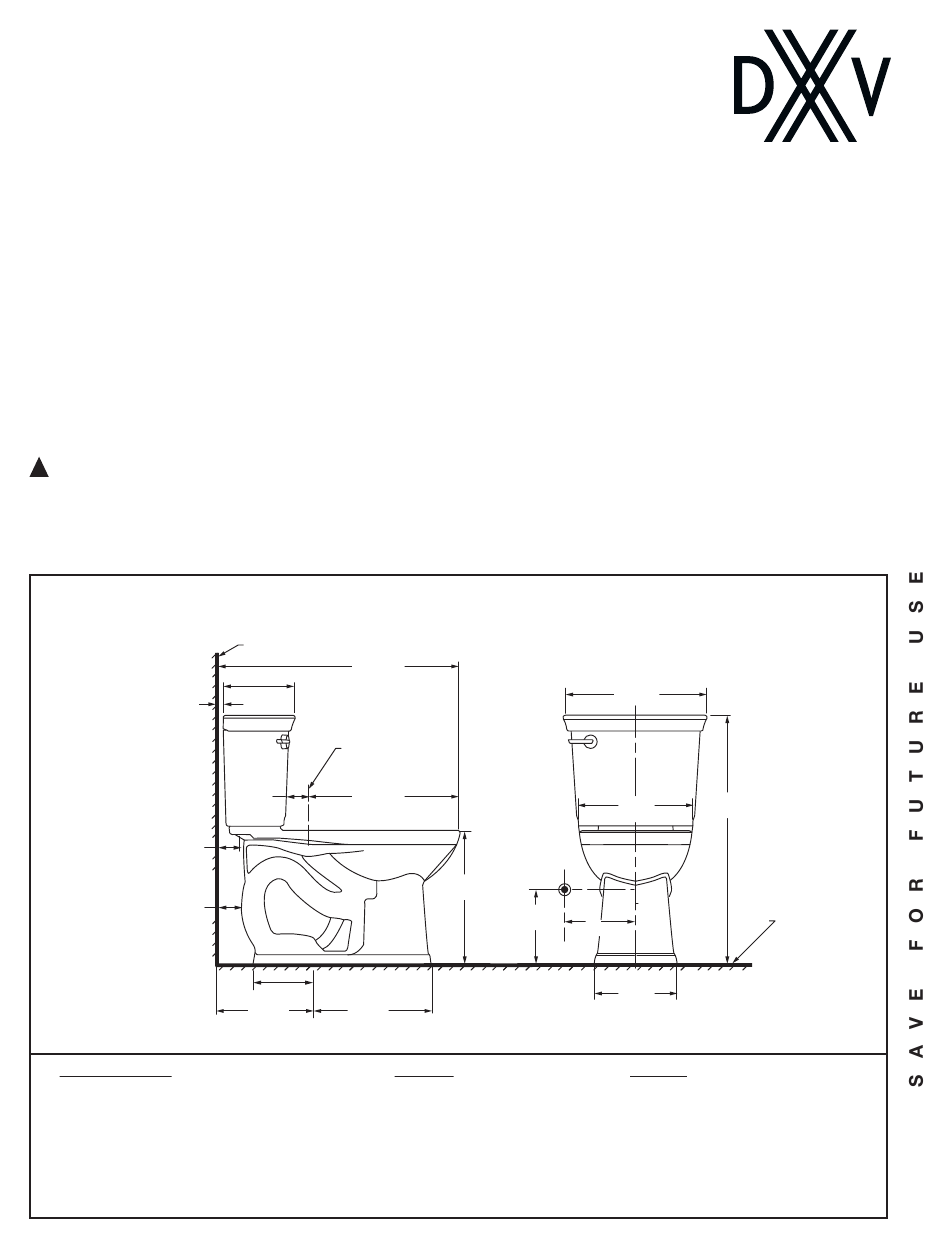

ROUGHING-IN DIMENSIONS:
• For reference
13/16"
(21 mm)
3-1/8"
(80 mm)
3-3/16"
(78 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
®
Elongated
NOTE: Distance from wall to closet flange centerline must be as listed below:
FINISHED WALL
30-3/16"
(767 mm)
8-7/8"
(225 mm)
C/L OF SEAT POST
HOLES 5-1/2"
(140 mm) CENTERS
18-1/2"
3-1/8"
(470 mm)
(80 mm)
7-7/16"
(189 mm)
12"
14-9/16"
(305 mm)
(370 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
17-5/8"
(448 mm)
(355 mm)
16-1/2"
(419 mm)
8"
6"
(203 mm)
(152 mm)
10-1/4"
(261 mm)
- 1 -
30-3/4"
14"
(781 mm)
FINISHED
FLOOR
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
7302352-100 (12/17)
Advertisement
Table of Contents
Related Manuals for DXV Wyatt VorMax Right Height Elongated D2220AA122
Summary of Contents for DXV Wyatt VorMax Right Height Elongated D2220AA122
- Page 1 D24370A122: DXV VorMax Tank - Right-Hand Trip Lever Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
- Page 2 RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores. It is essential that the tools and materials be on hand before work is begun. Closet Bolts Sealant Putty Knife...
- Page 3 Hand tighten only. Do not overtighten. Apply weight evenly. Do not move after placement. Water tight seal may break. Gaskets Tighten handles alternately until the tank contacts the front and back of the bowl achieving china-to-china contact. NOTES: To ease installation, push down on the top of the tank while tightening handles.
- Page 4 Water Level Adjustment Knob Trip Lever Rod Overflow Tube Approximate Water Level Float Cup Adjustable Screw Fill Valve Or Water Control • Adjust water level to level indicated on tank by turning water level adjustment knob to move float cup up or down. •...
- Page 5 IMPORTANT: DXV does not recommend that the tank components be switched out with anything other than the furnished specified components as the performance could be affected. Any alterations made using anything other than the specified components could negatively impact the flush performance and will void the warranty.
