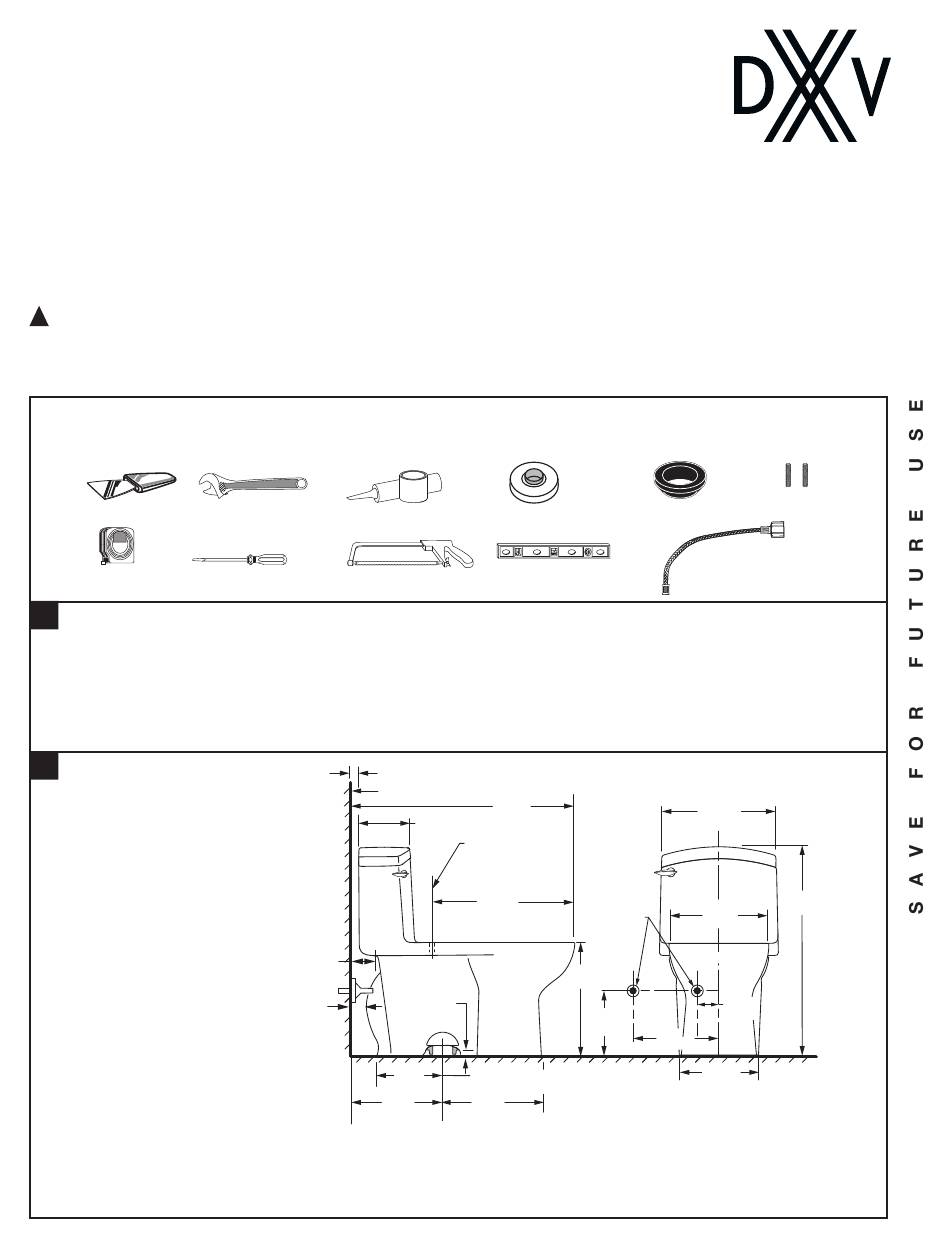

INSTALLATION INSTRUCTIONS
Lowell
™
One-Piece Toilet — 1.28 gpf / 4.8 Lpf
Model# D22010C104.415
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench
Putty Knife
10'
Tape Measure Regular Screwdriver
1

REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2

ROUGHING-IN DIMENSIONS:

NOTE: Distance from wall to
closet flange centerline must
be as listed below:
IMPORTANT: Water supply on the wall is required at 3-3/4" (95mm) or 9" (299mm) from centerline of the toilet (see rough-in).
First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation. The second
suggested position is next to the toilet. Between these two positions, the space for the supply between wall and toilet is
limited to 4-1/8" (105mm). In this case, check your supply and hose dimensions.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Sealant
Hacksaw
3/4" (18 mm)
FINISHED WALL
7-1/16"
(180 mm)
C/L OF SEAT POST
MTG HOLES ON
5-1/2" (140 mm) CTRS
3-5/16"
(85 mm)
11/16"
(17mm)
1-15/16"
(49 mm)
8-3/4"
C/L OF OUTLET AND
(223 mm)
TOILET MTG BOLTS
12" 13-1/8"
(305 mm) (333 mm)
- 1 -
Wax Ring
Level
29-11/16"
(754 mm)
18-1/2"
SUPPLY AS
(470 mm)
REQUIRED
(position 1
or
position 2)
15"
(381 mm)
7"
(178 mm)
(229 mm)
Closet Bolts
Gasket
Flexible Supply Tube
15-3/8"
(391 mm)
27-11/16"
(703 mm)
14"
(356 mm)
C/L
3-3/4"
(95 mm)
9"
10-9/16"
(269 mm)
7302328-100 (3/17)
