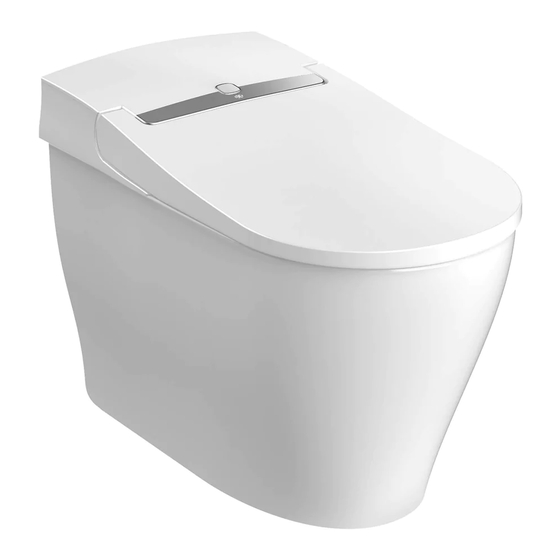

AT200® LS SPALET®
Questions and Answers
Warranty
What is the warranty?
There is a three year warranty on all parts of the SpaLet for residential applications and a two year warranty
on parts for commercial applications.
Installation
Is a professional plumber required for installation?
The SpaLet toilet can be installed but professional installation is recommended especially if this is your first
toilet install. The installation is similar to a regular toilet but uses a drain socket and a gasket different from
a traditional wax ring. We have designed this for an easier installation but it depends on your technical
expertise and comfort level.
What type of power is needed?
AC120V GFCI outlet. The seat consumes 1300W +/- 10%
What type of water pressure is needed?
Minimum water pressure: 0.1 MPa (1.0 bar): 14.5 psi Flow pressure
Maximum water pressure: 0.75 MPa (7.5 bar): 109 psi Hydrostatic pressure
What is the heater capacity?
48W
What is the warm air heater capacity?
500W
What is the air volume?
0.3 m3 /min
How much electricity does this SpaLet toilet consume?
The AT200 LS has a rated power consumption of 850 W (environment 20°C/68°F, water 15°C/59°F)
Do you need to buy anything else for installation?
Items needed for installation include standard household tools, drill and bits, caulking and tape
Components
What comes with the product?
The following parts are included in the product:
SpaLet Toilet:
• Bidet seat and water supply hose
• Water shutoff valve and clip
• Remote control
• Screws, anchors, and AA batteries (for remote control)
• Anti-theft nut, screw, and washer (for remote control)
• Water drain socket
• Securing member
• Screw, washer, anchor, screw with cap
• Paper template
• Installation support base
• Front securing member/adhesive material
• Manual set
• Wall protection cover
Is the remote included in the product?
The remote and batteries are included with the purchase of the AT200 LS SpaLet.
©2018 AS Americas, Inc.
1
(Continued on next page)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV LS SPALET AT200
Summary of Contents for DXV LS SPALET AT200
- Page 1 AT200® LS SPALET® Questions and Answers Warranty What is the warranty? There is a three year warranty on all parts of the SpaLet for residential applications and a two year warranty on parts for commercial applications. Installation Is a professional plumber required for installation? The SpaLet toilet can be installed but professional installation is recommended especially if this is your first toilet install.
- Page 2 Dimensions What is the size of the seat opening? The inner diameter of the seat is 7-7/8" (200 mm) wide and 11-53/64" (306 mm) long. How long is the power cord? Effective length 39" or 1.0m. What are the dimensions for the toilet? Can I replace a standard toilet? The dimension of the toilet is 14-3/4"...
- Page 3 Functions and Features (continued) How long is the drying cycle? The drying cycle is approximately 4 minutes but it can be stopped at any time by pressing the stop button. How many different water temperature settings are available? There are 6 different levels of water temperature settings on the AT200® LS. How many heated seat temperature settings are available? There are 6 different levels of heated seat settings on the AT200 LS.
- Page 4 Functions and Features (continued) Is there a child lock out feature? There is no specific child lock out feature but we do have a seat sensor that must be covered to operate the bidet function. The bidet will not operate unless both the sensor is covered and a user initiates a cleansing cycle simultaneously.
- Page 5 How to Use (continued) Can you customize the settings? Y es, you can customize your cleaning experience by adjusting the water control settings, water pressure settings (6 levels), water temperature settings (6 levels) plus the massage and oscillation features to maximize your cleansing experience. Can you save the customized settings? No, You cannot save customized user settings as in user 1, user 2 but the settings will stay the same until they are manually changed.
Need help?
Do you have a question about the LS SPALET AT200 and is the answer not in the manual?
Questions and answers
Three blue lights. What are is three blue lights under the green power light mean? How do I turn them on and off? My other DXV AT200LS doesn’t have the lights on.
The three blue lights under the green power light on the DXV LS SPALET AT200 indicate that the Plasmacluster Ion function is turned on. This function helps reduce odors and improve air quality.
To turn the Plasmacluster Ion function on or off:
1. Press the Set/Next button repeatedly until the Setting 3 screen appears.
2. Press the button below Plasmacluster Ion repeatedly to select the desired setting:
- On: The function is activated.
- Off: The function is deactivated.
This answer is automatically generated
@Mr. Anderson GREAT! Thank you for that answer.
Hi, The top lid to the seat on our AT200 LS Spa Let DXV is shuddering as it opens and only opens halfway. I tried removing and cleaning the unit and it didn't do anything. The seat is opening fine, it is just the lid that is struggling. Any suggestions? Thanks!
The troubleshooting steps for a shuddering top lid on the DXV AT200 LS SpaLet that only opens halfway are:
1. Check if Auto open/close is set to Off.
➤ Set Auto open/close to "Only lid" or "Seat lid" (Page 20).
2. Verify that the SpaLet seat lid is assembled correctly.
➤ Assemble the SpaLet seat lid correctly (Page 40).
3. Inspect the upper body sensor for dirt or obstructions.
➤ Clean the sensor or remove any items blocking it.
4. Make sure the upper body sensor is not exposed to direct sunlight.
➤ Avoid placing the SpaLet in direct sunlight.
This answer is automatically generated
