INSTALLATION INSTRUCTIONS
DXV Belshire
Wall Hung Toilet with Seat
Model D23050A000.415
Thank you for selecting DXV. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES.
For rough-in dimensions, see spec page or web site

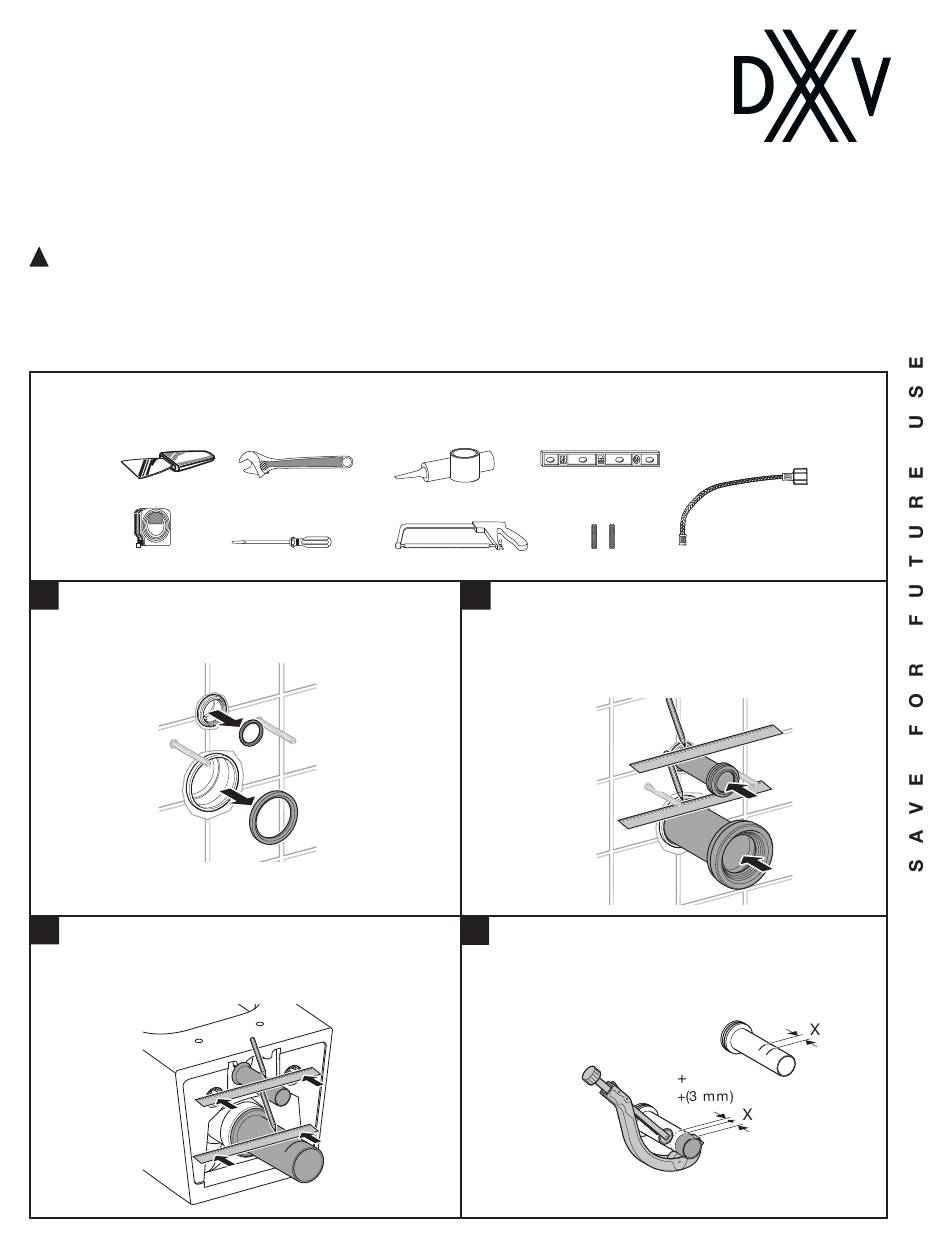

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Putty Knife
10'
Tape Measure
1

BOWL INSTALLATION:

Remove yellow protection plugs and seals from pipes.
3
Place discharge pipe with gasket into waste outlet of bowl.
Also place flush pipe with fin gasket into inlet of bowl.
Then mark a second line on both pipes.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2020
™
Adjustable Wrench
Regular Screwdriver
Level
Sealant
Closet Bolts
Hacksaw
2
Insert discharge pipe into the pipe hub in the wall. Place
a straight edge flush against the wall and mark a line on
the pipe. Fit finned rubber seal onto flush pipe. Repeat
same procedure for discharge pipe.
4
Add dimension X and 1/8" (3 mm). Using that dimension,
mark a line on the pipe measuring from the hub side.
Cut off the pipe at the line with a pipe cutter.
- 1 -
Flexible Supply Tube
"
1/8
7302409-100 (2/2020)
