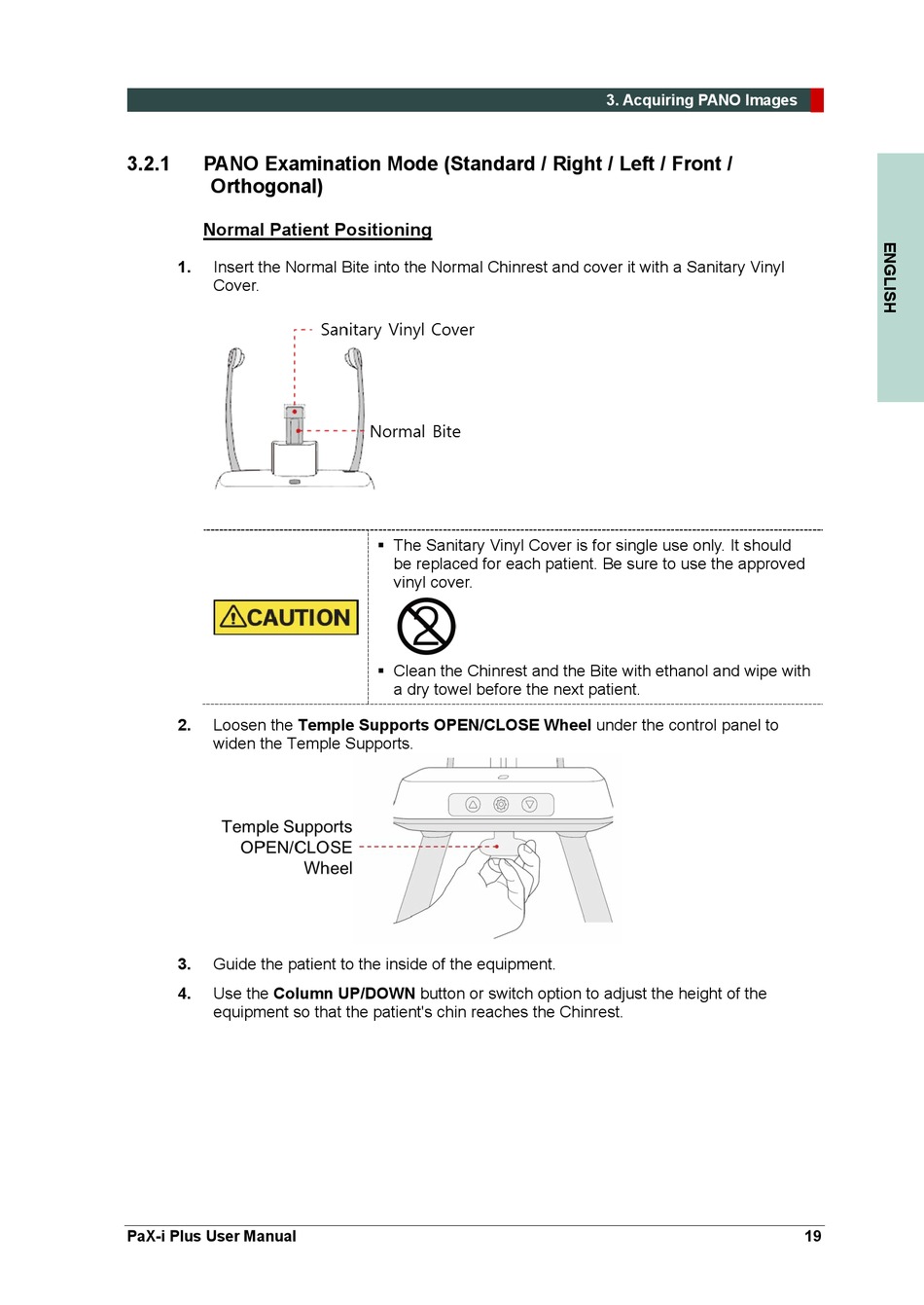

3.2.1 PANO Examination Mode (Standard / Right / Left / Front /
Orthogonal)
Normal Patient Positioning
1. Insert the Normal Bite into the Normal Chinrest and cover it with a Sanitary Vinyl
Cover.
2. Loosen the Temple Supports OPEN/CLOSE Wheel under the control panel to
widen the Temple Supports.
3. Guide the patient to the inside of the equipment.
4. Use the Column UP/DOWN button or switch option to adjust the height of the
equipment so that the patient's chin reaches the Chinrest.
PaX-i Plus User Manual
 The Sanitary Vinyl Cover is for single use only. It should
be replaced for each patient. Be sure to use the approved
vinyl cover.
 Clean the Chinrest and the Bite with ethanol and wipe with
a dry towel before the next patient.
3. Acquiring PANO Images
19
