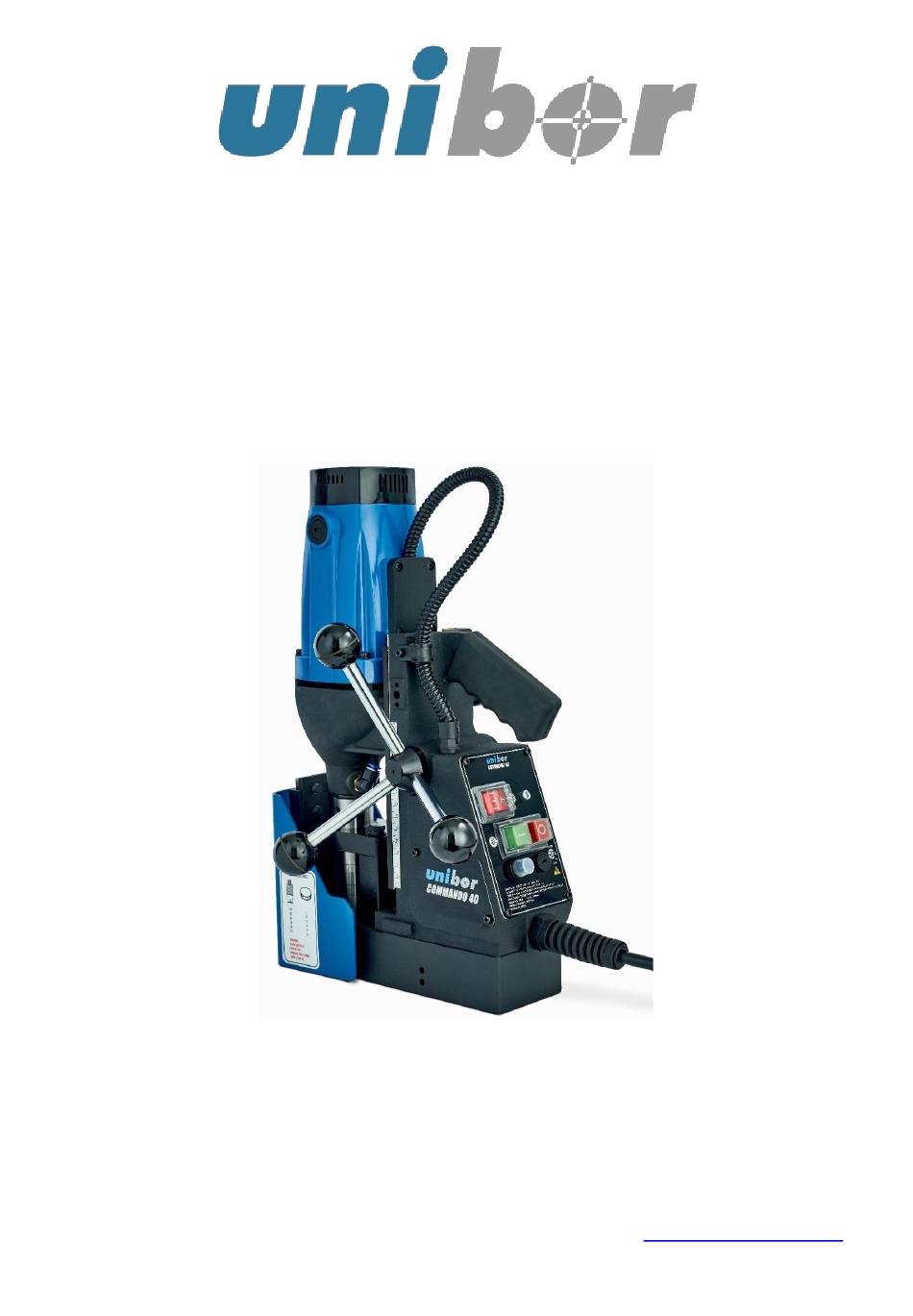

- Page 1 COMMANDO 40 Magnetic drilling machine Model Number CMD40 This machine (Serial Number ......) is CSA approved Unibor 77 Eisenhower Lane S Lombard IL 60148 Tel: 6304959940 Fax: (314) 9685040 Email: usa@unibor.com Website: www.uniborusa.com...
-
Page 2: Table Of Contents
Unibor COMMANDO 40 Original Instructions Nov 2019 CONTENTS OF THE MANUAL Page Intended use General safety rules Information plate symbols Specification Operational safety procedures Operating instructions Extension cable selection Mounting of cutters Remedies for hole making 10) Wiring diagram 11) Exploded view of machine... -
Page 3: Intended Use
Unibor COMMANDO 40 Original Instructions Nov 2019 1) INTENDED USE The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and any other applications when drilling ferrous metal. -
Page 4: Information Plate Symbols
24. The use of any accessory or attachment, other than ones recommended in this instruction manual, may present a risk of personal injury. 25. Have your machine repaired by a qualified Unibor technician. This electric tool complies with the relevant safety rules. Qualified persons using original spare parts should only carry out repairs otherwise this may result in considerable danger to the user. -
Page 5: Specification
Unibor COMMANDO 40 Original Instructions Nov 2019 4) SPECIFICATION Maximum hole cutting capacity in .2/.3C steel = 1.1/2” dia. x 2” deep Motor Unit Voltages 120V 50-60Hz Normal full load 10 A Electro Magnet Size 6.1/2” long 3.1/8” wide Holding Force at 20°C with 1”... -
Page 6: Operational Safety Procedures
▪ To start the machine, follow the control panel operation instructions. The Unibor machine is fitted with a dual motor protection system to fully ensure safety and extended life of the motor. The CutSmart protection (found on the control panel) gives a clear and visible indication to the user of torque being applied to the motor, once the prescribed level is reached the motor is protected by automatic cut out. -
Page 7: Extension Cable Selection
Unibor COMMANDO 40 Original Instructions Nov 2019 7) EXTENSION CABLE SELECTION The machines are factory fitted with a 9 ¾ft length of cable having three conductors 16AWG LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be taken in using a cable of adequate capacity. -
Page 8: Remedies For Hole Making
Unibor COMMANDO 40 Original Instructions Nov 2019 9) REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic base Material being cut may be too thin for efficient holding. Attach an additional piece of metal under the magnet, or won’t hold mechanically clamp magnetic base to work-piece. -
Page 9: Wiring Diagram
Unibor COMMANDO 40 Original Instructions Nov 2019 10) WIRING DIAGRAM... -
Page 10: Exploded View Of Machine
Unibor COMMANDO 40 Original Instructions Nov 2019 11) EXPLODED VIEW OF MACHINE MACHINE... - Page 11 Unibor COMMANDO 40 Original Instructions Nov 2019 PARTS LIST Item Unibor P/N Description Qty/pcs RD4347 M5×16 Cross Sunk Screw RD45607 M5 Lock Washer RD33344 Guard Support RDA3031 Side Channel RD4201 Screw M4x14 BTTN HD RD33274 Guard RD4066 M8×8 Lock Screw...
- Page 12 Unibor COMMANDO 40 Original Instructions Nov 2019 Item Unibor P/N Description Qty/pcs RD33630 Slide RD33600 Rack RD33646 Fixed Gib Strip RD4091 M5×25 Socket Cap Screw RD4210 Coil Pipe Clamp RD4077 M4x8 Cross panhead Screw RD43357 M4 Elastic Washer RD43600 Connector...
-
Page 13: Exploded View Of Gearbox And Motor
Unibor COMMANDO 40 Original Instructions Nov 2019 12) EXPLODED VIEW OF MOTOR AND GEARBOX... - Page 14 Unibor COMMANDO 40 Original Instructions Nov 2019 PARTS LIST Item Unibor P/N Description Qty/pcs RD4056 Circlip 19 Hole RA354 Button RA3118 Spring RD33155 Arbor RD4066 Screw M8×8 RD33156 Arbor Spindle RD43304 Oil Seal RD33602 Gearbox RD43305 Ball Bearing 6003 RD43306 Circlip 35-Hole 8.11...
-
Page 15: Pipe Adaptor Kit
Unibor COMMANDO 40 Original Instructions Nov 2019 13) PIPE ADAPTOR KIT RD2311 FITTING INSTRUCTIONS ▪ Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable angle plates RD3328 with cap screws RD4325 and washers RD4205 (4 off each) to the magnet sides. -
Page 16: Fitting Chuck
▪ Replacing the chuck is the reverse sequence. 15) MAINTENANCE In order to ‘get the best life’ out of your Unibor machine always keep it in good working order. A number of items must always be checked on Unibor machines. - Page 17 Unibor COMMANDO 40 Original Instructions Nov 2019 Magnetic base Before every operation the magnetic base should be checked to make sure that the base is flat and there is no damage present. An uneven magnet base will cause the magnet not to hold as efficiently and may cause injury to the operator.
-
Page 18: Trouble Shooting
Unibor COMMANDO 40 Original Instructions Nov 2019 16) TROUBLE SHOOTING Magnet and motor do not function - The magnet switch is not connected to the power supply - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective control unit... -
Page 19: Cutter Selection
Unibor COMMANDO 40 Original Instructions Nov 2019 17) CUTTER SELECTION AND SPEEDS Possible speed selection for mild steel with ideal conditions at 30 M/min. Speed selector Cutter diameter Nominal RPM position. 1 1/2” 1 ¼” 15/16” ¾” 5/8” 9/16” This data is presented for guidance only and should be adjusted to suit site and material... -
Page 20: Warranty Statement
18) WARRANTY STATEMENT Unibor™ warrants its machines to be free from faulty parts, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Unibor™...
