Summary of Contents for Unibor COMMANDO 35

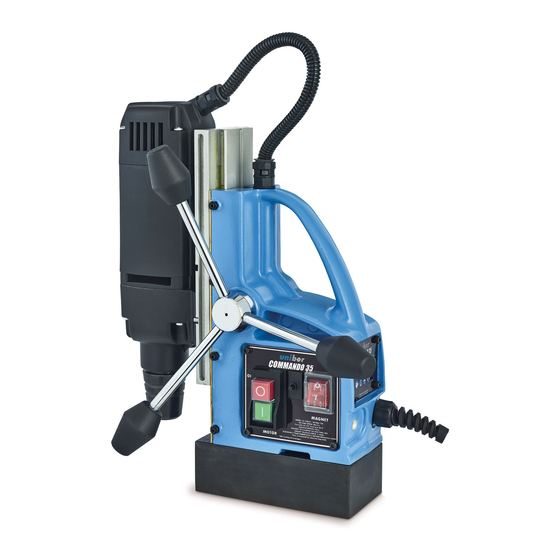

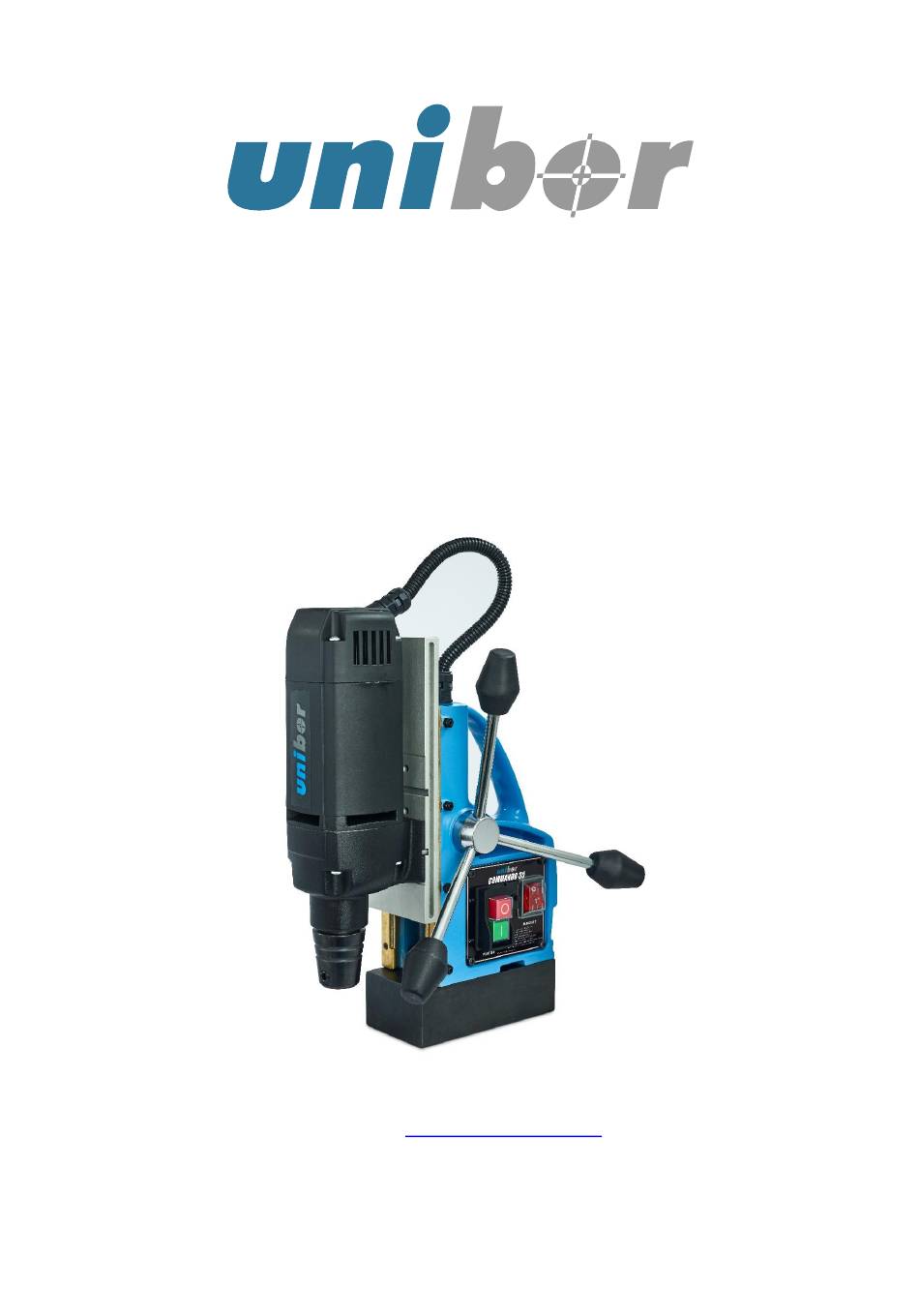

- Page 1 Unibor COMMANDO 35 Manual Original instructions 2019 COMMANDO 35 Magnetic drilling machine Model Number CMD35 (Serial Number ......) Website: www.uniborusa.com...
-
Page 2: Table Of Contents
Unibor COMMANDO 35 Manual Original instructions 2019 CONTENTS OF THE MANUAL Page Intended use General safety rules Information plate symbols Specification Operational safety procedures Operating instructions Extension cable selection Mounting of cutters Remedies for hole making problems Wiring diagram Exploded view... -
Page 3: Intended Use
Unibor COMMANDO 35 Manual Original instructions 2019 1) SE INTENDED USE The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and any other applications when drilling ferrous metal. -
Page 4: Information Plate Symbols
Unibor COMMANDO 35 Manual Original instructions 2019 control of the tool in unexpected situations. 6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hardhat, or hearing protection must be used for appropriate conditions. Tool use and care 1.Use clamps or other practical way to secure and support the workpiece to a stable platform. -
Page 5: Specification
Unibor COMMANDO 35 Manual Original instructions 2019 2. Dispose of the machine and electrical components correctly. 3. Eye protection must be worn when operating the machine. 4. Ear defenders must be worn when operating the machine. 4)SPECIFICATION Maximum hole cutting capacity in .2/.3C steel = 1.3/8” dia. x 2” deep Arbor bore = 3/4"... -
Page 6: Operational Safety Procedures
▪ When not in use ALWAYS store the machine in a safe and secure location. ▪ ALWAYS ensure that approved UNIBOR™ agents conduct repairs. 6) OPERATING INSTRUCTIONS ▪ Keep the inside of the cutter clear of swarf. It restricts the operating depth of the cutter. -
Page 7: Extension Cable Selection
Unibor COMMANDO 35 Manual Original instructions 2019 7) EXTENSION CABLE SELECTION The machines are factory fitted with a 2yard length of cable having three conductors 2.08mm² LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be taken in using a cable of adequate capacity. -
Page 8: Remedies For Hole Making Problems
Unibor COMMANDO 35 Manual Original instructions 2019 9) REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic base Material being cut may be too thin for efficient Attach an additional piece of metal under the won’t hold holding. magnet, or mechanically clamp magnetic base to effectively workpiece. -
Page 9: Wiring Diagram
Unibor COMMANDO 35 Manual Original instructions 2019 10) WIRING DIAGRAM... -
Page 10: Exploded View
Unibor COMMANDO 35 Manual Original instructions 2019 11) EXPLODED VIEW OF MACHINE... - Page 11 Unibor COMMANDO 35 Manual Original instructions 2019 Part Name Part No. magnet base assy. m0031 Handle lever assy. eB001 eB002 Guide Plate eB003 Screw m6 x 25 SC625CaP Countersunk screws m3x8 eB004 Brass Strip Left eB005 Brass Strip right eB006...
-
Page 12: Motor Breakdown
Unibor COMMANDO 35 Manual Original instructions 2019 12) MOTOR BREAKDOWN... - Page 13 Unibor COMMANDO 35 Manual Original instructions 2019 Part Name Part No. Qty. Carbon brush assy. 6.3x10x18 eBD002 Brush holder assy. eBD001 Screw m4 x12 eBD003 Spring Washer m4 eBD004 Philips head self-tap screw eBD005 4.8x45 Back cover eBD006 Field coil casing eBD007 Field Coil assy.
-
Page 14: Control Panel And Parts List
Unibor COMMANDO 35 Manual Original instructions 2019 13)CONTROL PANEL AND PARTS LIST Part Name Part No. Qty. Panel plate (not shown) RD33247 Drill stop/start switch 120v NCP001 magnet switch NCP006 25a Bridge rectifier m0401... -
Page 15: Maintenance
2019 14) MAINTENANCE In order to ‘get the best life’ out of your Unibor machine always keep it in good working order. Several items must always be checked on Unibor machines. Always before starting any job make sure the machine is in good working order and that there are no damaged or loose parts. -
Page 16: Trouble Shooting
Unibor COMMANDO 35 Manual Original instructions 2019 15) TROUBLE SHOOTING Magnet and motor do not function - The magnet switch is not connected to the power supply - Damaged or defective wiring - Defective magnet switch - Defective control unit... -
Page 17: Cutter Selection, Speeds And Feeds
Unibor COMMANDO 35 Manual Original instructions 2019 16) CUTTER SELECTION Material Material Hardness Cutter Mild and free cutting steels <700N/mm² Mild and free cutting steels <850N/mm² Steel angle and joists <700N/mm² Steel angle and joists <850N/mm² Plate and sheet steel <700N/mm²... -
Page 18: Warranty
17) WARRANTY STATEMENT Unibor™ warrants its machines to be free from faulty parts, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Unibor™...
