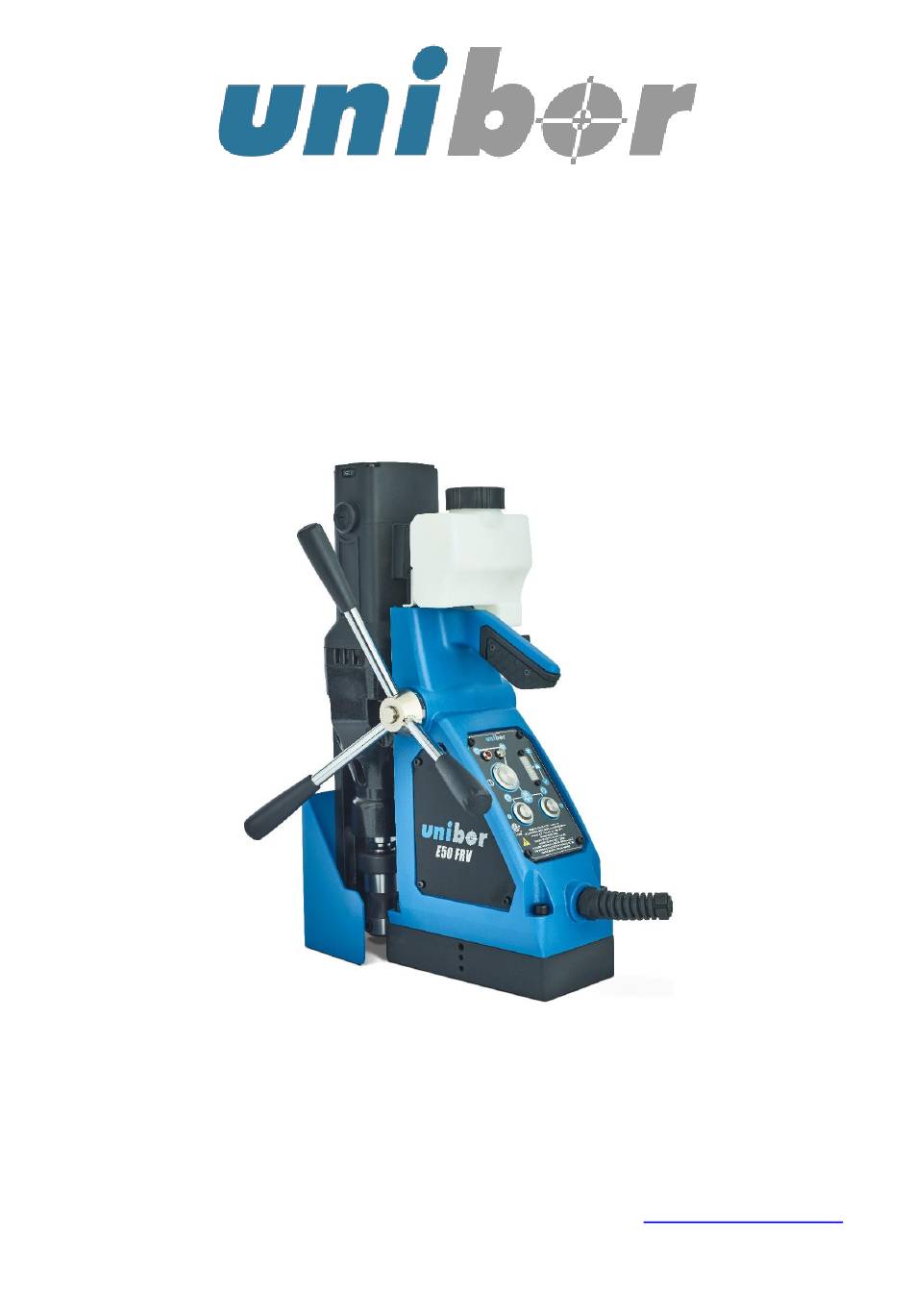

Magnetic drilling machine

Advertisement

Quick Links

E50 FRV
Magnetic drilling machine
Model Number
E50FRV
This machine (Serial Number ...........................) is CSA approved
Unibor
77 Eisenhower Lane S
Lombard
IL 60148
Tel: 6304959940
Fax: (314) 9685040
Email: usa@unibor.com
Website:
www.uniborusa.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E50 FRV and is the answer not in the manual?

Questions and answers

Summary of Contents for Unibor E50 FRV

  • Page 1 E50 FRV Magnetic drilling machine Model Number E50FRV This machine (Serial Number ......) is CSA approved Unibor 77 Eisenhower Lane S Lombard IL 60148 Tel: 6304959940 Fax: (314) 9685040 Email: usa@unibor.com Website: www.uniborusa.com...
  • Page 2: Contents Of The Manual

    Unibor E50 FRV Manual Original Instructions Nov 2019 CONTENTS OF THE MANUAL Page Intended use General safety rules Information plate symbols Specification Operational safety procedures Operating instructions Control panel operation Tapping function Gear selection 10) Extension cable selection 11) Mounting of cutters...
  • Page 3: Intended Use

    Unibor E50 FRV Manual Original Instructions Nov 2019 1) INTENDED USE The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and any other applications when drilling ferrous metal.
  • Page 4: Information Plate Symbols

    24. The use of any accessory or attachment, other than ones recommended in this instruction manual, may present a risk of personal injury. 25. Have your machine repaired by a qualified Unibor technician. This electric tool complies with the relevant safety rules. Qualified persons using original spare parts should only carry out repairs otherwise this may result in considerable danger to the user.
  • Page 5: Specification

    Unibor E50 FRV Manual Original Instructions Nov 2019 4) SPECIFICATION Maximum hole cutting capacity in .2/.3C steel = 2” dia. x 2” deep Arbor bore = MT2 Motor Unit Voltages 120V 50-60Hz Normal full load 14 A Electro Magnet Size 7-7/8”...
  • Page 6: Operational Safety Procedures

    ▪ To start the machine, follow the control panel operation instructions. The Unibor machine is fitted with a dual motor protection system to fully ensure safety and extended life of the motor. The CutSmart protection (found on the control panel) gives a clear and visible indication to the user of torque being applied to the motor, once the prescribed level is reached the motor is protected by automatic cut out.
  • Page 7: Control Panel Operation

    Unibor E50 FRV Manual Original Instructions Nov 2019 7) CONTROL PANEL OPERATION CutSmart™ Technology CutSmart™ Technology Designed for you to get the most out of your machine and your cutters. CutSmart has an easy to read panel that indicates when you are drilling with too much force, which will damage the machine and the cutters.
  • Page 8 Unibor E50 FRV Manual Original Instructions Nov 2019 8) TAPPING FUNCTION 1.Ensure power to the machine, red LED will illuminate (1). 2.Press the magnet switch on to engage the magnet. The LED will light up in either green or red (3).
  • Page 9: Mounting Of Cutters

    Unibor E50 FRV Manual Original Instructions Nov 2019 9) GEAR SELECTION The UNIBOR 50 magnetic drill is fitted with a 2-speed gearbox. The gear is used to reduce the output speed when using larger cutters. Slide Selector Position Speed Controller Setting...
  • Page 10: Capstan Operation

    Unibor E50 FRV Manual Original Instructions Nov 2019 12) CAPSTAN OPERATION The quick release capstan is a feature that offers the user simple dual side operation. To remove the capstan, simply do the following. 1: Press in the central button on the capstan hub, holding onto the capstan arms.
  • Page 11: Remedies For Hole Making Problems

    Unibor E50 FRV Manual Original Instructions Nov 2019 13) REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic base Material being cut may be too thin for efficient holding. Attach an additional piece of metal under the magnet, or won’t hold...
  • Page 12: Wiring Diagram

    Unibor E50 FRV Manual Original Instructions Nov 2019 14) WIRING DIAGRAM Function Wire Colour Mains Live Input Brown Speed controller module Lead wire White Speed controller module Lead wire Mains Neutral Input Blue Magnet Positive Output Blue Magnet Negative Output...
  • Page 13: Exploded View Of Machine

    Unibor E50 FRV Manual Original Instructions Nov 2019 15) EXPLODED VIEW OF MACHINE MACHINE...
  • Page 14: Parts List

    Unibor E50 FRV Manual Original Instructions Nov 2019 PARTS LIST Unibor Item# Description Qty/pcs RDC4001 Screw RD45607 M5 CSK Washer RDC4002 Guard support RDC4003 Slide channel RDA4201 Screw M4×14 Button Head RDB3116 Guard RDC4004 Screw M4×8 Button Head RDC4140 Motor assembly...
  • Page 15 Unibor E50 FRV Manual Original Instructions Nov 2019 PARTS LIST Unibor Item# Description Qty/pcs Screw M4×12 RDD4118 Button Head RDC4068 Screw RDC4141 Housing RDC4107 Handle insert RD4068 M4 nut RD45604 Earth label RDC4113 Cable clamp Screw M6×16 CAP RDC4110 RDD4104...
  • Page 16: Exploded View Of Motor And Gearbox

    Unibor E50 FRV Manual Original Instructions Nov 2019 16) EXPLODED VIEW OF MOTOR AND GEARBOX...
  • Page 17 Unibor E50 FRV Manual Original Instructions Nov 2019 PARTS LIST Unibor Item# Description Qty/pcs RDC4007 Circlip RDC4008 Oil seal washer RDC4009 Arbor spindle RDC4010 Roll Bearing RDC4011 Flat Key RDC4012 Tapping Screw RDB4008 Spring RDC4123 Gear lever RDC4013 screw RDC4014 Gear box 8.11...
  • Page 18 Unibor E50 FRV Manual Original Instructions Nov 2019 Unibor Item# Description Qty/pcs 8.36 RDC4030 Baffle plate 8.37 RDC4031 Tapping Screw 8.38 RDC4033 Field coil 8.39 RDC4034 Lead wire RDC4035 Lead wire RDC4144 8.41 Motor casing 8.42 RDC4037 Lead wire 8.43...
  • Page 19: Control Panel And Parts List

    Unibor E50 FRV Manual Original Instructions Nov 2019 17) CONTROL PANEL AND PARTS LIST Item# Unibor P/N Description Qty/pcs RDA4051 Green Motor Switch RDC4090 Blue Motor Switch-Tapping RDC4091 Magnet Switch RDC4092 Red LED RDC4093 Green LED RDA4036 Screw M3×12 BTTN HD...
  • Page 20: Fitting Instructions

    Unibor E50 FRV Manual Original Instructions Nov 2019 18) PIPE ADAPTOR KIT RD2311 FITTING INSTRUCTIONS ▪ Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable angle plates RD3328 with cap screws RD4325 and washers RD4205 (4 off each) to the magnet sides. Do not tighten.
  • Page 21: Fitting The Chuck

    ▪ Replacing the chuck is the reverse sequence, by utilising RDC4086 (Drift). 20) MAINTENANCE In order to ‘get the best life’ out of your Unibor machine always keep it in good working order. A number of items must always be checked on Unibor machines.
  • Page 22 Unibor E50 FRV Manual Original Instructions Nov 2019 Magnetic base Before every operation the magnetic base should be checked to make sure that the base is flat and there is no damage present. An uneven magnet base will cause the magnet not to hold as efficiently and may cause injury to the operator.
  • Page 23: Troubleshooting

    Unibor E50 FRV Manual Original Instructions Nov 2019 21) TROUBLE SHOOTING Magnet and motor do not function - The magnet switch is not connected to the power supply - Damaged or defective wiring - Defective fuse - Defective magnet switch...
  • Page 24: Cutter Selection And Speeds

    Unibor E50 FRV Manual Original Instructions Nov 2019 22) CUTTER SELECTION AND SPEEDS Material Material Hardness Cutter Mild and free cutting steels <700N/mm² Mild and free cutting steels <850N/mm² Steel angle and joists <700N/mm² Steel angle and joists <850N/mm² Plate and sheet steel <700N/mm²...
  • Page 25: Warranty Statement

    23) WARRANTY STATEMENT Unibor™ warrants its machines to be free from faulty parts, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Unibor™...
