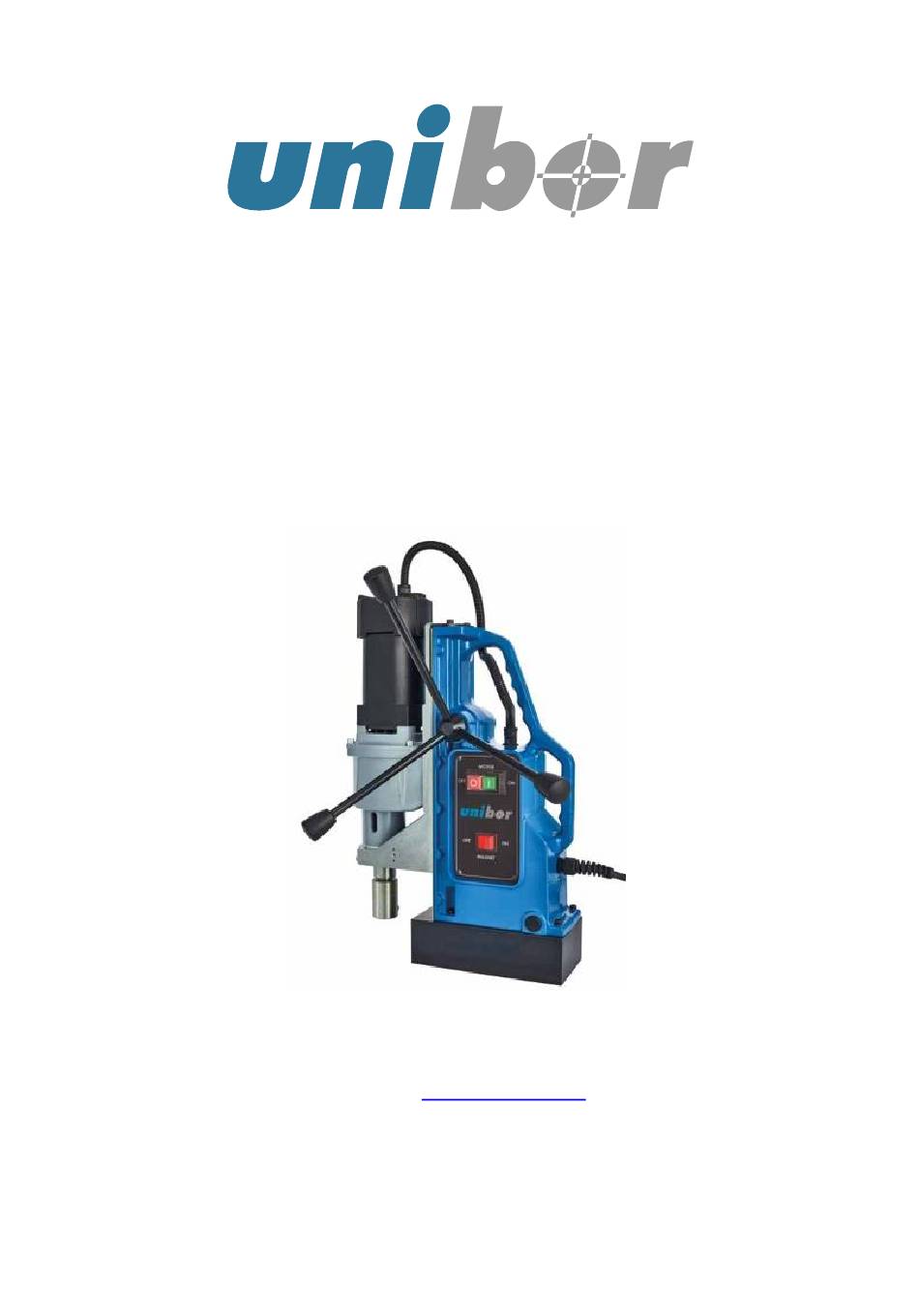

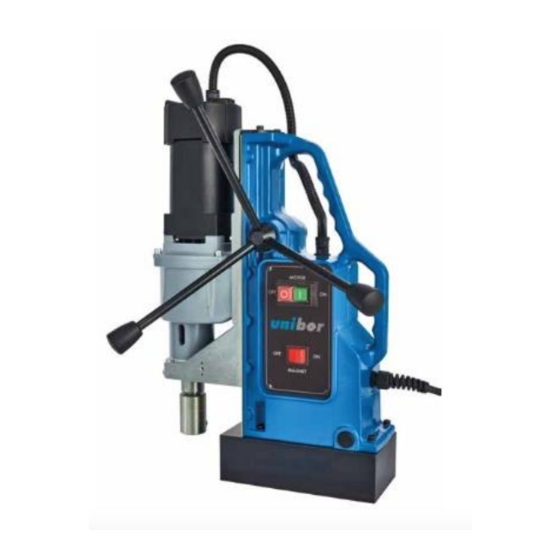

- Page 1 Unibor E100 Manual Original instructions Apr 2020 Magnetic drilling machine Model Number E100 (Serial Number ......) Website: www.unibor.com...
-
Page 2: Table Of Contents
Unibor E100 Manual Original instructions Apr 2020 CONTENTS OF THE MANUAL Page Intended use General safety rules Information plate symbols Specification Operational safety procedures Operating instructions Extension cable selection Mounting of cutters Remedies for hole making problems Wiring diagram Exploded view... -
Page 3: Intended Use
Unibor E100 Manual Original instructions Apr 2020 1) INTENDED USE The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and any other applications when drilling ferrous metal. -
Page 4: Information Plate Symbols
Unibor E100 Manual Original instructions Apr 2020 Tool use and care 1.Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control. -
Page 5: Specification
Unibor E100 Manual Original instructions Apr 2020 4)SPECIFICATION Maximum hole cutting capacity in .2/.3C steel = 4” dia. x 4” deep Arbor bore = 3/4" dia. Motor Unit Voltages 120v 50-60 Hz Normal full load 1800w Electro Magnet 0.68 A Size 8-21/32”... -
Page 6: Operational Safety Procedures
▪ When not in use ALWAYS store the machine in a safe and secure location. ▪ ALWAYS ensure that approved UNIBOR™ agents conduct repairs. 6) OPERATING INSTRUCTIONS ▪ Keep the inside of the cutter clear of swarf. It restricts the operating depth of the cutter. -
Page 7: Extension Cable Selection
Unibor E100 Manual Original instructions Apr 2020 7) EXTENSION CABLE SELECTION The machines are factory fitted with a 9-foot length of cable having three conductors 1.5 mm² LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be taken in using a cable of adequate capacity. -
Page 8: Remedies For Hole Making Problems
Unibor E100 Manual Original instructions Apr 2020 9) REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic base Material being cut may be too thin for efficient Attach an additional piece of metal under the won’t hold holding. magnet, or mechanically clamp magnetic base to effectively workpiece. -
Page 9: Wiring Diagram
Unibor E100 Manual Original instructions Apr 2020 10) WIRING DIAGRAM Standard Wiring Diagram MLC Wiring Diagram... -
Page 10: Exploded View
Unibor E100 Manual Original instructions Apr 2020 11) EXPLODED VIEW OF MACHINE... - Page 11 Unibor E100 Manual Original instructions Apr 2020 Item Description M0443 CONDUIT 40025 PG9 PUSH FIT GLAND - PMA BVND P090GT 20355 LARGE CRADLE SC630CAP M6 X 30 CAP HEAD SCREW 20346 HANDLE (12mm LARGE) 10082 HANDLE KNOB M0103 BRASS RAIL (MT50)
-
Page 12: Motor Breakdown
Unibor E100 Manual Original instructions Apr 2020 12) MOTOR BREAKDOWN... - Page 13 Unibor E100 Manual Original instructions Apr 2020 Item Description EIB058-1 ARMATURE ASSEMBLY 120V EIB194 ARMATURE BEARING CAP EIB054-1 FIELD COIL 120V EIB018 FAN COVER EIB019 MOTOR HOUSING EIB036 BRUSH HOLDER EIB047 CARBON BRUSH EIB196 SCREW HC 2.9X13 EIB197 SPRING WASHER S6...
- Page 14 Unibor E100 Manual Original instructions Apr 2020 EIB060 CLUTCH GEAR EIB015 CLUTCH COUPLING EIB141 INTER GEAR EIB147 WASHER 28X 12 EIB148 WASHER 12/18 X 0.05 EIB150 THRUST WASHER EIB149 CLUTCH COUPLING EIB144 THUST WASHER 12.1 X 18 EIB012 GEAR SHAFT...
-
Page 15: Control Panel And Parts List
Unibor E100 Manual Original instructions Apr 2020 13)CONTROL PANEL AND PARTS LIST Part Number Description Quantity NCP035 Control Panel Plate NCP001 Motor Stop/Start Switch 120V NCP006 Magnet Switch M0401 Bridge Rectifier... -
Page 16: Maintenance
Apr 2020 14) MAINTENANCE In order to ‘get the best life’ out of your Unibor machine always keep it in good working order. Several items must always be checked on Unibor machines. Always before starting any job make sure the machine is in good working order and that there are no damaged or loose parts. -
Page 17: Trouble Shooting
Unibor E100 Manual Original instructions Apr 2020 15) TROUBLE SHOOTING Magnet and motor do not function - The magnet switch is not connected to the power supply - Damaged or defective wiring - Defective magnet switch - Defective control unit... -
Page 18: Cutter Selection
Unibor E100 Manual Original instructions Apr 2020 16) CUTTER SELECTION Material Material Hardness Cutter Mild and free cutting steels <700N/mm² Mild and free cutting steels <850N/mm² Steel angle and joists <700N/mm² Steel angle and joists <850N/mm² Plate and sheet steel <700N/mm²... -
Page 19: Warranty
17) WARRANTY STATEMENT Unibor™ warrants its machines to be free from faulty parts, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Unibor™...
