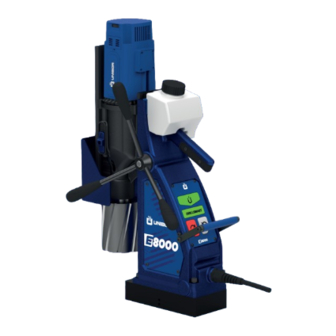

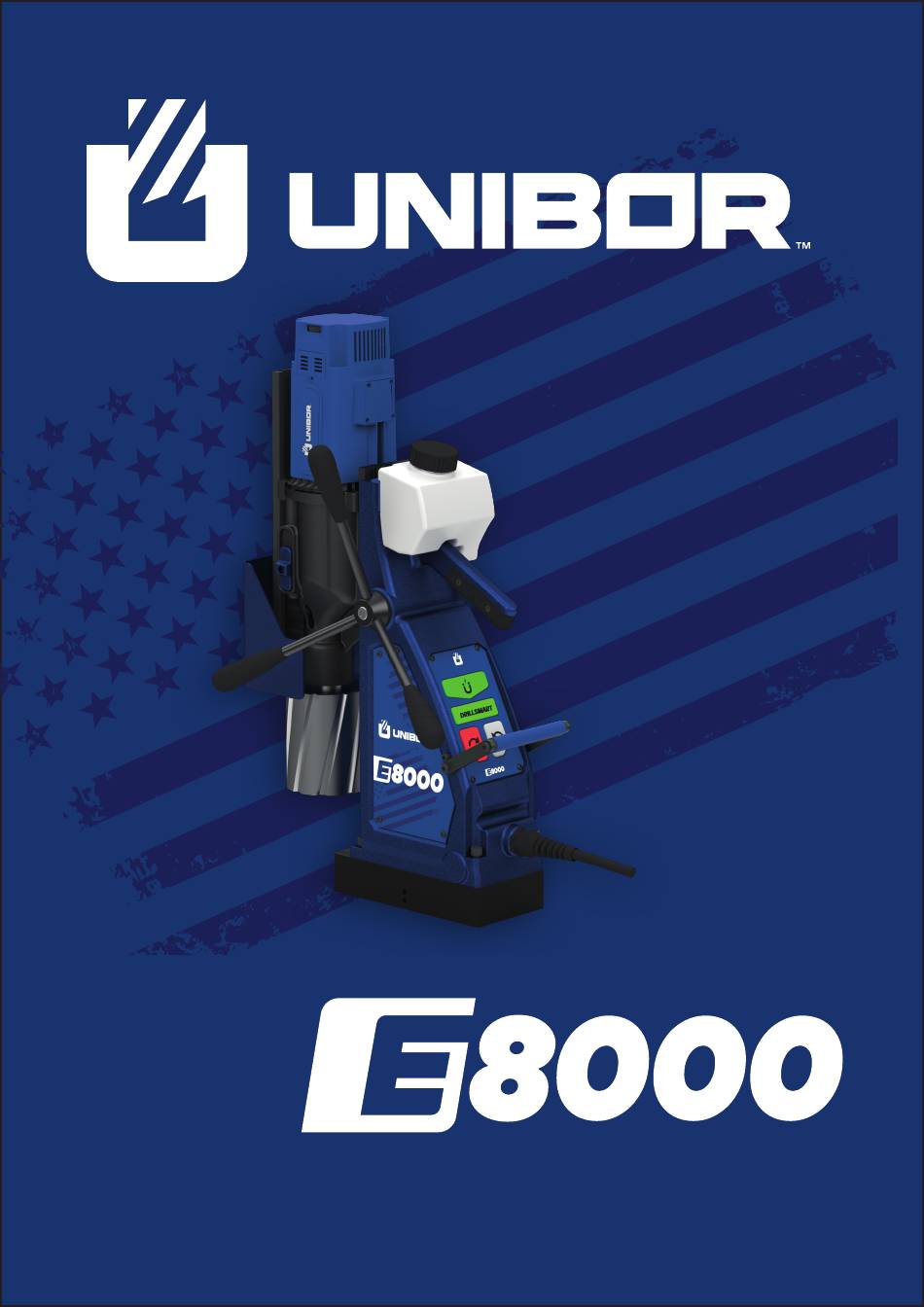

- Page 1 Magnetic Drilling Machine WWW.UNIBORUSA.COM | This machine is CSA approved | Model Number: E8000 | V1...
-
Page 3: Table Of Contents
Contents Page Intended Use General Safety Rules Information Plate Symbols Specification Operational Safety Procedures Operating Instructions Control Panel Gear Selection Extension Cable Selection Mounting Of Cutters Troubleshooting Wiring Diagram Machine Parts Motor & Gearbox Parts Fitting the Chuck Pipe Adapter Maintenance Cutting Speed Selection Warranty Statements... -
Page 4: Intended Use
Intended Use The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place whilst the drill is functioning. It is designed for use in fabrica- tion, construction, railways, petrochemical and any other applications when drilling ferrous metal. -
Page 5: General Safety Rules
General Safety Rules WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS Work Area 1. Keep your work area clean and well lit. Cluttered benches and dark areas invite acci- dents. - Page 6 General Safety Rules Tool Use and Care 1. Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control. 2 .
-
Page 7: Information Plate Symbols
Information Plate Symbols 1. Refer to the user manual for operational and safety issues with regards to this machine. 2. Dispose of the machine and electrical components correctly. 3. Eye protection must be worn when operating the machine. 4. Ear defenders must be worn when operating the machine. -
Page 8: Specification
14-9/16” Nett Weight 54.7lbs Part No. E8000 Suitable only for a single phase 50-60Hz A.C. power supply DO NOT USE ON D.C. SUPPLY Do not use your magnetic drill on the same structure when arc welding is in pro- gress. D.C. current will earth back through the magnet and cause irreparable dam- age. -
Page 9: Operational Safety Procedures
Failure to do so may result in personal injury. • On completion of the cut, a slug will be ejected. • When not in use always store the machine in a safe and secure location. • Always ensure that approved Unibor ™ agents conduct repairs. -
Page 10: Operating Instructions
Operational Instructions Keep the inside of the cutter clear of swarf. It restricts the operating depth of the cutter. • Ensure that the coolant bottle contains sufficient cutting oil to complete the required operating duration. Refill as required. • Occasionally depress the pilot to ensure cutting fluid is being correctly metered. •... -
Page 11: Control Panel
Control Panel... -
Page 12: Gear Selection
Gear Selection The UNIBOR E8000 magnetic drill is fitted with a 4-speed gearbox. The gear is used to reduce the output speed when using larger cutters. Slide Selector Position Left Slide Selector Position Right... -
Page 13: Extension Cable Selection
Extension Cable Selection The machines are factory fitted with a 9 ¾ft length of cable having three conductors 14AWG LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be taken in using a cable of adequate capacity. Failure to do so will result in a loss of traction by the magnet and a reduction of power from the motor. -
Page 14: Mounting Of Cutters
Mounting Of Cutters • The machine has been made to accept cutters having 3/4” dia. Weldon shanks. • The following procedure is to be used when mounting cutters: • With the machine in the upright position, ensure the Arbor Assembly (CA130) is fully inserted into Arbor Spindle (RDD4022). -
Page 15: Troubleshooting
Troubleshooting Damaged or defective wiring. M a g n e t a n d m o t o r d o n o t f u n c t i o n . Defective fuse. Defective control unit. Defective power supply. M a g n e t d o e s f u n c t i o n , t h e m o t o r d o e s n o t . -
Page 16: Wiring Diagram
Wiring Diagram... -
Page 17: Machine Parts
Machine Parts... - Page 18 Machine Parts...
- Page 19 Machine Parts...
-
Page 20: Motor & Gearbox Parts
Motor & Gearbox Parts... - Page 21 Motor & Gearbox Parts...
-
Page 22: Fitting The Chuck
Fitting The Chuck The machine comes supplied with an RDD4128 (Arbor Shank) & RDD4126 (5/8” Chuck). • RDD4128 into RDD4022 (Arbor Spindle), ensure a good and tight fit is achieved. Insert • RDD4126 into RDD4128, ensure a good and tight fit is achieved. Insert •... -
Page 23: Pipe Adapter
Pipe Adaptor Kit FITTING INSTRUCTIONS • Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable angle plates RD3328 with cap screws RD4325 and washers RD4205 (4 off each) to the magnet sides. Do not tighten. •... -
Page 24: Maintenance
Maintenance In order to ‘get the best life’ out of your Unibor machine always keep it in good working order. A number of items must always be checked on Unibor machines. Always before starting any job make sure the machine is in good working order and that there are no damaged or loose parts. - Page 25 Maintenance Magnetic base – before every operation the magnetic base should be checked to make sure that the base is flat and there is no damage present. An uneven magnet base will cause the magnet not to hold as efficiently and may cause injury to the operator. Adjustment of slide and bearing bracket alignment.
-
Page 26: Cutting Speed Selection
Cutting Speed Selection... -
Page 27: Warranty Statements
Warranty Statement Unibor™ warrants its machines to be free from faulty parts, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Unibor™... - Page 28 Extra...
- Page 29 Extra...
- Page 30 Extra...
- Page 31 Extra...
- Page 32 Extra...
- Page 33 Extra...
- Page 34 WWW.UNIBORUSA.COM | This machine is CSA approved...
