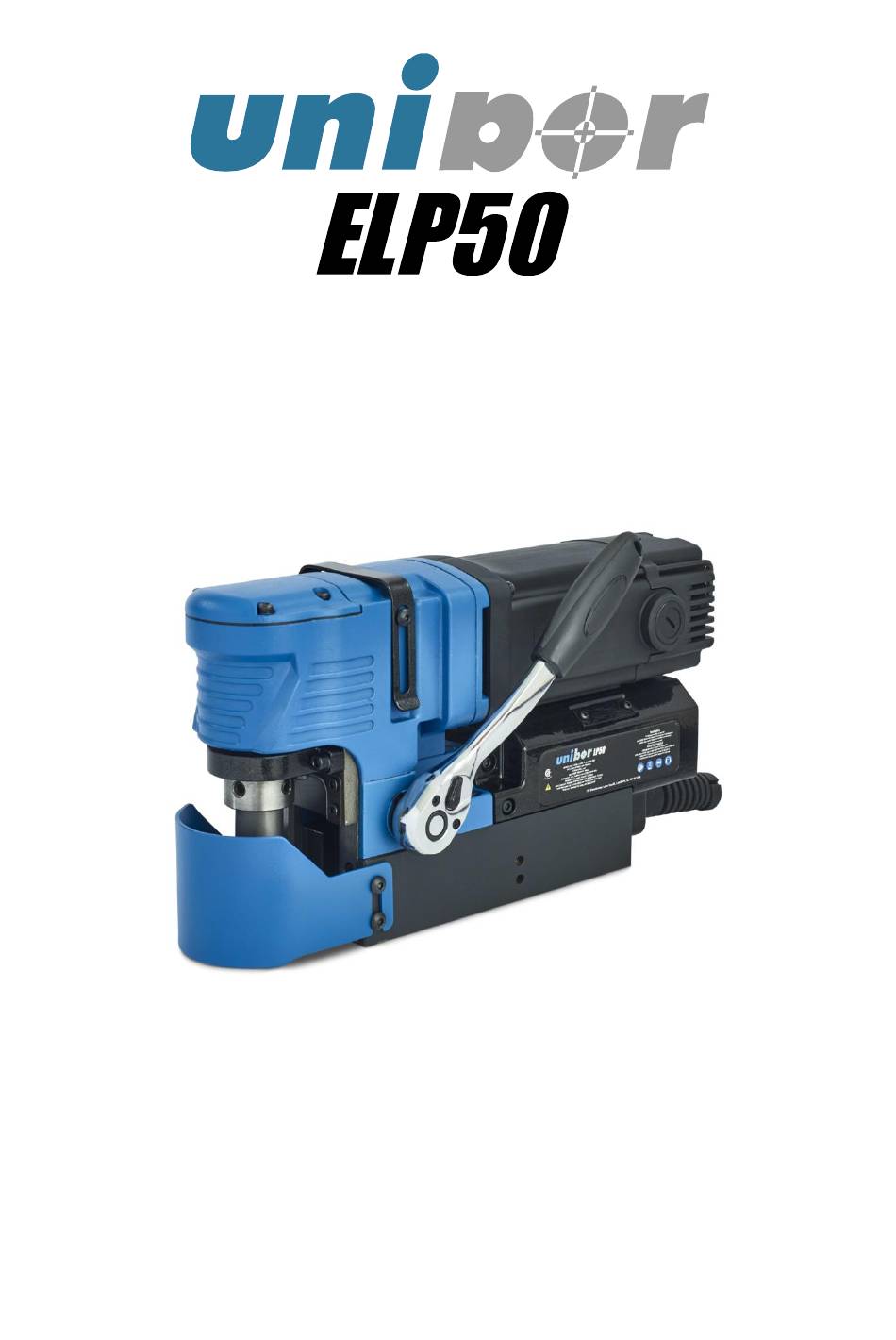

- Page 1 Magnetic drilling machine Model Number ELP50/1A ELP50/3 Unibor Burgess Road Sheffield S9 3WD Tel: +44 (0)1142212510 Fax: +44 (0)1142212563 Email: sales@oslgroup.com Website: www.uibor.com...
-
Page 2: Table Of Contents
ELP50 Low Profile Manual Original instructions 2020 CONTENTS OF THE MANUAL Page Intended use General safety rules Information plate symbols Specification Operational safety procedures Operating instructions Extension cable selection Mounting of cutters Remedies for hole making problems Wiring diagram Exploded view Motor Breakdown Control panel and parts List Pipe adapter kit RD2311... -
Page 3: Intended Use
ELP50 Low Profile Manual Original instructions 2020 INTENDED USE The intended use of this magnetic drill is to drill holes in ferrous metals. The magnet is used to hold the drill in place whilst the drill is functioning. It is designed for use in fabrication, construction, railways, petrochemical and any other applications when drilling ferrous metal. -
Page 4: Information Plate Symbols
ELP50 Low Profile Manual Original instructions 2020 hand or against your body is unstable and may lead to loss of control. 2.Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed. -
Page 5: Specification
Width (including Capstan fitting) 100mm Length Overall (including Guard) 334mm Nett Weight 11 kgs Part No. ELP50/1A ELP50/3 Vibration emission value Vibration total values (triax vector sum) in accordance with a W= 5,782 m/s2 EN62841-1: Uncertainty(K):1.5m/s² LpA: 85 dB(A) Level of sound pressure in accordance with EN62841-1: LwA: 98 dB(A) uncertainty(K)：3dB(A) -
Page 6: Operational Safety Procedures
▪ When not in use ALWAYS store the machine in a safe and secure location. ▪ ALWAYS ensure that approved UNIBOR™ agents conduct repairs. 6) OPERATING INSTRUCTIONS ▪ Keep the inside of the cutter clear of swarf. It restricts the operating depth of the cutter. -
Page 7: Extension Cable Selection
ELP50 Low Profile Manual Original instructions 2020 7) EXTENSION CABLE SELECTION The machines are factory fitted with a 6ft length of cable having three conductors 5/64”² LIVE, NEUTRAL and EARTH. If it becomes necessary to fit an extension cable from the power source, care must be taken in using a cable of adequate capacity. -
Page 8: Remedies For Hole Making Problems
ELP50 Low Profile Manual Original instructions 2020 9) REMEDIES FOR HOLE MAKING PROBLEMS Problem Cause Remedy 1) Magnetic base Material being cut may be too thin for efficient Attach an additional piece of metal under the won’t hold holding. magnet, or mechanically clamp magnetic base to effectively work-piece. -
Page 9: Wiring Diagram
ELP50 Low Profile Manual Original instructions 2020 10) WIRING DIAGRAM No Function Wire Colour Magnet Negative Output Black Magnet Positive Output Mains Neutral Input Blue Motor Neutral Output Motor Live Output Mains Live Input Brown No Function Wire Colour Magnet Switch +12V White Magnet LED +12V White... -
Page 10: Exploded View
ELP50 Low Profile Manual Original instructions 2020 11) EXPLODED VIEW OF MACHINE... - Page 11 ELP50 Low Profile Manual Original instructions 2020 Item# Unibor P/N Description Qty/pcs RDF2000 Spindle assembly RDF4000 Screw RDF4001 Circlip RDF3000 Bearing bracket RDF4002 Gear Shaft Washer RDF4003 Circlip RDF4004 Straight Pin RDF2001 Slide assembly RDF3020 Guard RDF4005 Screw RDF3002 Guide Bar...
- Page 12 ELP50 Low Profile Manual Original instructions 2020 RDF3024 Indicator cover RDF4019 Screw RDF4020 Screw RDF4023 Cable Clamp RDF4024 Screw RDF4025 outer sawtooth washer RDF2031/1 Left cover shell subassembly 110v RDF2031/3 Left cover shell subassembly 230v RDF2016/1 PCB panel subassembly 110v RDF2016/3 PCB panel subassembly 230v RDF4027...
-
Page 13: Motor Breakdown
ELP50 Low Profile Manual Original instructions 2020 12) MOTOR BREAKDOWN... - Page 14 ELP50 Low Profile Manual Original instructions 2020 Part Description RDF2021/1 Armature Assembly 110v RDF2021/3 Armature Assembly 230v RDF3014 Bearing Sleeve RDF3009 Field Coil Baffle RDF4038 Field Coil Screws RDF2019/1 Field Coil Assembly 110v RDF2019/3 Field Coil Assembly 230v RDF3021 Motor Frame RDF3011 Brush Holder RDF3005/1 Carbon Brush Set 110v...
-
Page 15: Control Panel And Parts List
ELP50 Low Profile Manual Original instructions 2020 13)CONTROL PANEL AND PARTS LIST RDC4092 Red/Green LED RDF4036 Magnet Switch RDF4037 Motor Switch RD33264 Facia Plate RDF3017 Connection Line... -
Page 16: Pipe Adapter Kit Rd2311
ELP50 Low Profile Manual Original instructions 2020 14)PIPE ADAPTOR KIT RD2311 FITTING INSTRUCTIONS ▪ Dependent upon the size of the pipe to be cut (see illustrations) attach adjustable angle plates RD3328 with cap screws RD4325 and washers RD4205 (4 off each) to the magnet sides. Do not tighten. ▪... -
Page 17: Maintenance
HE CHUCK 15) MAINTENANCE In order to ‘get the best life’ out of your Unibor machine always keep it in good working order. A number of items must always be checked on Unibor machines. Always before starting any job make sure the machine is in good working order and that there are no damaged or loose parts. -
Page 18: Trouble Shooting
ELP50 Low Profile Manual Original instructions 2020 16) TROUBLE SHOOTING Magnet and motor do not function - The magnet switch is not connected to the power supply - Damaged or defective wiring - Defective magnet switch - Defective control unit - Defective power supply Magnet does function, the motor does not - Damaged or defective wiring... -
Page 19: Cutter Selection, Speeds And Feeds
ELP50 Low Profile Manual Original instructions 2020 17) CUTTER SELECTION Material Material Hardness Cutter Mild and free cutting steels <700N/mm² Mild and free cutting steels <850N/mm² Steel angle and joists <700N/mm² Steel angle and joists <850N/mm² Plate and sheet steel <700N/mm²... -
Page 20: Additional Warnings
2020 18) Warranty Unibor™ warrants its machines to be free from faulty parts, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Unibor™...
