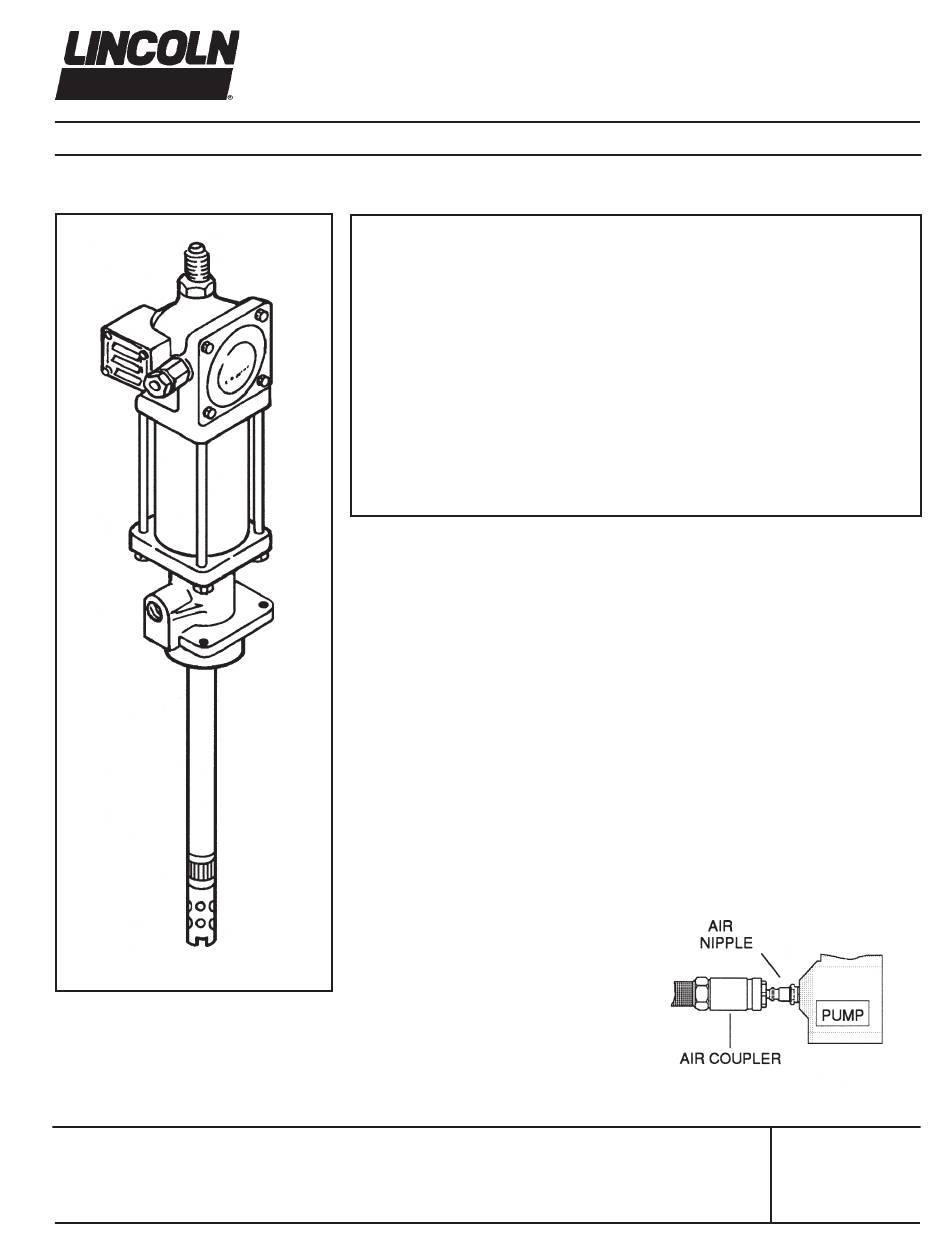

OWNER/OPERATOR MANUAL
Airmotor effective dia. in.
Air inlet
Material outlet
Ratio
Delivery output, cubic inches per minute
Delivery in cubic inches per cycle
Minimum air pressure
Maximum air pressure
Max output pressure
Noise level @120 psig

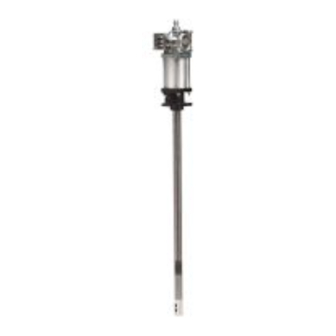

DESCRIPTION

Model 82054 is an air operated chassis
pump designed to pump low and medi-
um viscosity materials (grease) from
drums and pails.
OWNER/OPERATOR
RESPONSIBILITY
It is the owners/operators responsibility
to properly use and maintain this equip-
ment.
The instructions and warnings con-
tained in this manual shall be read and
understood by the owner/operator prior
to operating this equipment.
If an owner/operator does not under-
stand English, the contents of this man-
ual shall be explained in the owners/
operators native language to assure the
owner/operator comprehends.
It is the owners/operators responsibility
to maintain the legibility of all warning
and instruction labels.
AIR OPERATED CHASSIS PUMP

SPECIFICATIONS

2.5
1/4 NPTF
1/4" NPTF
50:1
80
.35
30 p.s.i.
150 p.s.i.
7500 p.s.i.
<85dBA
The owner/operator shall retain this
manual for future reference to impor-
tant warnings, operating and mainte-
nance instructions.

SAFETY INFORMATION

Read and understand all warnings,
cautions and instruction before operat-
ing this equipment. Extreme caution
should be used when operating this
equipment as personal injury and/ or
property damage can result from equip-
ment misuse. Adequate personal pro-
tection is recommended to prevent
splashing of material on the skin or in
the eyes. ALWAYS disconnect air cou-
pler from pump when the pump is not
being used.
© Copyright 2004
Printed in USA
Web site:
www.lincolnindustrial.com
MODEL 82054
SERIES "J"
- A5
Section
- 67B
Page
Form 403511
