User Manual for your
HHG610SS

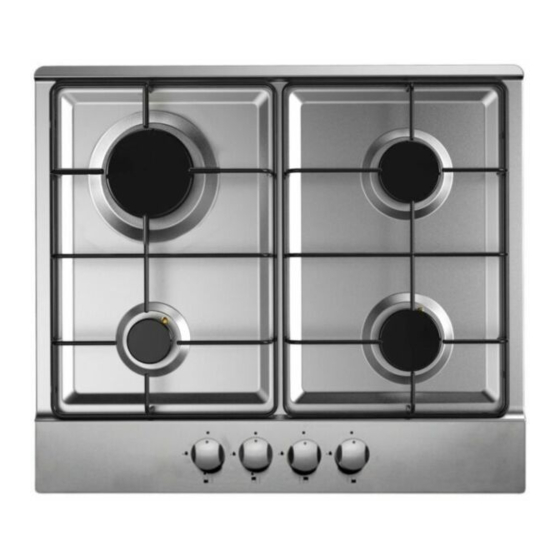

60cm 4 burner gas hob
HHG710SS
70cm 5 burner gas hob
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 09/03/12
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Baumatic HHG610SS
Summary of Contents for Baumatic HHG610SS

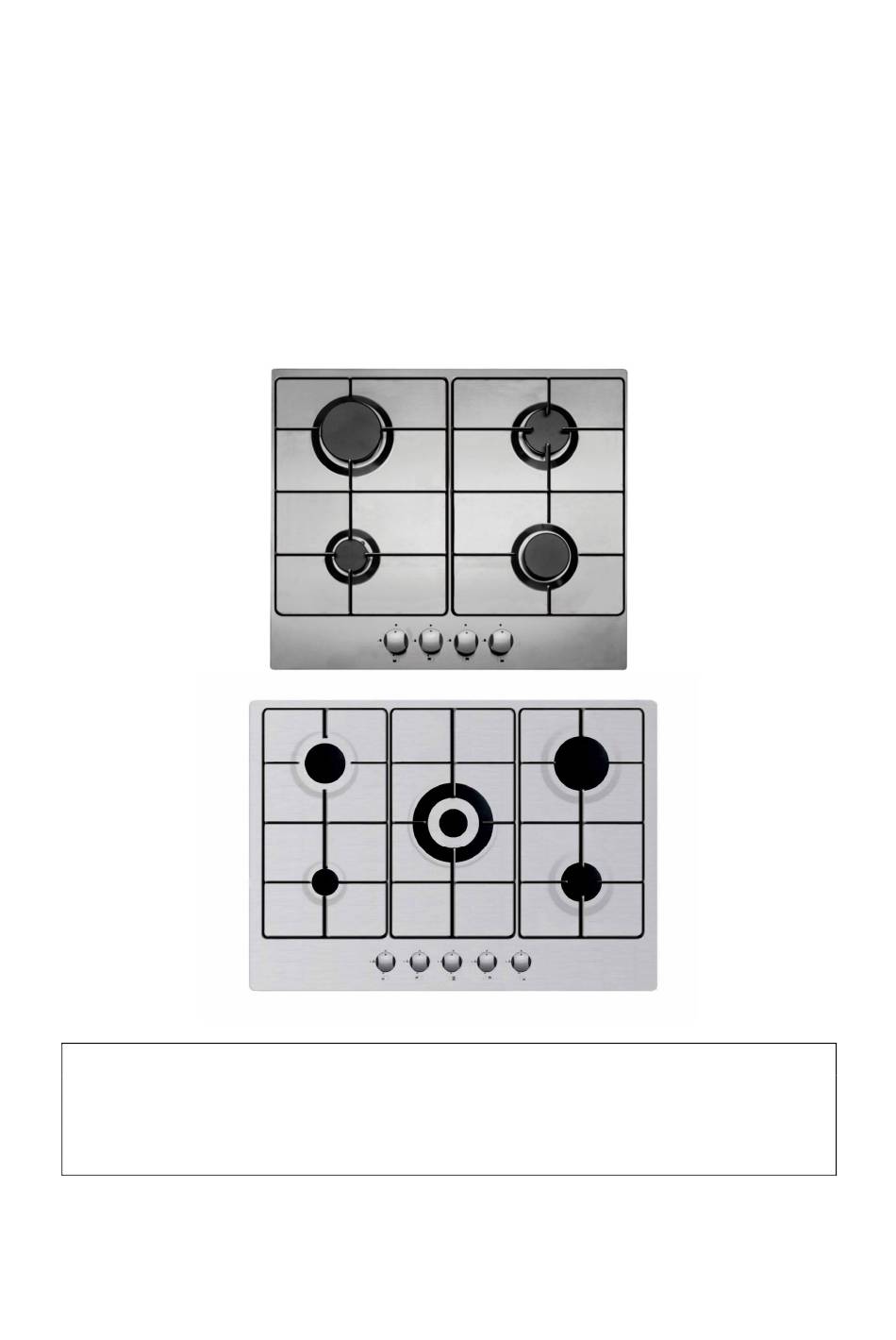

- Page 1 User Manual for your HHG610SS 60cm 4 burner gas hob HHG710SS 70cm 5 burner gas hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 2: Table Of Contents
Contents Environmental note Important safety information 4 - 6 Specifications 7 - 10 HHG610SS HHG710SS Electrical details Gas details Gas hob surface layout Using the gas hob 11 - 12 Before first use The gas hob Automatic ignition with flame failure safety device... -
Page 3: Environmental Note
Environmental note o The packaging materials that the manufacturer uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 4: Important Safety Information
Important safety information Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Customer Care Department. - Page 5 Child Safety o We strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 6 Cleaning o Cleaning of the hob should be carried out on a regular basis. o IMPORTANT: Before attempting to clean the appliance, it should be disconnected from the mains and cool. o Great care should be taken whilst using this appliance and when following the cleaning procedure.
-
Page 7: Specifications
Specifications HHG610SS Product dimensions: Depth: 510 mm Width: 600 mm Height: 40 mm Aperture dimensions: Depth: 480 mm Width: 560 mm Product specifications: o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner... -
Page 8: Hhg710Ss
HHG710SS Product dimensions: Depth: 510 mm Width: 700 mm Height: 40 mm Aperture dimensions: Depth: 480 mm Width: 560 mm Product specifications: o 1 x 3.80 kW triple crown (wok) burner o 1 x 3.00 kW rapid burner o 2 x 1.75 kW semi-rapid burners o 1 x 1.00 kW auxiliary burner o Front control operation o Enamelled pan stands... -
Page 9: Electrical Details
Electrical details Rated Voltage: 220 - 240 Vac 50 / 60 Hz Supply Connection: 3 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 0.8 W Mains Supply Lead: 3 core x 0.75 mm Gas details Connection: Rp ½... -
Page 10: Gas Hob Surface Layout
Gas hob surface layout HHG610SS A = 3.00 kW rapid burner B = 1.75 kW semi-rapid burners C = 1.00 kW auxiliary burner D = Control panel HHG710SS A = 3.80 kW wok burner B = 3.00 kW rapid burner C = 1.75 kW semi-rapid... -
Page 11: Using The Gas Hob
Using the gas hob Before first use IMPORTANT: You should clean the hob surface (see “Cleaning and maintenance” section). The gas hob The following symbols will appear on the control panel, next to each control knob: Black circle: gas off Large flame: maximum setting Small flame: minimum setting o The minimum setting is at the end of the anti-clockwise rotation... -
Page 12: Energy Saving Tips
o You should hold down the control knob for 15 seconds after the flame on the burner has lit. o After this 15 second interval, to regulate the flame you should continue turning the control knob anti-clockwise until the flame is at a suitable level. -
Page 13: Cleaning
Cleaning Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 14: Installation
IEE Wiring Regulations o Electricity at Work Regulations BS 6172 o Installation of Domestic Gas Cooking Appliances (if necessary, BS 5482 Installation of Domestic LPG Appliances) o BS 5440 Installation of Flues and Ventilation for Gas Appliances o Baumatic Ltd. Installation Instructions... -
Page 15: Positioning
85°C above the ambient temperature of the room it is located in, during periods of use. * 600 mm (HHG610SS) * 700 mm (HHG710SS) o This appliance can be located in a kitchen, a kitchen diner or a bed sitting room. -
Page 16: Unpacking The Appliance
Pan stands Burner assemblies Instruction manual Warranty card Fixing screws Clamps Sealing strip LPG conversion jets Self-adhesive label for amending the gas category on the appliance’s rating plate (required if the LPG conversion jets are used). Installing the appliance HHG610SS... - Page 17 HHG710SS o Cut a hole in the worktop that corresponds with the relevant drawing above. o IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it. o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 18: Gas Connection
o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced. Sealing strip Clamp Screw o Place the clamp (B) over the holes that match the size of the screws. -
Page 19: Ventilation Requirements
o The hob must be installed by a qualified person, in accordance with the current edition of the Gas Safety (Installation and Use) (Amendment) Regulations and the relevant building/I.E.E. Regulations. o Failure to install the appliance correctly could invalidate the manufacturer's guarantee and lead to prosecution under the regulations quoted above. -
Page 20: Gas Safety (Installation And Use) Regulations
o Remember that the quantity of air necessary for combustion must never be less than 2m /h for each kW of power (see total power in kW on the appliance rating plate). Gas Safety (Installation and Use) Regulations IMPORTANT: The appliance MUST be connected to the gas supply by use of a 15 mm x ½”... -
Page 21: Gas Adjustment (Conversion To Lpg)
the other burners and observe that the gas pressure complies with the gas standards in force. o IMPORTANT: On completion carry out a gas soundness test. Gas adjustment (Conversion to LPG) All work must be carried out by a GASSAFE registered engineer. -
Page 22: Minimum Flow Adjustment For Hob Gas Taps
o Reassemble all the burners carefully; in particular you should make sure that the flame spreader is correctly placed on the burner. o IMPORTANT: The minimum flow adjustment process must be completed before the appliance is next used. Minimum flow adjustment for hob gas taps. All work must be carried out by a GASSAFE registered engineer. -
Page 23: Gas Tap Maintenance
o Repeat this process for each one of the gas taps. Gas tap maintenance These maintenance operations MUST ONLY be carried out by a GASSAFE registered engineer. IMPORTANT: Before carrying out any maintenance operations, disconnect the appliance from the gas and electricity supplies. If a gas tap becomes stiff to operate, then you should proceed as follows: o Remove the control knobs, pan supports, burners, hob fixing... -
Page 24: Electrical Connection
o When fitting a new tap, ensure that a new gasket is used. o Reconnect the gas tap, perform a gas soundness test and then reassemble the hob. Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. -
Page 25: My Appliance Isn't Working Correctly
My appliance isn’t working correctly IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Customer Care Department on telephone number (0118) 933 6918. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out... -
Page 28: Contact Details
United Kingdom 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom Customer Care (0118) 933 6918...
