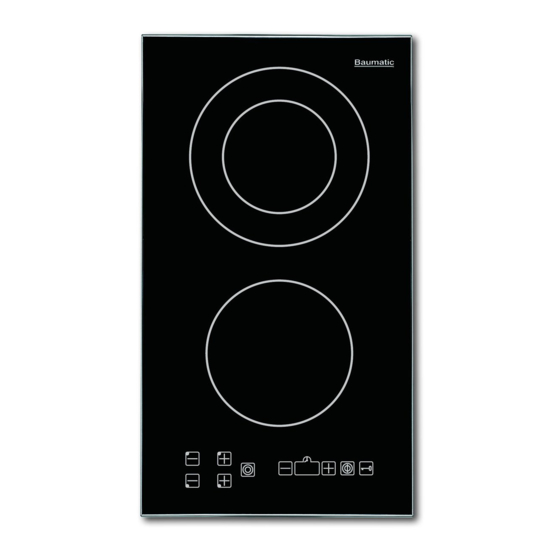

- Page 1 BTC2SS 30 cm 2 Hyperspeed zone domino hob...
- Page 2 User Manual for your Baumatic BTC2SS 30 cm Front touch control 2 hyperspeed zone ceramic hob. NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Unpacking the appliance Installing the appliance 22 – 23 Electrical connection Connecting the mains supply cable 24 – 25 Replacing the mains supply cable 25 - 26 My appliance isn’t working correctly 26 – 27 Baumatic Ltd. Conditions of Guarantee Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface. - Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
- Page 7 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
o Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications Product dimensions: Aperture dimensions: Height: 288 mm Height: 275 mm... -
Page 9: Electrical Details
Electrical details Rated Voltage: 230 Vac 50 Hz Supply Connection: 16 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 3.6 kW Mains Supply Lead: 3 core x 2.5 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -
Page 10: Ceramic Hob Surface Layout
Ceramic hob surface layout Control panel layout ON/OFF button Safety lock button Safety lock neon Minus button Plus button Cooking zone indicator Decimal point symbol Double hyperspeed zone dual circuit ON/OFF button Double hyperspeed zone dual circuit indicator neon Timer plus button Timer minus button Timer display... -
Page 11: Using The Ceramic Hob
Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. -
Page 12: Turning On A Zone And Setting A Power Level
Turning on a zone and setting a power level IMPORTANT: A zone must be selected within 10 seconds of turning the hob on. o Press the plus (5) button for the zone that you want to use. o Adjust the zone between power levels 1 and 9, using the plus (5) and minus (4) buttons. -
Page 13: Turning Off The Double Hyperzone's Outer Section
o The central section is switched on. o If you wish to also activate the outer section of the double hyperspeed zone, you should press the double hyperspeed zone dual circuit ON/OFF button (8). The double hyperspeed zone dual circuit indicator neon (9) will light. Turning off the double hyperzone’s outer section o Both zones of the dual circuit most be switched on. -
Page 14: Turning The Hob Off
Turning the hob off Once you have switched off all of the cooking zones, you should turn off the hob. o Press the ON/OFF button (1). It is possible to turn the hob off at any time by pressing the ON/OFF button (1). Residual heat indicator o After a zone is switched off, the corresponding cooking zone indicator (6) will show the letter “H”,... -
Page 15: Safety Cut-Off
o To disable the safety lock feature, you should press the safety lock button (2) again. The safety lock neon (3) will go out and you are then able to adjust the power of any zone on the hob top. o IMPORTANT: If the appliance is switched off whilst the safety lock feature is activated, then it will still be activated the next time that you turn the appliance on. -
Page 16: Increasing The Power Level During Automatic Pre-Heating
o Use the minus button (4) to adjust the zone to the power level that you want to cook at. o When the minus button (4) is released, the decimal point will stop flashing and the power level that you have selected will appear on the cooking zone indicator (6). -
Page 17: Switching Off Automatic Pre-Heating
Switching off automatic pre-heating o If a zone is already within automatic pre- heating mode and you wish cancel it. o Press the minus button (4), the automatic pre-heating mode will then be cancelled and you can use the hob in normal operation once more. -
Page 18: Hob Guidelines
o You can adjust the time that has been set, by using the plus (10) or minus (11) buttons for the timer. o At the end of the time period that has been set, an acoustic signal will sound that lasts for 30 seconds, “00” will flash on the timer display (12) and the selected zone will switch off. -
Page 19: Cleaning And Maintenance
Especially if pointed or hard objects are allowed to fall on it with some force. o DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED. YOU SHOULD CONTACT THE BAUMATIC SERVICE DEPARTMENT IMMEDIATELY. Cleaning and maintenance Cleaning operations must only be carried out when the oven is cool. -
Page 20: After Each Use
After each use o Wipe the appliance over with a damp cloth and a little washing up liquid. o Dry the appliance by rubbing the surface with a clean cloth. Cleaning table Type of deposit Remove Remove What should I immediately? when the use to remove... -
Page 21: Using A Specialist Ceramic Hob Cleaner
Using a specialist ceramic hob cleaner It is possible to purchase specialist ceramic hob cleaner/conditioner. You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance. Installation The installation must be carried out by a suitably qualified person, in accordance with the current... -
Page 22: Unpacking The Appliance
When unpacking the appliance please check that the following items are contained within the packaging: 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 4 Spring clips 1 Sealing strip... - Page 23 o Carefully turn the hob upside down and place it on a cushioned mat. o Apply the sealing strip provided around the edge of the appliance. o The protective covering must be removed from both sides. o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture.
-
Page 24: Electrical Connection
Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage. -
Page 25: Replacing The Mains Supply Cable
Replacing the mains supply cable If the mains supply cable is damaged, then it must be replaced by an appropriate replacement which can be obtained from the Baumatic Spares Department. The mains supply cable should be replaced in accordance with the following instructions: o Switch the appliance off at the control switch. -
Page 26: My Appliance Isn't Working Correctly
* IMPORTANT: If the cooking zone does appear to be hotter than 60°C and the residual heat indicator has not come on, you should call the Baumatic Service Department. o A humming sound is heard when a cooking zone is selected. - Page 27 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee document on page 28 of...
-
Page 28: Baumatic Ltd. Conditions Of Guarantee
Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date. -
Page 29: Contact Details
Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone...
