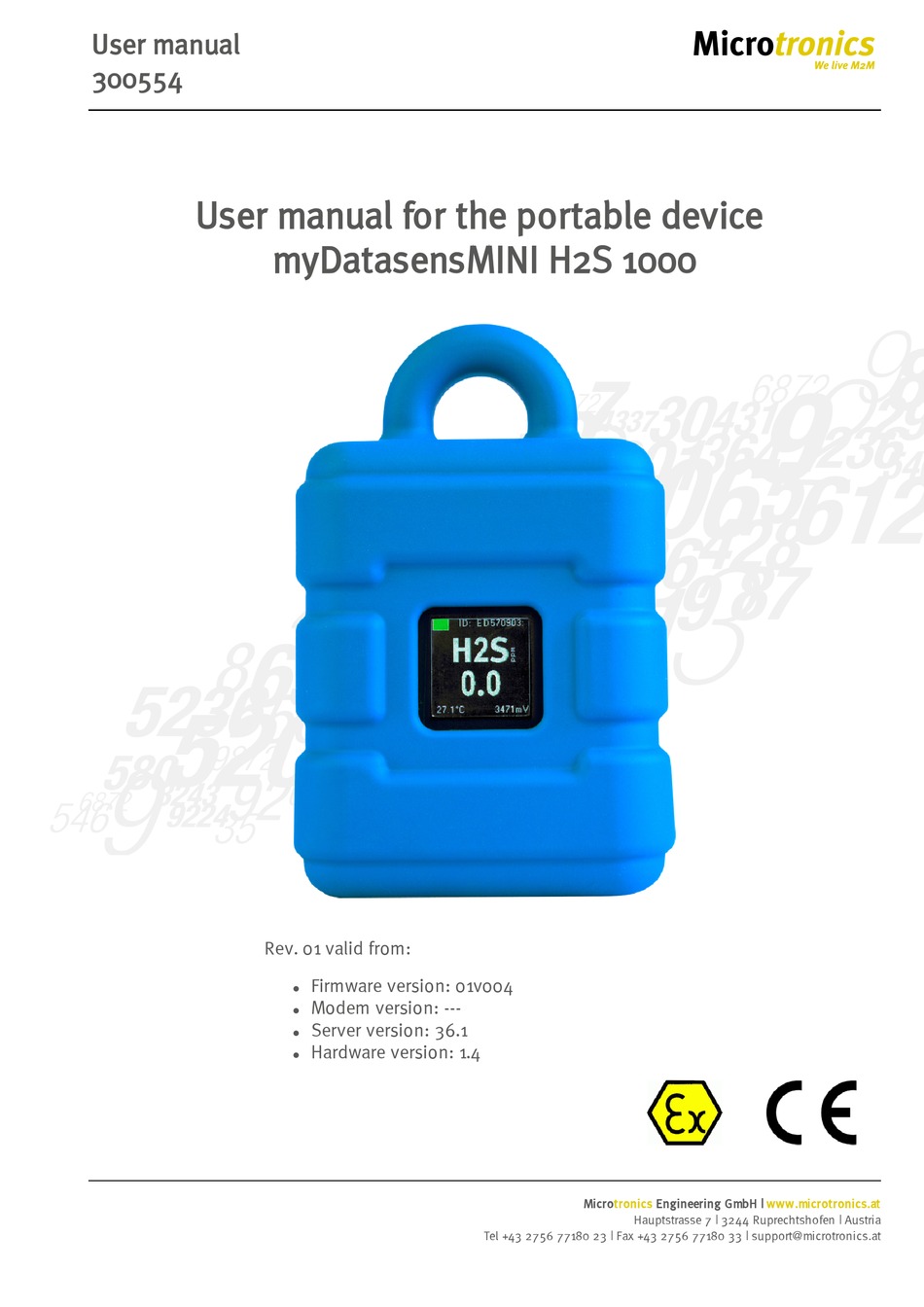

User manual
300554
User manual for the portable device
Rev. 01 valid from:
myDatasensMINI H2S 1000
Firmware version: 01v004
l
Modem version: ---
l
Server version: 36.1
l
Hardware version: 1.4
l
Microtronics
Engineering GmbH |
Hauptstrasse 7 | 3244 Ruprechtshofen | Austria
Tel +43 2756 77180 23 | Fax +43 2756 77180 33 | support@microtronics.at
www.microtronics.at

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the myDatasensMINI H2S 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Microtronics myDatasensMINI H2S 1000

Summary of Contents for Microtronics myDatasensMINI H2S 1000

  • Page 1 Rev. 01 valid from: Firmware version: 01v004 Modem version: --- Server version: 36.1 Hardware version: 1.4 Microtronics Engineering GmbH | www.microtronics.at Hauptstrasse 7 | 3244 Ruprechtshofen | Austria Tel +43 2756 77180 23 | Fax +43 2756 77180 33 | support@microtronics.at...
  • Page 3 Chapter 1 Inhaltsverzeichnis_en Chapter 1 Inhaltsverzeichnis_en User manual for the portable device myDatasensMINI H2S 1000 Chapter 1 Inhaltsverzeichnis_en Chapter 2 Declaration of conformity 2.1 Declaration of conformity - Appendix Chapter 3 Technical data Chapter 4 General specifications 4.1 Translation 4.2 Copyright 4.3 General descriptive names...
  • Page 4 8.4.1 Testing communication between myDatasensMINI H2S 1000and DeviceConfig 8.4.2 Testing communication between myDatasensMINI H2S 1000and the myDatanet server Chapter 9 User interfaces 9.1 User interface on the myDatasensMINI H2S 1000 9.1.1 Operating elements 9.1.1.1 Display 9.1.1.2 Acceleration sensor 9.2 User interface on the myDatanet-Server 9.2.1 Site configuration...

  • Page 5: Table Of Contents

    10.8 "Zero" tab 10.9 "Calibration" tab 10.9.1 "Protocol Fields" program window 10.10 "Sync" tab 10.10.1 Existing connection to the myDatasensMINI H2S 1000 10.10.2 No connection to a device 10.11 "Data" tab 10.11.1 "Measurement Data" program window 10.11.1.1 "Chart Configuration" program window 10.12 Recommended procedure...
  • Page 6 Chapter 11 myDatanet server 11.1 Overview 11.1.1 Explanation of the symbols 11.2 "Customer" area 11.3 "Site" area at customer level 11.3.1 Reports 11.3.2 Map view 11.4 Recommended procedure 11.4.1 Creating the site 11.4.2 Assigning a device to the customer Chapter 12 XML interface 12.1 General Chapter 13 Maintenance 13.1 General maintenance...
  • Page 7 Chapter 1 Inhaltsverzeichnis_en Chapter 19 Contact information Rev. 01...
  • Page 9 Chapter 2 Declaration of conformity Chapter 2 Declaration of conformity Rev. 01...
  • Page 10 2.1 Declaration of conformity - Appendix Rev. 01...
  • Page 11 Chapter 3 Technical data Chapter 3 Technical data Voltage supply Battery: 2 x Li-SOCl2 cells with a total of 34Ah Housing Material: Noryl GTX 973 / PC (housing/inspection window) Weight: 650g (with battery) Degree of protection: IP66 Dimensions (WHD): 106 x 166 x 61mm (with protective armour) Ex certification II 3G Ex nA IIB T4 Gc Operating...
  • Page 13 Chapter 4 General specifications Chapter 4 General specifications The information in this manual has been compiled with great care and to the best of our knowledge. The manufacturer, however, assumes no liability for any incorrect specifications that may be provided in this manual. The manufacturer is not responsible for direct, indirect, accidental or consequential damages which arise from errors or omissions in this manual even if advised of the possibility of such damages.
  • Page 14 1 myDatasensMINI H2S 1000 4.5 Safety instructions For the connection, commissioning and operation of the myDatasensMINI H2S 1000, the following information and higher legal regulations of the country (e.g. ÖVE), such as valid EX regulations as well as the applicable safety and accident prevention regulations for the respective application case must be observed.
  • Page 15 Chapter 4 General specifications Ensure that the safety equipment of this measurement device is not impaired. Install and use the measuring system only in the manner and method described in this manual. Important note: The manufacturer's products that are designed for use outdoors include extensive protection against penetrating moisture and dust.
  • Page 16 Do not install the device in any other way to the one described in the operating instructions. Improper use will invalidate the warranty. 4.6 Overview Front of the myDatasensMINI H2S 1000 Bottom of the myDatasensMINI H2S 1000 (view without protective armour)
  • Page 17 Chapter 4 General specifications 4.7 Intended use The portable measurement instrument is used to record H2S concentrations. The device is battery- operated. The measured and recorded data is stored on a non-volatile storage medium. This stored data can be transferred to a PC via a wireless connection (wireless M-bus). Using the software provided by the manufacturer, the data can then be transferred from the PC to a central server for further processing.
  • Page 18 4.9 Device labelling The specifications in this user manual apply exclusively to the myDatasensMINI H2S 1000 device type. The type plate is located on the rear side of the device and contains the following specifications: Name and address of the manufacturer...
  • Page 19 Chapter 4 General specifications 4.11 Storage of the product The myDatasensMINI H2S 1000does not include a special transport mode. The capacity of the installed batteries is dimensioned in such a way that the max. service life of the sensor (2 years) is covered.
  • Page 21 In the graphic below, all of the components that are part of the myDatanet are illustrated in grey. All of the other components must be provided/created by the customer. Functional principle myDatasensMINI H2S 1000 2 USB radio transmitter (wireless M-bus to USB converter) 3 PC with the DeviceConfig configuration program installed...
  • Page 22 Its data memory can be read out via a wireless connection (wireless M-bus). USB radio transmitter ( included in the scope of delivery of the myDatasensMINI H2S 1000) This hardware module is required because standard PCs and laptops do not have a wireless M-bus interface.
  • Page 23 Chapter 5 Functional principle 5.1.1 Determining the raw value The supply of the gas sensor is permanently active. In the measurement cycle (3 sec.), 16 macro measurements are completed at intervals of 50ms from which an average value is determined (sample measurement values).
  • Page 24 5.2 Determining the temperature Unlike the H2S concentration, the temperature is measured in the record interval and not the measurement cycle (3 sec.) (configurable, see ""Instrument" tab" on page 52). This only applies as long as the display is not active. If the display is active, the temperature is measured in the measurement cycle.
  • Page 25 (see "Contact information" on page 107). Note: Any claims received thereafter will not be acknowledged! 6.2 Scope of delivery The standard scope of delivery of the myDatasensMINI H2S 1000(206.143) includes: myDatasensMINI H2S 1000 USB radio transmitter (206.657) Calibration adapter Quick Guide Additional accessories such as assembly sets, etc.
  • Page 26 Support & Service Centre (see "Contact information" on page 107). The return shipment of the myDatasensMINI H2S 1000must occur in the original packaging and with freight and insurance paid to Microtronics Engineering GmbH (see "Contact information" on page 107). Insuf- ficiently cleared return shipments will otherwise not be accepted!
  • Page 27 Dimensions: Height Dimensions: Width and depth (view with protective armour) (view with protective armour) 7.2 Installing the myDatasensMINI H2S 1000 Important note: Ensure installation is completed correctly. Comply with the existing legal and/or operational directives. Improper handling can cause injuries and/or damage to the devices.
  • Page 28 The installation site must be selected according to specific criteria. The following conditions must be avoided in any case: Direct sunlight Objects that radiate intense heat (maximum ambient temperature: -10...+40°C) Objects with a strong electromagnetic field (frequency converter or similar) Corrosive chemicals or gases (with the exception of H2S that is to be measured) Mechanical impacts Direct installation on paths or roads...
  • Page 29 1 Niro shackle (206.325) 2 myDatasensMINI H2S 1000 1. Use the Niro shackle (206.325), to attach the myDatasensMINI H2S 1000 to a rung of the channel ladder or a similar fastening point in accordance with the figure "Detailed view of a suspended installation "...
  • Page 31 Important note: Please check the time and date settings (incl. time zone setting) on your PC, as these are used to synchronise the system time of the myDatasensMINI H2S 1000. You will need the DeviceConfig configuration program to commission the myDatasensMINI H2S 1000.
  • Page 32 4. Configure the created site according to your requirements (see "Site configuration" on page 37). 5. Activate the synchronisation between myDatasensMINI H2S 1000, DeviceConfig and the myDa- tanet server. For this purpose, use the button illustrated below that is located in the "Sync"...
  • Page 33 1. Use the DeviceConfig configuration program to adjust the record interval to your require- ments (see ""Instrument" tab" on page 52). 2. Activate the synchronisation between myDatasensMINI H2S 1000 and DeviceConfig . For this purpose, use the button illustrated below that is located in the "Sync" tab of the DeviceConfig configuration program (see ""Sync"...
  • Page 34 4. Link the myDatasensMINI H2S 1000with the created site (see "Site" on page 38 or "Creating the site" on page 80 ). 5. Activate the synchronisation between myDatasensMINI H2S 1000, DeviceConfig and the myDa- tanet server. For this purpose, use the button illustrated below that is located in the "Sync"...
  • Page 35 (see "User interface on the myDatanet-Server" on page 37) for which the web address is available from your responsible sales partner. The configuration settings can also be displayed via the web interface. 9.1 User interface on the myDatasensMINI H2S 1000 9.1.1 Operating elements Operating elements...
  • Page 36 (H2S concentration and temperature) and various status information. The device cannot be operated via the display. The display is activated by tilting the myDatasensMINI H2S 1000 by the horizontal axis (see "Acceleration sensor" on page 37). The display then remains active for 30sec.
  • Page 37 9.1.1.2 Acceleration sensor To activate the display of the myDatasensMINI H2S 1000, tilt the device by the horizontal axis in accordance with the following diagrams. Changing between the two positions of the device should be completed in a single movement (i.e. do not hold in second position).
  • Page 38 Click on the name of the site in the list of sites to get to the input screen for configuring the site (see "myDatanet Server Manual " 805002). 9.2.1.1 Site Customer Specifies to which customer the site is assigned. icon Assign site to another customer Name Site designation (not relevant for the device or data assignment)[2-50 characters]...
  • Page 39 Chapter 9 User interfaces 9.2.1.3.1 Cross sensitivity of the H2S sensor Concentration Measurement value on the H2S sensor Carbon monoxide 300ppm 6ppm Hydrogen 10,000ppm <15ppm Sulphur dioxide 5ppm <1ppm Hydrogen cyanide 10ppm -1.4ppm to -0.5ppm Nitric oxide 35ppm 0ppm Hydrochloric acid 5ppm 0ppm Nitrogen dioxide...
  • Page 40 9.2.1.6 FTP export settings Note: This configuration section is only visible if the "FTP Agent Extended" licence for the myDatanet-Server has been enabled. FTP export FTP export deactivated profile "Name of an List with the FTP export profiles that were created on the FTP export myDatanet server (for creating an FTP export profile, see profile"...
  • Page 41 Chapter 9 User interfaces Last connection In each case, the last time stamp of the affected operation Last disconnection Last transmission error Hardware Reserved for extensions version Rev. 01...
  • Page 43 The DeviceConfig configuration program can be downloaded free of charge from the following website: www.microtronics.at/deviceconfig The tool is used for configuration, maintenance, fault analysis and synchronisation purposes. It is compatible with all myDatanet devices equipped with a USB interface or wireless M-bus interface.

  • Page 44: Functional Principle

    The DeviceConfig configuration program communicates wirelessly (wireless M-bus) using the USB radio transmitter (206.657) with the myDatasensMINI H2S 1000. The DeviceConfig configuration program includes the followingDeviceConfig functions: Synchronisation of measurement data and configuration between device and server (see ""Sync"...

  • Page 45: Usb Radio Transmitter

    The USB radio transmitter (206.657) is included in the scope of delivery of the myDatasensMINI H2S 1000. It is required because standard PCs and laptops do not have a wireless M-bus interface that is necessary for communication with the myDatasensMINI H2S 1000. USB radio transmitter...

  • Page 46: Installation

    10.4 Installation The following chapter describes the installation process in Windows 7. 1. Execute the "InstDeviceConfig.exe" file to start the installation process. Note: Only connect the device or USB radio transmitter (206.657) to your PC once the installation process has completed as the required USB drivers are only installed during this process. DeviceConfig setup wizard 2.

  • Page 47: Installing The Drivers For The Usb Radio Transmitter

    3. Once the following screen is displayed, close the installation process by clicking on the "Finish" button. Complete the setup 10.4.1 Installing the drivers for the USB radio transmitter Note: Information on the USB radio transmitter (206.657) is provided in chapter "USB radio transmitter "...

  • Page 48: Menu Of The Deviceconfig

    10.5 Menu of the DeviceConfig 10.5.1 Settings "Settings" menu item 10.5.1.1 Options The settings for the COM port to which the USB radio transmitter (206.657) is connected can be specified and the automatic search for the available firmware versions can be activated or deactivated via the "Settings ->...

  • Page 49: Establishing A Connection To A Device With A Wireless M-Bus Interface

    Important note: Please check the time and date settings (incl. time zone setting) on your PC, as these are used to synchronise the system time of the myDatasensMINI H2S 1000. The USB radio transmitter (206.657) is required to establish a connection to a device with a wireless M-bus interface.
  • Page 50 4. Select your device based on the serial number from the list of devices found. Important note: Please note that the range of the radio transmitter of the myDatasensMINI H2S 1000 is max. 5m depending on the environmental conditions. List of devices found...
  • Page 51 5. Wait until the DeviceConfig has received the configuration of the device. Depending on the device, additional tabs may be displayed. "Instrument" tab when actively connected to the myDatasensMINI H2S 1000 1 Wireless signal level [dBm] Note: To ensure a stable connection, the wireless signal level should be higher than -70dBm , i.e. for example -65dBm .

  • Page 52: Instrument" Tab

    10.7 "Instrument" tab The myDatasensMINI H2S 1000 is configured via this tab. "Instrument" tab 1 Time between measurement data recordings 2 Button for transferring the changed configuration to the myDatasensMINI H2S 1000 Rev. 01...

  • Page 53: Zero" Tab

    10.8 "Zero" tab This tab enables you to compensate for offsets of the zero point. The zero point adjustment affects the offset determined during calibration. The slope determined during the calibration remains unchanged. Detailed instructions on completing the zero point adjustment are provided in chapter "Zero point adjustment"...

  • Page 54: Calibration" Tab

    Hydrogen sulphide is a neurotoxic substance that can cause poisoning and even death depending on the concentration. This tab enables the calibration of the myDatasensMINI H2S 1000 that must be completed every 6 months at the latest. The remaining days until the next calibration is due are shown on the display of the device.
  • Page 55 "Calibration" tab 1 Lower reference point (target value in ppm) 7 Button for adopting the lower reference point 2 Upper reference point (target value in ppm) 8 Button for adopting the upper reference point 3 Raw value 9 Timer to determine the remaining waiting time 4 H2S measurement value (calculated with the 10 starts/stops the timer...

  • Page 56: Protocol Fields" Program Window

    10.9.1 "Protocol Fields" program window Additional information, that can be added when creating the calibration protocol, can be entered via this program window. Dialogue window to enter additional information Rev. 01...
  • Page 57 Customer Name of the customer Customer no. (ERP) AB/RMA no. ERP number of the Order number or RMA number that the device is assigned to customer Gauger Name of the gauger who completed the calibration. The folder specified in the "Path for signatures"...

  • Page 58: Sync" Tab

    10.10 "Sync" tab This area is designed to synchronise measurement data and configurations between myDatasensMINI H2S 1000, DeviceConfig and myDatanet server. The "Sync" tab is also available if there is no connection (USB or wireless M-bus) to a device. Detailed instructions on completing the synchronisation is provided in chapter "Synchronisation with the DeviceConfig configuration program"...

  • Page 59: Existing Connection To The Mydatasensmini H2S 1000

    10.10.1 Existing connection to the myDatasensMINI H2S 1000 If there is an existing connection to the myDatasensMINI H2S 1000, there is an option to only synchronise the measurement data and configurations with the DeviceConfig configuration program for local processing or to transfer them to the myDatanet server. In the event that your PC is not...

  • Page 60: No Connection To A Device

    DeviceConfig configuration program and the internal memory of the myDatasensMINI H2S 1000. Only all of the data can be deleted. Selective deletion of individual data is not possible.

  • Page 61: Measurement Data" Program Window

    DeviceConfig configuration program and the internal memory of the myDatasensMINI H2S 1000. 4 End time for the data export 9 Button to start the data export 5 End date for the data export 10.11.1 "Measurement Data"...
  • Page 62 window enables you to export the visible measurement data as a *.tsv file and save the illustrated measurement value graphic as a *.png file. You can use the "Reports" of the myDatanet server to create a more comprehensive report of the recorded measurement data (see "myDatanet Server Manual "...

  • Page 63: Chart Configuration" Program Window

    10.11.1.1 "Chart Configuration" program window This program window is used to select the two measurement channels for which the data should be displayed in the "Measurement Data" program window. It is not possible to change the title of the measurement channels, the measurement value unit or the minimum and maximum value for the x- axis of the diagram.

  • Page 64: Recommended Procedure

    10.12 Recommended procedure 10.12.1 Synchronisation with the DeviceConfig configuration program The following process describes how you can read out the data from the myDatasensMINI H2S 1000using the DeviceConfig configuration program so that it can be processed locally. If you wish to synchronise the data with the myDatanet server at a later date, this is possible at any time (see "No connection to a device"...
  • Page 65 5. Remove the tick in the "Sync with server" checkbox. This checkbox is only visible if your PC is currently connected to the Internet. "Sync" tab when connected to the myDatasensMINI H2S 1000 1 Checkbox to determine whether the measurement data and configurations should also be synchronised with the server when clicking on the Sync button.
  • Page 66 H2S 1000" on page 65). When you read out the data for the first time from a myDatasensMINI H2S 1000, you can choose whether all of the saved data or only the data up to a certain date are read out from the myDatasensMINI H2S 1000.

  • Page 67: Synchronisation With The Mydatanet Server

    "Creating the site" on page 80. Another prerequisite for this is that your PC is connected to the Internet while reading out the data from the myDatasensMINI H2S 1000. If this is not possible, follow the procedure described in chapter "No Internet connection when reading out the data"...
  • Page 68 4. Additional tabs are displayed if the connection was established successfully. Now select the "Sync" tab. myDatasensMINI H2S 1000specific tab Rev. 01...
  • Page 69 5. Place a tick in the "Sync with server" checkbox. This checkbox is only visible if your PC is currently connected to the Internet. "Sync" tab when connected to the myDatasensMINI H2S 1000 1 Checkbox to determine whether the measurement data and configurations should also be synchronised with the server when clicking on the Sync button.
  • Page 70 H2S 1000" on page 69). When you read out the data for the first time from a myDatasensMINI H2S 1000, you can choose whether all of the saved data or only the data from a certain date onwards are read out from the myDatasensMINI H2S 1000.
  • Page 71 Selecting how to proceed with the locally saved data (only if the device has been assigned a new or different site) 1 The locally saved data is not assigned to the new site. Only the measurement data that is read out from the current point in time is assigned to the new site. After clicking on "OK", the option to select from which time period onwards the data should be read out opens.

  • Page 72: No Internet Connection When Reading Out The Data

    This procedure is recommended, if an Internet connection cannot be established on the site while reading out the data from the myDatasensMINI H2S 1000. During this procedure, the data on the site is initially only synchronised with the DeviceConfig configuration program. The data is then transferred to the myDatanet server at a later date when your PC has re-established a connection to the Internet.
  • Page 73 4. Additional tabs are displayed if the connection was established successfully. Now select the "Sync" tab. myDatasensMINI H2S 1000specific tab 5. Click on the button to trigger synchronisation. "Sync" tab when connected to the myDatasensMINI H2S 1000although there is no connection to the myDatanet server 1 Button to trigger synchronisation Rev.
  • Page 74 When you read out the data for the first time from a myDatasensMINI H2S 1000, you can choose whether all of the saved data or only the data up to a certain date are read out from the myDatasensMINI H2S 1000. During the following synchronisation processes, the DeviceConfig configuration program always reads out the data from the last synchronised measurement data record.
  • Page 75 9. Select the "Sync" tab and click on the button to trigger synchronisation. "Sync" tab without connection to a device 1 Button to trigger synchronisation During this process, the measurement data and configurations of all of the devices that the DeviceConfig configuration program has saved locally are synchronised with the myDatanet server.

  • Page 77: Chapter 11 Mydatanet Server

    Chapter 11 myDatanet server Chapter 11 myDatanet server Note: All of the screenshots show version 39.12 of the myDatanet server using the standard colour scheme. Newer versions may include minor changes to the appearance of the server. 11.1 Overview Overview of the myDatanet server 1 Freely selectable logo 5 Opens the screen to input the global settings for the server...

  • Page 78: Customer" Area

    11.2 "Customer" area Overview of the "Customer" area 1 Current "Overview map" on which the sites can be placed 2 Adds a new customer 3 Opens the input screen for configuring the customer 4 Deletes the customer 5 Comment that can be entered in the configuration of the customer 6 If a default report was defined, the default report is accessed by clicking on the name of the customer.

  • Page 79: Site" Area At Customer Level

    Chapter 11 myDatanet server 11.3 "Site" area at customer level Overview of the "Sites" area at customer level 1 Symbol via which an image file can be loaded on to the server as a "Map" To remove the "Map" again, open the upload dialogue again and click on "Submit" without selecting an image file beforehand.

  • Page 80: Reports

    11.3.1 Reports The reports provide a variety of options to display graphs of the data on the web interface of the myDatanetserver or to download the data from the myDatanet server. Detailed instructions on creating and handling the reports is provided in myDatanet Server Manual (805002). 11.3.2 Map view The map view provides an overview of the geographic position of the sites.

  • Page 81: Assigning A Device To The Customer

    2 Creating a new site 4. Link the site with the myDatasensMINI H2S 1000 by selecting the serial number. If the serial number of your device is not included in the list, you must first of all assign the device to the customer (see "Assigning a device to the customer"...
  • Page 82 1000in the search field. If your device is not included in the list, you may have to synchronise the myDatasensMINI H2S 1000, DeviceConfig and myDatanet server (see ""Sync" tab" on page 58) or the device may already be assigned to a customer. More detailed information on this is provided in myDatanet Server Manual (805002).

  • Page 83: Chapter 12 Xml Interface

    A specially developed PC program or web interface can, for example, be used for this purpose. A detailed description of the XML interface is provided in the Programming user manual for the portable device myDatasensMINI H2S 1000(300555). Rev. 01...

  • Page 85: Chapter 13 Maintenance

    Chapter 13 Maintenance Chapter 13 Maintenance Important note: To prevent any damage to the device, the work described in this section of the instructions must only be performed by qualified personnel. The device must be deenergised before any maintenance, cleaning and/or repair work. 13.1 General maintenance Regularly check the myDatasensMINI H2S 1000for mechanical damage.

  • Page 86: Calibration And Zero Point Adjustment

    remaining days until the next calibration is automatically reset when the calibration process is com- pleted. The counter for the remaining days until the next service is reset by the manufacturer or serv- ice partner during the maintenance work. 13.2.1 Calibration and zero point adjustment CAUTION: The work described in this section of the instructions must only be performed by qualified personnel trained to handle H2S calibration gas.

  • Page 87: Calibration Guidelines

    Chapter 13 Maintenance 13.2.1.2.1 Calibration guidelines Important note: Employees must only use those gases or gas concentrations that they are trained to use according to the relevant risk potential. Alcohol-based cleaning agents must not be used. The following guidelines apply in addition if the calibration is completed in a specially equipped cal- ibration room: Important note: No one is allowed to enter the calibration room without training.
  • Page 88 1. Connect the USB radio transmitter (206.657) to the USB interface on your PC. 2. Start the DeviceConfig configuration program. DeviceConfig 3. Connect the myDatasensMINI H2S 1000to the PC using the USB radio transmitter (206.657) supplied (see "Establishing a connection to a device with a wireless M-bus interface" on page 49).
  • Page 89 Chapter 13 Maintenance "Calibration" tab 1 Lower reference point (target value in 7 Button for adopting the lower reference ppm) point 2 Upper reference point (target value in 8 Button for adopting the upper reference ppm) point 3 Raw value 9 Timer to determine the remaining waiting time 4 H2S measurement value (calculated with...
  • Page 90 6. Place the myDatasensMINI H2S 1000on the calibration adapter, that is included in the scope of delivery of the myDatasensMINI H2S 1000, and that should already be connected to the gas extraction station (if calibrated in a calibration room) or the calibration gas cylinder (if cal- ibrated with the Calibration set H2S 30ppm ).
  • Page 91 Chapter 13 Maintenance 7. Ensure that the concentration value of the gas that you are using for the calibration is entered for the upper reference value (recommendation: 30-150ppm; 30ppm when using the Cal- ibration set H2S 30ppm ). Set the flow controller for the calibration gas to 0.5 l/min. and gas the device for five minutes.
  • Page 92 9. The "Print" button is used to generate the calibration protocol that must always be created to ensure traceability. After pressing the "Print" button, a dialogue window will appear in which additional information can be added. The report is printed once this window is closed by selecting "OK".
  • Page 93 Chapter 13 Maintenance Path for signatures Folder where the PDFs with the digitised signatures of Opens a dialogue win- the gaugers are located. dow to select the folder Last cal: Time of the last calibration (set automatically, although it can be edited) Next cal: Time when the next calibration should be completed (suggested automatically, although it can be edited)

  • Page 94: Zero Point Adjustment

    13.2.1.3 Zero point adjustment The zero point adjustment is used to compensate for adjustments of the zero point. The zero point adjustment affects the offset determined during calibration. The slope determined during the cal- ibration remains unchanged. Note: All of the screenshots show version 4.13 of the DeviceConfig configuration program. Newer versions may include minor changes to the appearance of the program.
  • Page 95 Chapter 13 Maintenance 5. Ensure that no H2S gas reaches the sensor. Wait until the displayed ppm value is stable and then click on "Zero". "Zero" tab Rev. 01...

  • Page 97: Chapter 14 Removal/Disposal

    Chapter 14 Removal/disposal Chapter 14 Removal/disposal Dispose of the device in accordance with the locally valid environmental regulations for electronic products. Rechargeable batteries and/or battery packs may not remain in the myDatasensMINI H2S 1000after discharging. Ensure that the used rechargeable batteries and/or battery packs are disposed of in an environmentally proper way.

  • Page 99: Chapter 15 Troubleshooting And Repair

    Chapter 15 Troubleshooting and repair Chapter 15 Troubleshooting and repair 15.1 General problems Problem Cause/solution Device does not Battery pack is completely discharged respond (nothing appears on the display). Communication Reduce the distance between the myDatasensMINI H2S 1000and USB problems (between radio transmitter , and try to avoid obstacles such as walls and similar.

  • Page 101: Chapter 16 Spare Parts And Accessories

    Chapter 16 Spare parts and accessories Chapter 16 Spare parts and accessories 16.1 Assembly sets Description Quantity Order number Niro shackle 206.325 16.2 Other accessories Description Quantity Order number USB radio transmitter 206.657 USB extension cable USB-A/USB-A 1,8m 206.664 Protection casing myDatasensMINI H2S 206.665 Calibration set H2S 30ppm 206.810...

  • Page 103: Chapter 17 Document History

    Chapter 17 Document history Chapter 17 Document history Rev. Date Changes 23.03.2015 First version Rev. 01...

  • Page 105: Chapter 18 Glossary

    Chapter 18 Glossary Chapter 18 Glossary NaN value The myDatanet  uses special encoding to display different error statuses in the measurement values, for example. By setting a measurement value to "NaN", it is clearly marked as invalid and is thus not used for any further calculations. In the measurement value graphs, a measurement value that has been set to "NaN"...
