Zaxcom TRXLA3

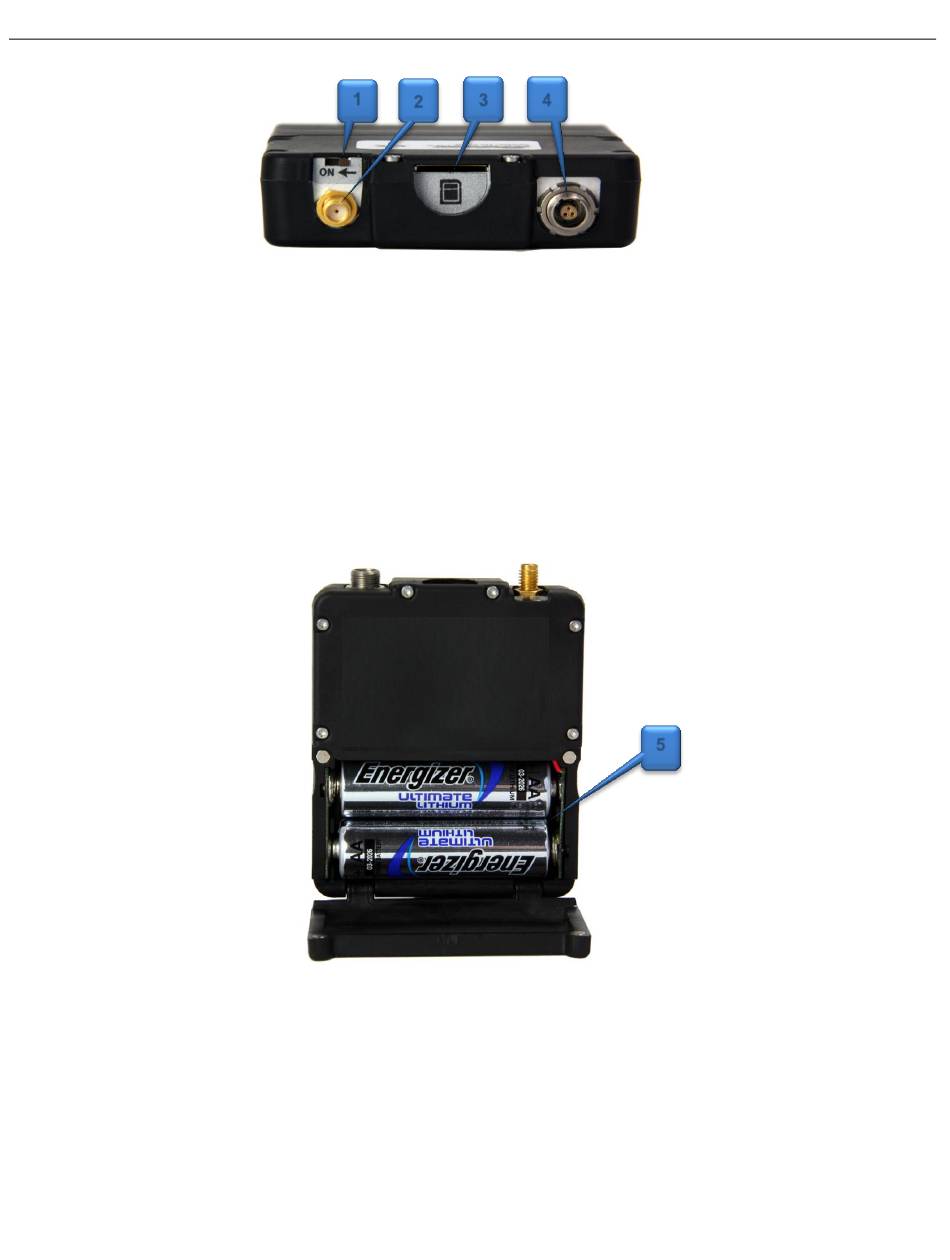

1. Power Switch
2. SSMA Antenna Connection
3. Media Slot Media Slot
Inserting a Micro SD card:
With the OLED screen of the transmitter facing you, turn the card so the finger contacts are facing you
and pointing down toward the slot. Insert the card into the slot and press it down until you here a slight
click. To remove it, press the card in until you hear the same click again.
4. Microphone / Input connector (3 pin Lemo)
5. Battery Compartment
TRXLA3 uses 2 AA batteries. Alkaline, Lithium or NiMH batteries can be used.
1
3
2
5
4
5
n
n
n
n
n
n
n
l;
l
m
;l
m
1
1
1
1
1
1
1
1
1
1
Transmitter Layout
