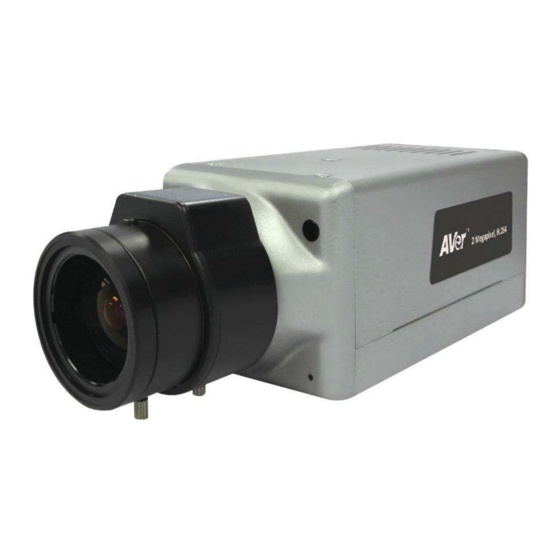

- Page 1 SF2111H IP Camera Series SF2111H-R/SF2111H-BR SF2111H-DR/SF2111H-DVR Quick User Guide...
-
Page 2: Table Of Contents
Table of Contents Camera Introduction ....................1 Box Type IP Camera (SF2111H-R) ..............1 Package Contents ..................1 Hardware Installation ..................2 Factory Default ....................3 Bullet Type IP Camera (SF2111H-BR) ..............4 Package Contents ..................4 Hardware Installation ..................5 Factory Default .................... - Page 3 Connecting the IP Camera ..................28 COPYRIGHT ........................29 NOTICE ..........................29 WARNING .......................... 29 Limited Warranty ......................30 Governing Law and Your Rights ..................31...
-
Page 5: Camera Introduction
Before Installation Before installation, please be sure to read this quick installation guide and user’s manual carefully to complete the installation. Camera Introduction The following section introduces package contents, hardware installation, factory default reset, and SD card Compatibility List of each type camera. 1. -
Page 6: Hardware Installation
Item Descriptions 5. CD (User’s Manual and Quick Guide included) **If any of the above items are missing, please contact your dealer immediately. 1.2 Hardware Installation Connect power adapter or use PoE to eliminate the use of power cable. Connect IP camera to PC or network with Ethernet cable. -
Page 7: Factory Default
1.3 Factory Default 1. To recover the default IP address and password, please follow the following steps. 2. Remove power, press and hold the button in the back of IP camera. Reset button 3. Power on the IP camera. Don’t release the button during the system booting. 4. -
Page 8: Bullet Type Ip Camera (Sf2111H-Br)
2. Bullet Type IP Camera (SF2111H-BR) Package Contents Item Descriptions 1. SF2111H-BR 2. Stand (The stand is well assembled while shipped out) 3. Accessory pack 4. Ethernet cable 5. RJ45 socket 6. Power Adapter(DC 12V /1A)(Optional) -
Page 9: Hardware Installation
Item Descriptions 7. CD (User’s Manual and Quick Guide included) **If any of the above items are missing, please contact your dealer immediately. Hardware Installation Connect a power adapter and IP camera to PC or local network. The SF2111H-BR is equipped with an external vari-focal lens controller. Please adjust “ZOOM”... -
Page 10: Factory Default
I/O Control Instruction I/O terminal connector – used in application, for e.g., motion detection, event triggering, alarm notifications. It provides the interface to: Digital Input (GND+Alarm) : An alarm input for connecting devices that can toggle between an open and closed circuit, for 1. -
Page 11: Dome Type Ip Camera
3. Dome Type IP Camera Package Contents 3.1.1 SF2111H-DR Item Descriptions SF2111H-DR Accessory pack RJ45 socket Power Adaptor (DC 12V /1A) (Optional) CD (User’s Manual and Quick Guide included) **If any of the above items are missing, please contact your dealer immediately. 3.1.2 SF2111H-DVR Item... - Page 12 1. SF2111H-DVR 2. Accessory pack 3. RJ45 socket 4. Power Adaptor(DC 12V/1A) (Optional) 5. CD (User’s Manual and Quick Guide included) **If any of the above items are missing, please contact your dealer immediately.
-
Page 13: Hardware Installation
Hardware Installation 3.2.1 SF2111H-DR 1. Connect a power adapter and IP camera to PC or local network. 2. 3-Axis Gimbals Adjustments Pan: 172° Tilt: 30°~90° Rotation: 180 ° Once the users open the case, the gimbals adjustment offers the convenience method to install on the wall. - Page 14 3. Installation steps (1) Use screws to lock the bottom of camera to the ceiling or the wall. (2) Use 3-Axis to adjust the lens angle. (3) Close the dome cover. (4) Tighten the screw on the cover to fix it. I/O Control Instruction I/O terminal connector –...
-
Page 15: Sf2111H-Dvr
3.2.2 SF2111H-DVR 1. Remove the dome cover, and you will see the structure as below. Line out MIC In Video microSD 2. Connect power adaptor, then connect the IP camera to PC or network. Set up the network configurations according to the network environment. The following picture shows a DC 12V connector for adapter jack plug. - Page 16 3. Installation Tips In order to ensure IP66 waterproof level, please install the vandal dome according to the instruction. a. The Unused cable outlet hole must be closed, and the waterproof connector on the used hole must be locked closely b.
- Page 17 e. Use the 3-Axis bracket to adjust the camera to appropriate angle. f. Before you close the dome cover, make sure that the black rubber band sticks to the inside of the cover completely. Crook or uneven rubber band may cause the waterproof defective. g.
- Page 18 4. I/O Interface I/O Connection a. Please connect the GND & DO pin to the external relay (buzzer) device. b. Please connect the GND & DI pin to the external trigger device c. I/O PIN definition GND (Ground): Initial state is LOW DO (Digital Output): DC 5V DI (Digital Input): Max.
-
Page 19: Factory Default
Factory Default 3.3.1 SF2111H-DR 1. To recover the default IP address and password, please follow the following steps. 2. Remove power, and press and hold the button. Please refer to the picture below. Reset button 3. Power on the camera. Don’t release the button during the system booting. 4. -
Page 20: Sf2111H-Dvr
3.3.2 SF2111H-DVR 1. To recover the default IP address and password, please follow the following steps. 2. Remove power and Ethernet cable, press and hold the button for 10 sec. Please refer to the picture below. 3. Connect power and Ethernet cable to the camera again. Power on the camera. Don’t release the button during the system booting. -
Page 21: Sd Card Compatibility List
4. SD card Compatibility List SF2111H series is compliant with microSD/SDHC card and to ensure recording quality, and please use memory cards over 2G and Class 4 above (Max. 32G) microSD/SDHC card SD/SDHC Transcend SDHC class4 16GB Transcend SDHC Class 4 16GB... -
Page 22: Monitor Setting
Monitor Setting 1. Right-click on the desktop. Select “ Properties” 2. Change “Color quality” to “Highest (32-bit)”. -
Page 23: Ip Assignment
III. IP Assignment There are two ways to find IP Camera: − Finding IP Camera by using “NXU Lite recording software” − Finding IP Camera by using “IP installer” Finding IP Camera by using “NXU Lite recording software” 1. The NXU Lite software is in the attached software CD. Before launching it, please install the software first. - Page 24 3. Click “Setup” button. 4. Click “Add IPCam” button. 5. Select “IP Camera” item.
- Page 25 6. Key in IP Camera’s ID and Password (default is admin/admin) and click “Auto Search” to find camera. 7. In Search Result window, click it the IP camera model that user has purchased (Please ignore ONVIF connection item); the camera is in red text that is configurable. User can double-click on the camera is in red text and configure the IP camera’s setting;...
-
Page 26: Finding Ip Camera By Using "Ip Installer
Finding IP Camera by using “IP installer” 1. Use the software, “IP Installer” to assign the IP address of the IP camera. The software is in the attached software CD. 2. IP installer supports two languages IPInstallerCht.exe: Traditional Chinese version IPInstallerEng.exe: English version 3. - Page 27 IP Installer configuration: 6. IP Installer will search all IP cameras connected on the LAN. The user can click “Search Device” to search again. 7. Click one of the IP cameras listed on the left side. The network configuration for this IP camera will show on the right side.
-
Page 28: Using Dhcp Server/Router Network
Using DHCP Server/Router Network To use DHCP, please check DHCP and click “Submit” then click “OK”. It will apply the change and reboot the Device. Please left-click the mouse twice on a selected IP camera in “Device lists” in IP Installer. Upon doing so, the Internet Explorer browser should open. -
Page 29: Using Non-Dhcp Server/Router Network
Using NON-DHCP Server/Router Network In Non-DHCP server/router network, the static IP address must be assigned to the device each time when adding another IP camera to the network; the default IP address of the current one must be changed to avoid conflict. Please make sure the Subnet of the PC’s IP address and the IP camera’s IP address are the same. - Page 30 IP camera IP addresses: 8. A quick way to access remote monitoring is to left-click the mouse twice on a selected IP camera in “Device lists” in IP Installer. Upon doing so, the Internet Explorer browser should open.
- Page 31 9. Then, please key in the default “User name” and “Password”, both of which are “admin”.
-
Page 32: Connecting The Ip Camera
IV. Connecting the IP Camera Launch the Internet Explorer browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the”ID” and “Password”. The default”ID” and “Password” are both “admin”. Once connected to the IP camera, the following program interface will appear. -
Page 33: Copyright
© 2012 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form, or by any means without the prior written permission of AVer Information Inc. is prohibited. AVer Information Inc. -
Page 34: Limited Warranty
You as the original purchaser. Except for the foregoing, the Product is provided “AS IS.” In no event does AVer warrant that You will be able to operate the Product without problems or interruptions, or that the Product is suitable for your purposes. Your exclusive remedy and the entire liability of AVer under this paragraph shall be, at AVer’s option, the repair or replacement... -
Page 35: Governing Law And Your Rights
Governing Law and Your Rights This warranty gives you specific legal rights; You may also have other rights granted under state law. These rights vary from state to state.
