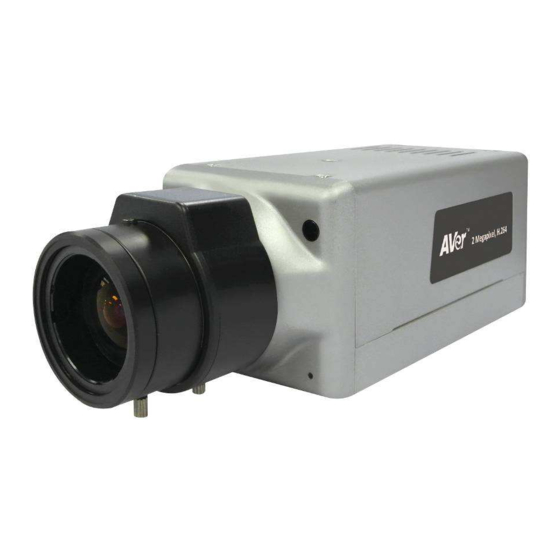

SF2012H/SF2111H series IP Cameras

1. Connects the IP camera to switch/hub and power on first.

2. Make sure the IP camera is in factory default setting. Please refer to IP camera's

user manual for resetting factory default.

3. The switch/hub is that connects with IP camera and DVR/NVR, please turn off

DHCP function if switch/hub has enabled before.

AVer DVR/NVR can connect up to 4 IP cameras through the LAN network connection and without any

configuration.

The following lists are supported DVR, NVR, and IP camera:

DVR

NVR

IP Camera

For 4/8/16CH EH Nano/Nano

going to connect the IP camera.

Power on the DVR unit and login the DVR system. Next, select Setup >> Camera in preview

mode.

In Camera setting, select the channel that wants to connect IP camera and mark the Enable to

enable the channel, then, select the camera Input is IP camera. Then, click OK to save the

configuration.

AVer DVR/NVR

Quick Installation Guide

4/8/16CH EH Nano/Nano

EXR6004 mini

SF2012H series, SF2111H series

series DVR, please do the pre-configuration on the channel that is

series

Table of Contents

Need help?

Do you have a question about the SF2012H Series and is the answer not in the manual?

Page 1 3. The switch/hub is that connects with IP camera and DVR/NVR, please turn off DHCP function if switch/hub has enabled before. AVer DVR/NVR can connect up to 4 IP cameras through the LAN network connection and without any configuration. The following lists are supported DVR, NVR, and IP camera:...
Page 2 Next, power on the DVR/NVR unit. Then, DVR/NVR will start to search and detect the SF2012H series/SF2111H series IP camera on your LAN network. When user sees the video on surveillance monitor, it means DVR/NVR and IP camera has completed connection. © 2012 AVer Information Inc. All rights reserved.
