Carbide 3D BitRunner V2 Quick Start Manual page 6

1.4 Connect the BitRunner V2 to the Control Pendant
Use the flat black Ethernet cable to connect the BitRunner V2 to the control pendant. The two ends of the
cable are interchangeable. See Figure 4.
1. Plug one end of the Ethernet cable into the Ethernet jack on the control pendant.
a. The clear latch and black strain-relief boot face up.
b. Press firmly to fully seat the connector. You will hear the latch click into place.

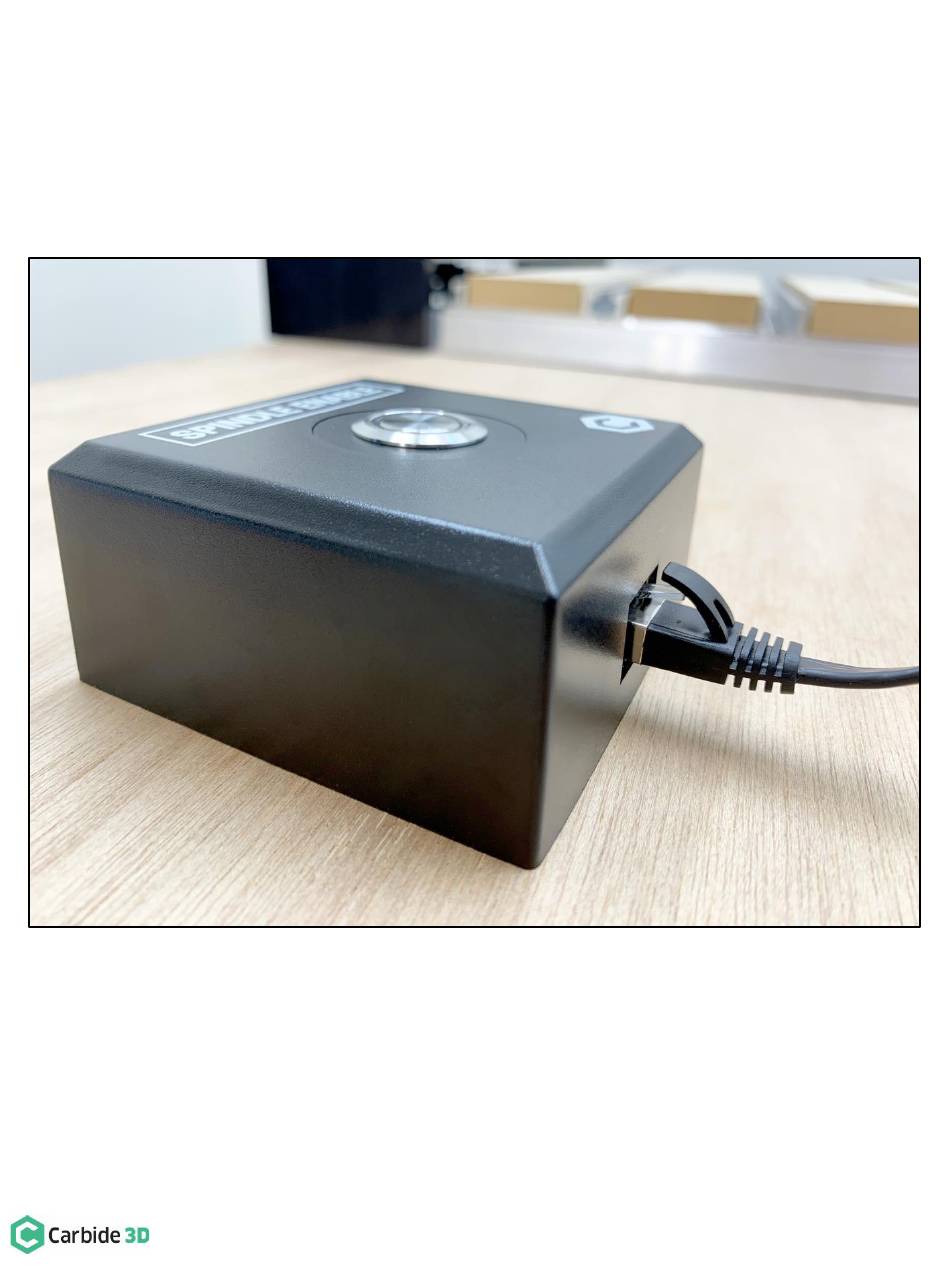

Figure 4
support@carbide3d.com docs.carbide3d.com
08/19/2021 v1.0
6
