1.3.1 Connect the Male End to the BitRunner V2
1. Plug the male end of the logic cable into the 6-pin female port on the top of the BitRunner V2. See
Figure 2.
a. The black plastic latch on the side of the connector faces RIGHT.
b. Make sure the connector is fully seated. You will hear the latch click into place.

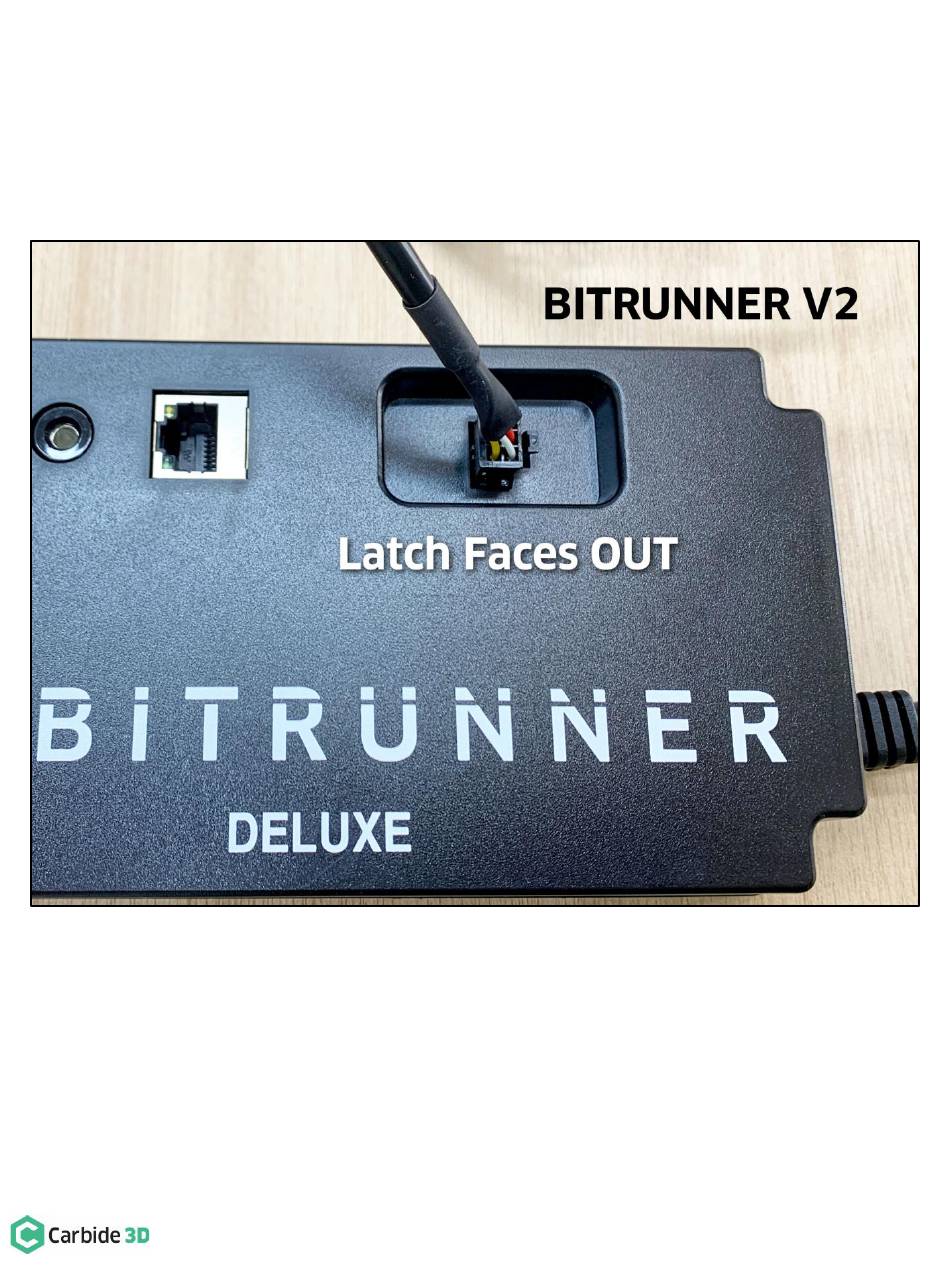

Figure 2
