1.3.2 Connect the Female End to the Controller
WARNING: There is a small triangular-shaped peg on one side of the female connector which must
face OUT. The peg is quite small but you will be able to feel it easily with your fingers.
The logic cable has reverse-voltage protection to prevent damage to the controller and BitRunner V2
in the event it is incorrectly plugged in. However, if the cable is plugged in incorrectly, the
BitRunner V2 will not operate.

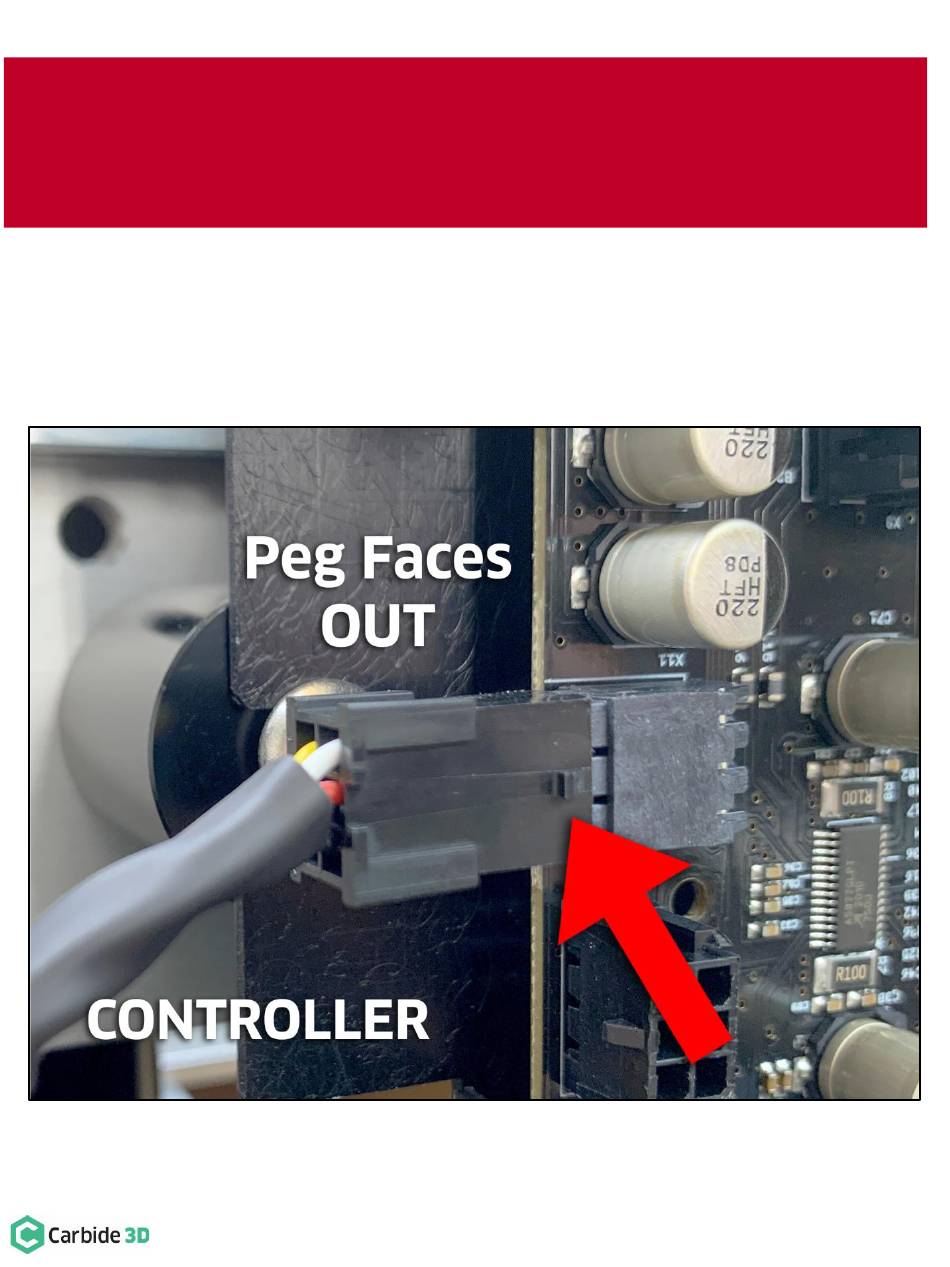

1. Plug the cable's female end into the 6-pin male BitRunner V2 connector protruding from the front-
end of the controller. See Figure 3.
a. The small triangular peg faces OUT (away from the rail).
b. The connector fits tightly. Press in and down to get it to seat fully.
Figure 3
