- Page 1 Home 4G ™ Cellular Signal Booster Need help? https://cellphonesignalbooster.us Customer Support 800-501-3153 Mon.- Fri. Hours: 7 am to 6 pm MST...
-
Page 2: Table Of Contents
FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT OF A POWER SURGE OR LIGHTNING STRIKE. Installation Instructions for the Following weBoost Signal Booster: Home 4G™ 700 MHz Band 13 & 17, 800 / 1900 (Ext. PCS) AWS (1700 / 2100) SmartTech ™ Signal Booster... -
Page 3: Package Contents
Package Contents Home 4G Desktop Antenna Outside Panel Antenna Kit 30’ RG6 ™ AC Power Supply Cable Coax Cable Connector Outside Panel Antenna (5’ RG-174 comes attached) 5V / 2.5A (301211) (950630) 30’ RG6 coax cables (971129) (Not included with some models) (314473-0630) (859948) Appearance of device and accessories may vary. -
Page 4: Find The Strongest Signal
Find the Strongest Cellular Signal Rotate in 45° increments Before you install your Home 4G signal booster, you must determine the location of the best available cellular signal. This will affect the location of your Outside Antenna and will help you get the best performance strongest signal outside your building, typically at the highest point available, using d. -
Page 5: Quick Install - Inside Window Mount Option
Quick Install - Inside Window Insert the Outside Antenna into the cradle. Mount Option Additional installation options on pg. 6-8 Find the Strongest Cellular Signal (See page 4 for suggested methods.) Ready to Install Inside Window Mount Select a location on the inside of a window as high as possible and at least 20 feet from where the Home 4G will be located. -
Page 6: Installation Options
#901117. Install the pole in the desired location. Using the hardware in Packet A, slide both brackets onto U-bolt. -
Page 7: Outside Wall Mount Option
Fit the assembly onto the pole in your desired location by sliding the second half of the bracket onto the U-bolt and securing it with the lock washers and nuts provided. Be sure the cradle is at the desired height and rotated toward the strongest cellular signal before tightening the nuts. -
Page 8: Additional Considerations
Antenna with at least 20 feet vertical Always turn the Outside Antenna so the or horizontal separation. The location weBoost logo is toward the strongest should allow you to mount the Outside cellular signal. The strength of the Antenna roughly in the direction of the signal at the Desktop Antenna (and strongest cellular signal. -
Page 9: Home 4G And Desktop Antenna Placement
Keep the Home 4G and the Desktop Antenna at least 18 inches away Placement from each other with the weBoost Select a location for the Home 4G that logo on the Desktop Antenna facing is away from excessive heat, direct away from the Home 4G. -
Page 10: Troubleshooting & Understanding Lights

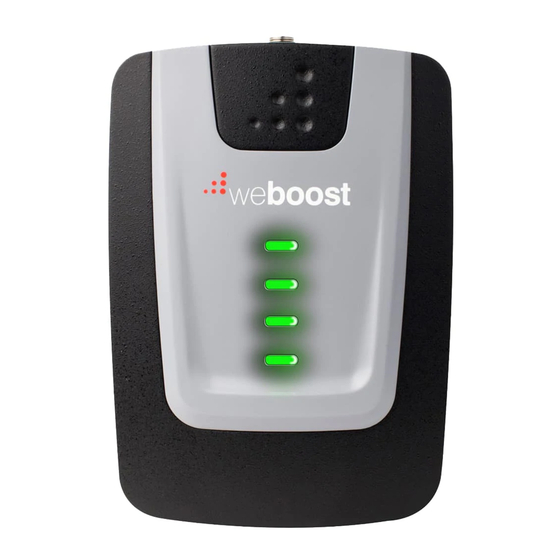

Troubleshooting & Understanding Lights The Home 4G includes four indicator lights, one for each band (see FAQ for explanation of MHz bands). Each indicator light will either be green, orange or red. Note Face Inside Antenna away from Home 4G and Outside Antenna Band 4 Band 25/2... -
Page 11: Additional Faq
3G data; while 700MHz indicating reduced gain, contact the and 1700/2100MHz are associated with 4G data. weBoost Customer Support Team for Why do I need to maintain at least 20 feet of assistance: 800-501-3153. separation, but no more than 50 feet? OR Why... -
Page 12: Optional Accessories
Inside Antenna Expansion Kit Kit 311155-1150 • 75 Ohm Wall mount Panel Antenna Kit 309900-50N • 50’ RG11 Cable • 2 - Wall Panel antennas Kit 301211 • 1 - 50 ohm 3-Way Splitter • Desktop Antenna w/ 5’ RG174 Kit 309905-50N •... - Page 13 Kit 311129-400100 Kit 311141-0620 • 800 MHz Yagi Antenna • 75 Ohm Grey Brick Antenna • 100’ LMR400 Cable • 20’ RG6 Cable Kit 314411-40075 Kit 301111-11140 • 50 Ohm Wide Band Directional Antenna • Yagi Directional Antenna • 75’ LMR400 Cable •...
-
Page 14: Safety Guidelines & Recommendations
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. WARNING: Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). -
Page 15: Signal Booster Specifications
Signal Booster Specifications Home 4G ™ Model Number 470001 Connectors SMA-Female on the Inside Antenna / F-Female on the Outside Antenna Antenna Impedance 75 Ohms / 50 Ohms Frequency 704-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz 700 MHz 700 MHz 800 MHz 1700/2100 MHz... - Page 16 The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
