HES K200-622-W2 Installation Instructions Manual

Package Contents

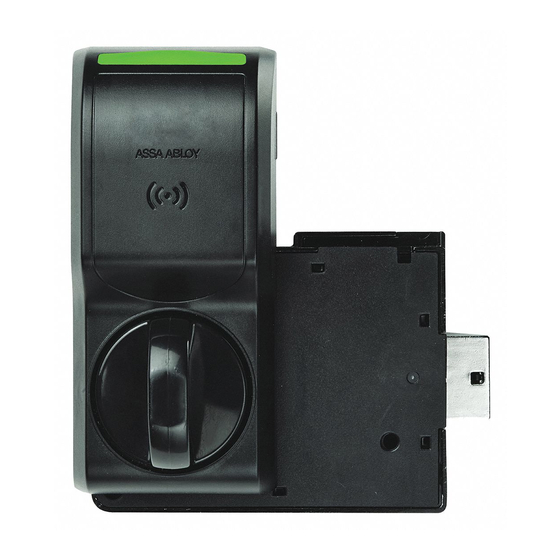

Lock Reader
Interface Cable,
System Side
Recommended Tools
Drill, Drill bits: 5/32", 1/2"
Approved Credential:
i.e. iCLASS or Prox ID card
Specifications
Voltage: 12–24 VDC ±10% (Power Supply not provided)
K200-622 (Reader) Current Consumption:
12 VDC:
24 VDC:
Operating Temperature: -10C to 50C
Holding Force: 250 lbs
Part Number 3085006.001, Rev. B
K200-622
Cabinet Lock Series
Installation Instructions
Mounting
Template
Machine
screw with
Strike Plate washer
Lock Body
Double door bracket
Phillips drivers P0, P2
Pencil, Wire Stripper
38 mA peak for Red and Green LED only
226 mA peak for Red and Green LED and Motor Drive
17 mA peak for Red and Green LED only
118 mA peak for Red and Green LED and Motor Drive
Key Override Paddle
2-56x3/8"
6 x 1/2"
2X
3X
6-32 screws
5/16"
3X
1"
1-1/4"
1-5/8"
2X
1-3/4"
2X
1X
2X
Interface Cable, Lock Side
Optional:
Cam lock for key override
HES, Inc.
Phoenix, AZ
1.800.626.7590
www.hesinnovations.com
Shaft Extension
0-80x½"
2-56x1-1/4"
1X
1X
1-7/8"
2‐1/2"
2X
2X
1
