Installation Instructions
8500 Series Electric Strike

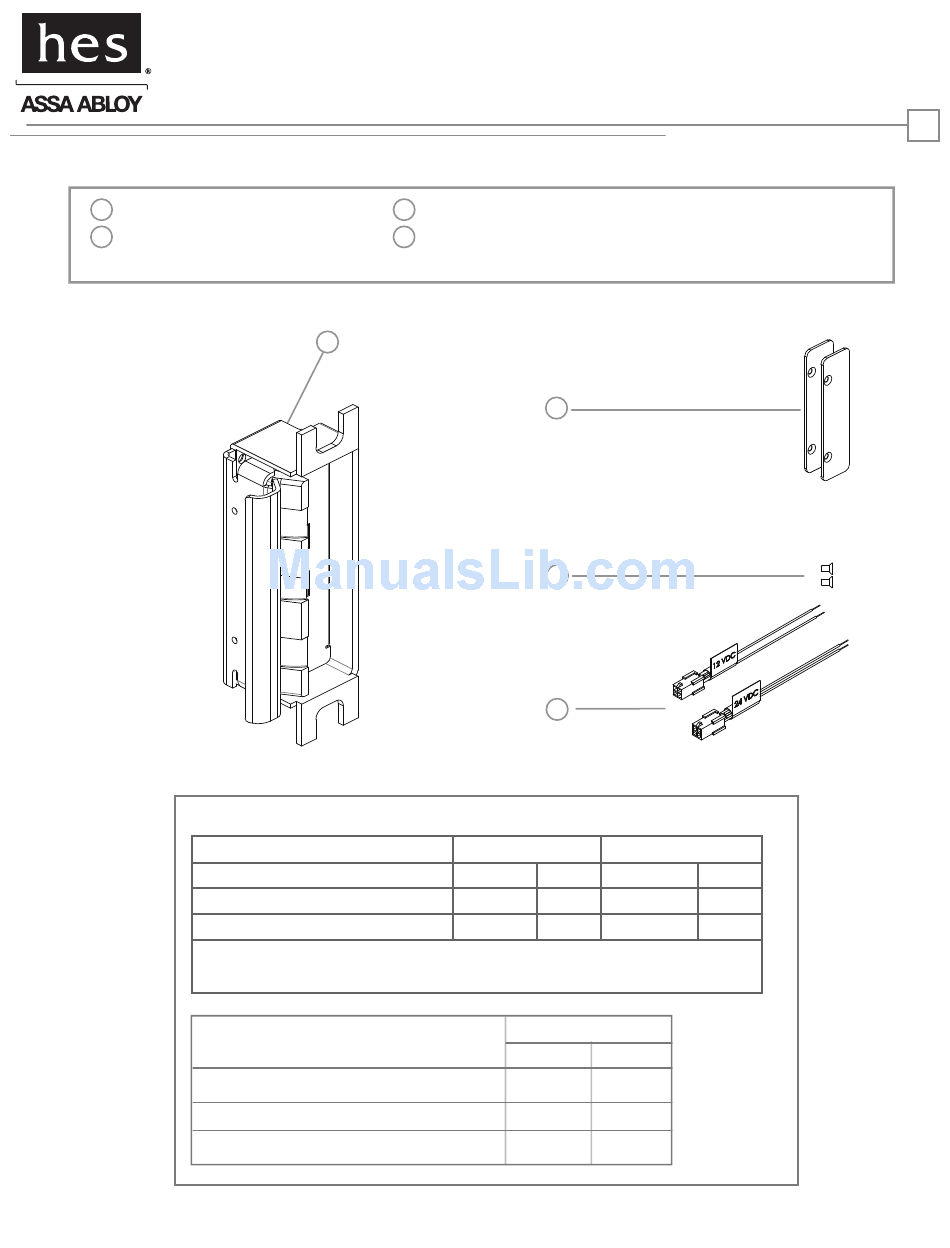

Product Components
1

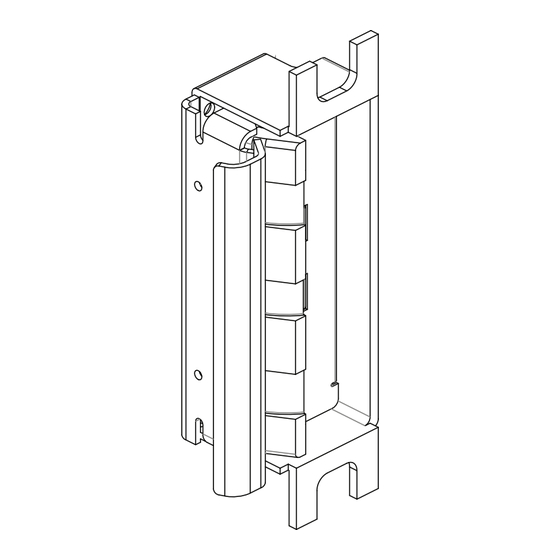

8500 Electric Strike Body
2
Horizontal Lockdown Shims
Electrical Specifications
ELECTRICAL RATINGS FOR SOLENOID CONTINUOUS DUTY
Resistance in Ohms
Amps
Solenoids are rated at +/- 10% indicated value.
*10% max duty cycle (2 min. max on time)
