Cutout Templates

JAMB Cutout Dimensions

1-1/4"
[31.8]
3-5/8"
[92.1]
4-7/8"
[123.8]
1"
[25.4]
4500 with Mortise Locksets
C L
Strike
Mortise
Vertical
Prep
Lockset
Centerline
C L
Lock
4"
[101.6]
[123.8]
3-5/8"
[92.1]
4-1/8"
8"
[104.8]
[203.2]
3/8"
[9.5]
C L
Strike
5/8"
[15.9]
1-1/4"
[31.8]
1-1/4"
1-3/4"
[31.8]
[44.5]
3053006.002 rev C
© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
Inches [Millimeters]
4500 with Cylindrical Locksets
Cylindrical
C L
Lock
Vertical
Centerline
C L
1-1/8"
Lock
[28.6]
3-5/8"
[92.1]
2-1/4"
[57.2]
C L
Strike
1-1/4"
[31.8]
1-3/4"
[44.5]
1-1/4"
[31.8]
Schlage L9000 and YALE 8700 Locks Only
C L
Vertical
Mortise
Lockset
Centerline
C L
Lock
4"
[101.6]
4-7/8"
3-5/8"
[92.1]
8"
[203.2]
C L
Strike
1-1/4"
[31.8]
1-3/4"
1-1/4"
[44.5]
[31.8]
4

Product Components

Strike

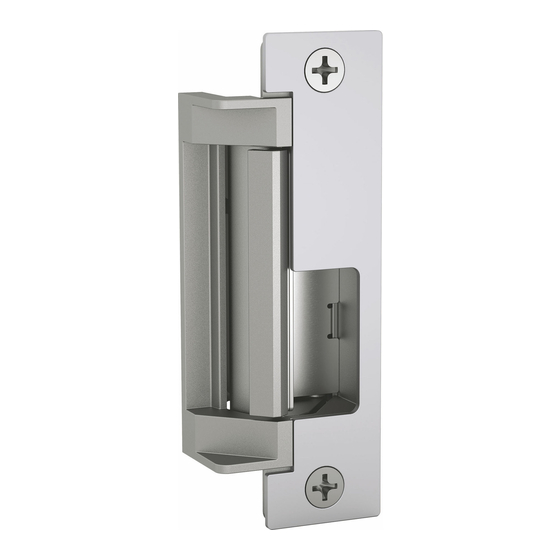

4500 Electric Strike Body
Prep
1
Keeper Shims & Screws (#4-40 x 1/8" and #4-40 x 3/16")
2
Centerlined and Non-handed Faceplate for Cylindrical Locksets
3
Offset and Non-handed Faceplate for Mortise Locksets
4
4-7/8"
[123.8]
4-1/8"
[104.8]
5/8"
[15.9]
Strike
Prep
4-7/8"
[123.8]

Electrical Specifications

4-1/8"
[104.8]
ELECTRICAL RATINGS FOR SOLENOID
Resistance in Ohms
Amps
Solenoids are rated at +/- 10% indicated value.
5/8"
*10% max duty cycle (2 min. max on time)
[15.9]
ASSA ABLOY, the global leader
in door opening solutions
4500 Series Electric Strike
Installation Instructions
1
7
6
CONTINUOUS DUTY
INTERMITTENT DUTY*
12 VDC
24 VDC
12–16 VAC
24 VAC
50
200
50
200
.24
.12
.24.–.32
.12
HES, Inc.
Phoenix, AZ
800-626-7590
www.hesinnovations.com
1
#12-24 x 1/2" Mounting Screws
5
12 & 24 Volt Plug In Connectors
6
Trim Enhancer & Screws
7
2
3
4
5
MINIMUM WIRE GAUGE REQUIREMENTS
SOLENOID VOLTAGE
12VDC
24VDC
200 feet or less
18 gauge
20 gauge
200 - 300 feet
16 gauge
18 gauge
300 - 400 feet
14 gauge
