RF5010 and RF5210
®
RF5010 and RF5210: INTERNAL ANTENNA
*
Faceplate options accommodate
various keeper and latchbolt
actions. For more detail, contact
HES tech support
at 800-626-7590
HID is a registered trademark of HID Corporation.
Product
Description
Dimensions
Orientation
Compatibility
Access Control Systems
Proximity Cards
Frequency
Indicators
Supervision
Applications
Frames
Trim Enhancer
Locks
Latchbolts Released*
Environment
Temperature
Humidity
Electrical
Reader Module
Operating Voltage
Operating Current
Electric Strike Module
Operating Voltage
Operating Current
Cable detail
Reader Module
Distance to Host
Recommended Type
Electric Strike Module
Distance to Power
Recommended Type
Certifications
Compliance
Security
HES, Inc.
22630 N. 17th Ave.
Phoenix, AZ 85027
800-626-7590

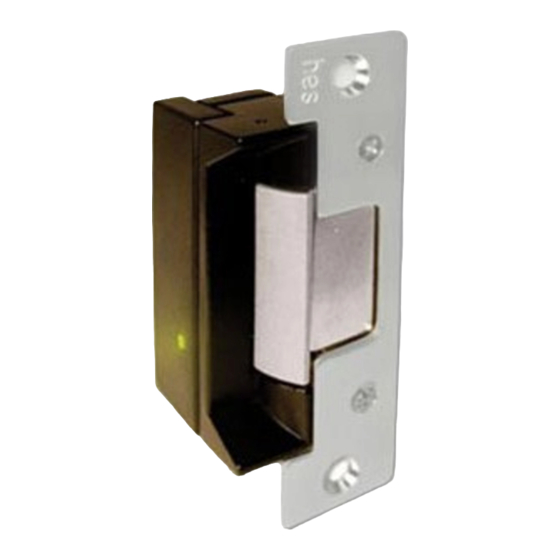

Integrated Electric Strike and Proximity Card Reader
See pages 4-6
Non handed
Open Architecture
Interfaces with Wiegand Protocol Systems
Supports HID 26 39 Bit Formats
Supports HID 125 kHz Credentials
Red/Green LED and Buzzer
Door Position Switch and Latchbolt Monitor
Steel, Aluminum, Wood
Included
Cylindrical
RF5010: Accomodates up to 5/8" Latchbolt
RF5210: Accomodates up to 3/4" Latchbolt
Not Recommended for Outdoor use
32 F 150 F (0 C 65 C)
5 95%, Non-condensing
12VDC +/- 20%
125 mA Max. @ 12VDC
12VDC +/- 10%
240 mA max. @ 12VDC
500 ft. Max.
18 22 AWG (Dependent on Distance)
See Page 3
See Page 3
FCC Part 15/IC Class B
ANSI/BHMA 156.31, Grade 1
Lifetime Waranty against defects
in materials and workmanship
1
Stranded and Shielded
Advertisement
Table of Contents
Related Manuals for HES Assa Abloy RF5010
Summary of Contents for HES Assa Abloy RF5010
- Page 1 FCC Part 15/IC Class B Security ANSI/BHMA 156.31, Grade 1 Faceplate options accommodate Warranty various keeper and latchbolt actions. For more detail, contact HES tech support at 800-626-7590 Lifetime Waranty against defects in materials and workmanship HID is a registered trademark of HID Corporation.
- Page 3 Installation Directions RF5010 and RF5210: INTERNAL ANTENNA CAUTION! Before connecting any device at the installation site, verify that there is 12VDC input voltage using a multimeter. Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage outside the electrical specifications outlined on page 1 may cause severe damage to the unit and will void the warranty.
- Page 4 Cutout Template RF5010 and RF5210: INTERNAL ANTENNA RF5010 or RF5210 with 501 Faceplate 1-1/4” x 4-7/8” Square Corner Faceplate ANSI Metal Jamb Installations 1 - 1/4” 4 - 7/8” 124 4 - 1/8” 105 3 - 3/8” RF5010: 1 - 11/16” 43 RF5210: 1 - 13/16”...
- Page 5 Cutout Template RF5010 and RF5210: INTERNAL ANTENNA Remove additional material as needed to provide clearance for hybrid electric strike and wires...
- Page 6 Cutout Template RF5010 and RF5210: INTERNAL ANTENNA Corner 1 - 3/8” 35 Remove additional material as needed to provide clearance for hybrid electric strike and wires 10” 254 3 - 3/8” RF5010: 1 - 11/16” 43 RF5210: 1 - 13/16” 3/8”...
- Page 7 Fail Safe Conversion RF5010 and RF5210: INTERNAL ANTENNA Fail Safe Remove Reader Module Finish a. In order to change the mode of operation from fail secure e. Replace the reader module and tighten the two (standard) to fail safe, first detach the reader module by removing screws to hold it in place.
- Page 8 FCC Part 15/IC Class B Security ANSI/BHMA 156.31, Grade 1 Faceplate options accommodate Warranty various keeper and latchbolt actions. For more detail, contact HES tech support at 800-626-7590 Lifetime Waranty against defects in materials and workmanship HID is a registered trademark of HID Corporation.
