HES K200-622 Installation Instructions Manual

Cabinet lock series
Hide thumbs Also See for K200-622:
Table of Contents

Advertisement

Quick Links

Download this manual

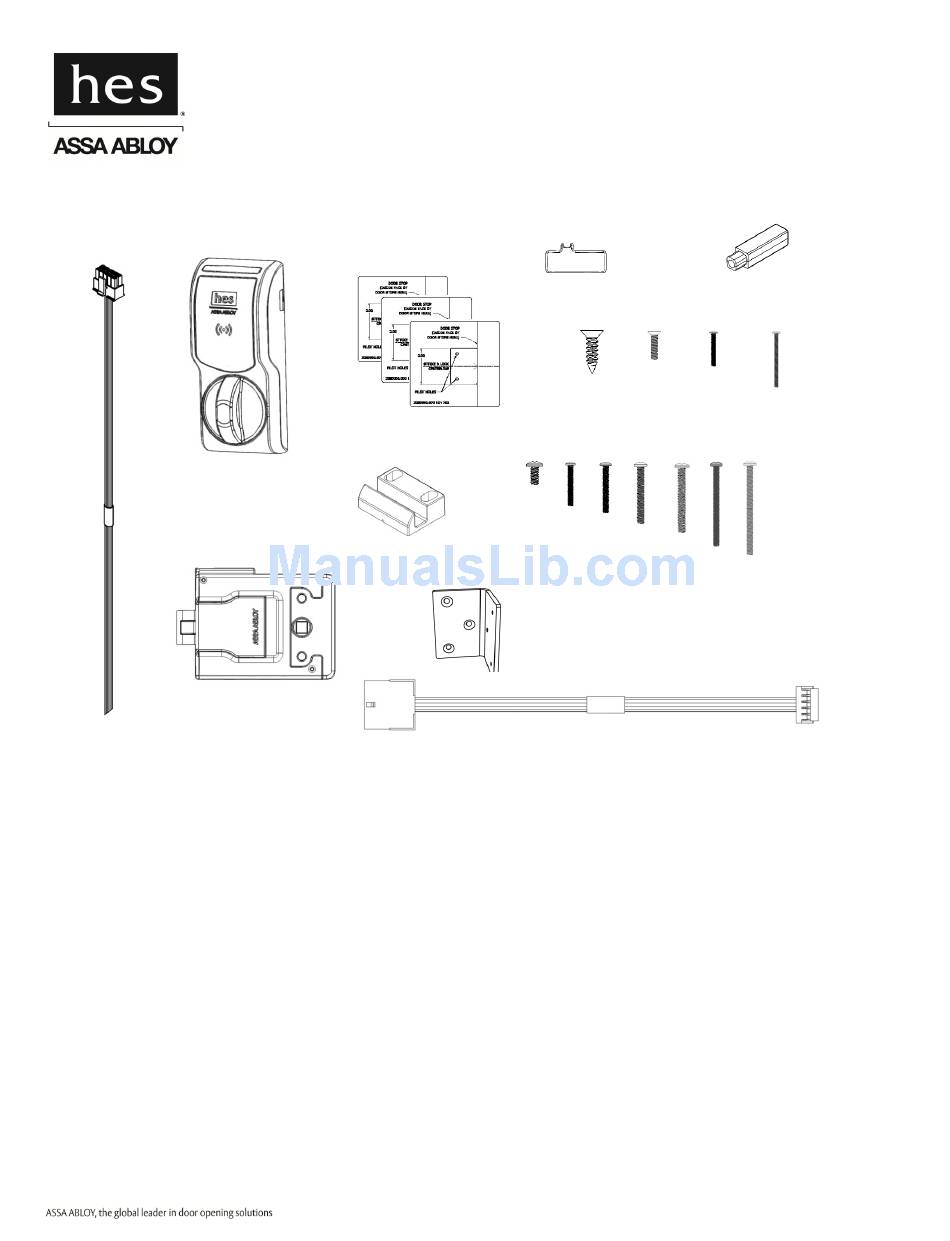

Package Contents
Lock Reader
Interface Cable,
System Side
Recommended Tools
Drill, Drill bits: 5/32", 1/2"
Approved Credential:
i.e. iCLASS or Prox ID card

Specifications

Voltage: 12–24 VDC ±10% (Power Supply not provided)
Power Consumption: <3W peak, 0.5W steady state
Operating Temperature: -10C to 50C
Holding Force: 250 lbs
Part Number 3085006.001, Rev. A
K200-622
Cabinet Lock Series

Installation Instructions

Mounting
Templates
1X
1X
1X
Machine
screw with
Strike Plate
washer
Lock Body
Double door bracket
Flathead drivers 3/32", 3/16"
Phillips drivers P0, P2
Pencil, Wire Stripper
Key Override
Paddle
2-56x3/8"
6 x 1/2"
0-80x½"
2X
3X
6‐32 screws
5/16"
3X
1"
1-1/4"
2X
1-5/8"
1-3/4"
2X
1X
1-7/8"
2X
Interface Cable, Lock Side
Optional:
Cam Lock for key override
HES, Inc.
Phoenix, AZ
1.800.626.7590
www.hesinnovations.com
Shaft Extension
2-56x1-1/4"
1X
1X
2‐1/2"
2X
2X
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K200-622 and is the answer not in the manual?

Questions and answers

Related Manuals for HES K200-622

Summary of Contents for HES K200-622

  • Page 1: Installation Instructions

    K200-622 HES, Inc. Cabinet Lock Series Phoenix, AZ 1.800.626.7590 Installation Instructions www.hesinnovations.com Package Contents Lock Reader Mounting Templates Key Override Shaft Extension Paddle 2-56x3/8” 6 x 1/2” 0-80x½” 2-56x1-1/4” Machine  screw with  Strike Plate washer  6‐32 screws  Interface Cable, System Side 5/16”...

  • Page 2: System Overview

    ICLASS, ISO 14443A Mifare, Mifare Plus, Desfire SE, Desfire EV1, and NFC over HCE.  SYSTEM OVERVIEW The K200-622 wired cabinet lock (K200) extends access control to a cabinet or drawer. The K200 lock is capable of reading radio-frequency identification (RFID) credentials and providing that credential data to an electronic access control (EAC) system via Wiegand data signaling.
  • Page 3 TESTING THE LOCK TEST the lock with a known good credential to confirm it will open as desired when installed. REMOVE the cover from the lock body. PASS the wire and shaft from the reader through the lock body. NOTE: The wire connector is keyed.

  • Page 4: Mounting The Lock

    MOUNTING THE LOCK NOTE: The K200 reader and lock body can be oriented in several ways to accommodate various cabinets and drawers. When selecting an orientation, it should be noted that some reader orientations may prevent use of the key override function. For example, in the door handing shown here, the key override paddle cannot be accessed in orientation “A”, but it can be accessed in orientations “B,”...
  • Page 5 TRANSFER the location of the inside wall of the cabinet to the door. MEASURE the horizontal distance between the inside edge of the cabinet and the door edge. NOTE: The drawn line depicts the location of the strike mounting surface. LOCATE the lock centerline notch on the latch and MARK this point on the inside of the cabinet door using a pencil.
  • Page 6 INSTALL the shaft extension. IF the cabinet door thickness is greater than ½” [12.70 mm] (see Table 1), THEN INSTALL the Shaft Extension to the Antenna/Reader to ensure proper engagement into the lock. INSTALL the Shaft Extension to the shaft as shown in the figure, and firmly TIGHTEN the screw. Table 1 Door Thickness Extension Shaft Used?
  • Page 7 INSTALL the Antenna/Reader. CAUTION Pinching the wires may prevent the Reader and Lock from properly functioning. PLACE and HOLD the antenna/reader to the outside of cabinet, routing the wire through the 1/2” [12.70 mm] offset hole, and ENSURE the knob is in the locked position in the vertical. NOTE: Using the table below will help determine the length of the top mount screw needed, based on the thickness of the cabinet door.
  • Page 8 CONNECT the antenna/reader wire to the lock body. NOTE: The antenna/reader wire connector is engineered to fit only one way. INSERT the antenna/reader wire connector, ensuring correct orientation TUCK excess cable into the lock body. ATTACH the cover. Part Number 3085006.001, Rev. A...
  • Page 9 CONNECT the 10-position Molex Micro-Fit Cable between the K200 and the EAC. ENSURE the following power cabling guidelines are followed: Wire AWG Supply Voltage Allowed Cable Length (ft.)* 20 AWG 6679 22 AWG 4201 24 AWG 2641 * Round trip loss. V = 2 x I x R x xft xft = V / (2 x I x R) POSITION the cable out of the way, as required.
  • Page 10 CAUTION The Installer must ensure that the lock can be opened before closing the cabinet door. INSTALL the single door strike plate. PLACE the strike plate over the pilot holes, and INSERT and TIGHTEN the two screws in the slotted holes. CLOSE the door to verify installation, and ADJUST the strike plate if necessary.

  • Page 11: Fcc Statement

    (2) this device must accept any interference, including interference that may cause undesired operation. CE Statement HES hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Conformité aux normes FCC Cet équipement a été...
  • Page 12 (2) cet appareil doit accepter toute interference, y compris des interférences qui peuvent provoquer un fonctionnement indésirable du périphérique. Conformité aux normes CE HES déclare par la présente que ces lecteurs à proximité sont conformes aux exigences essentielles et aux autres stipulations pertinentes de la Directive 1999/5/CE. For Technical Support please call 1-800-626-7590 ©...
