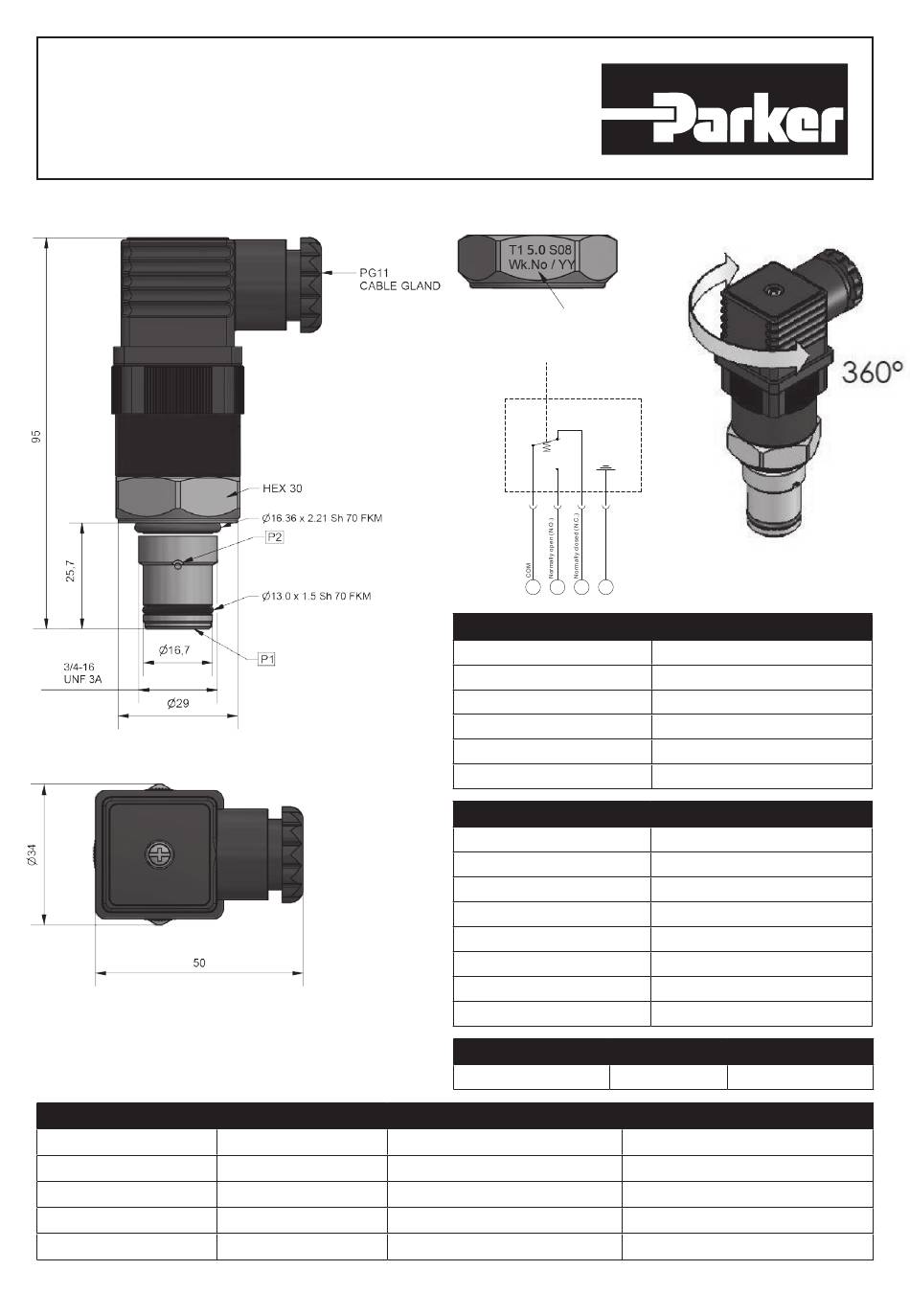

Parker DPIT1 VS08MDC1 Series Assembly Instruction

DPIT1_VS08MDC1

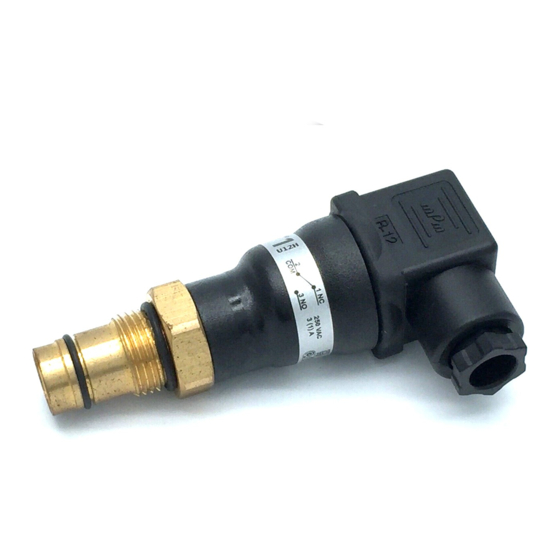

ELECTRICAL DIFFERENTIAL
PRESSURE INDICATOR
P1: High pressure, P2: Low pressure
The power supply of the sensor must be
provided by a dedicated voltage source
and not by a distributed dc network.
DP SETTING
1.2 bar (± 0.25)
2.5 bar (± 0.35)
3.5 bar (± 0.55)
5.0 bar (± 0.75)
Parker reserves the right to change or discontinue any model
or specification at any time and without notice.
INDICATOR SELECTION TABLE
DP CODE
G
K
L
M
Parker Hannifin / Hydraulic Filtration EMEA
Orders and inquiries: please contact your local Parker representative.
Engraving on Hex.
Pressure setting & thread code
P1-P2
1 2 4
3
ELECTRICAL SPECIFICATIONS
VOLTAGE
14 V dc
30 V dc
125 V ac
250 V ac
Min load 5V dc
TECHNICAL SPECIFICATIONS
Switching contacts
Max pressure (P1=P2)
Proof pressure
Max differ. pressure (P1-P2)
Working temperature
Body material
Max torque
Protection degree
SEAL KIT
Fluoroelastomer
ORDERING CODE
DPIT1GVS08MDC1
DPIT1KVS08MDC1
DPIT1LVS08MDC1
DPIT1MVS08MDC1
LOAD
5 (4) A
4 (3) A
5 (3) A
3 (2) A
160 mA
SPDT
450 bar
675 bar
210 bar
-20° to +100°C
Brass
50 Nm
IP65
SEAL CODES ORDERING CODE
V 930000298
MARKING CODE
T1 1.2 S08
T1 2.5 S08
T1 3.5 S08
T1 5.0 S08
20348 C
