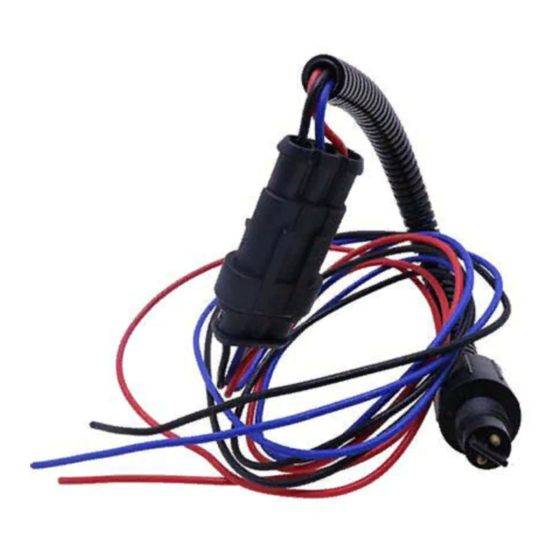

RK30880E
Water-In-Fuel (WIF) Detection Kit
Instruction Part Number 14400 Rev B

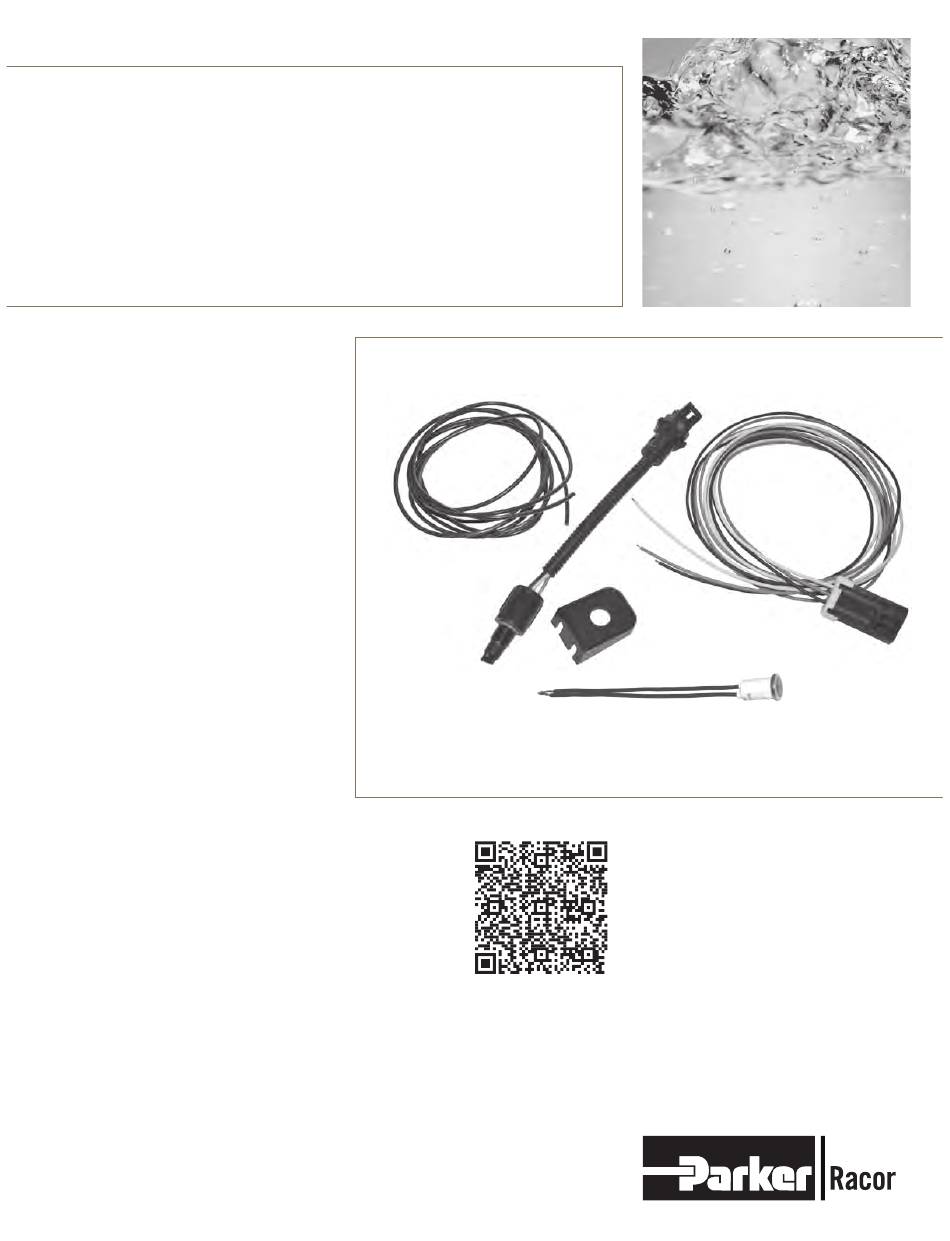

This kit includes new and
enhanced detection electronics
built into the probe body and
works with 12 or 24 volt DC
systems.
Once the level of collected
water rises to make contact
between the two probe tips,
a yellow warning light will
illuminate, indicating time to
drain water and contaminants
from the collection bowl.
Follow draining instructions
provided with each fuel filter/
water separator to drain the
collection bowl. After water
has been drained, the warning
light will reset and no longer be
illuminated.
Product Features
• Includes a warning light and
mounting panel
• WIF housing permanently
marked for identification
• Built-in detection amplifier
• Circuit board power controller
(10 volt continuous)
• Reverse polarity protection
• False detection prevention
(water slosh delay)
• Electromagnetic compatibility
(EMC)
Contact Information
Parker Hannifin Corporation
Racor Division
P.O. Box 3208
3400 Finch Road
Modesto, CA 95353
phone 800 344 3286
209 521 7860
fax 209 529 3278
racor@parker.com
parker.com/racor
Advertisement
Related Manuals for Parker Racor RK30880E
Summary of Contents for Parker Racor RK30880E
- Page 1 After water has been drained, the warning light will reset and no longer be illuminated. Contact Information Product Features Parker Hannifin Corporation • Includes a warning light and Racor Division mounting panel P.O. Box 3208 3400 Finch Road •...
- Page 2 RK30880E Specifications Port Thread Size 1/2"-20 UNF Housing Glass-filled Nylon Volts DC 12 or 24 Ohm (trigger threshold) Ambient Fuel Temperature to +250 F (-40 to +121 Installation Guidelines Disconnect the Negative terminal butt splice connector). This will coil, thus closing the power from the battery to avoid the send a ground (-) signal once contacts to drive your device...
- Page 3 Installation Information Typical clear collection bowl. (This kit will work with other bowl types/ styles with 1/2”-20 UNF threads). Water Probe Port 1/2"-20 UNF threads. Probe Assembly Connector Assembly Yellow wire to one side of warning light. Black wire to ground (This sends a ground (-) signal) Warning Light (install in panel) - Red wire to...
- Page 4 USAGE. specifications, designs, comparable new product or availability and pricing, are repair the defective product. subject to change by Parker This express warranty shall be Warning Hannifin Corporation and inapplicable to any product not its subsidiaries at any time...
