Summary of Contents for Parker SciPres II

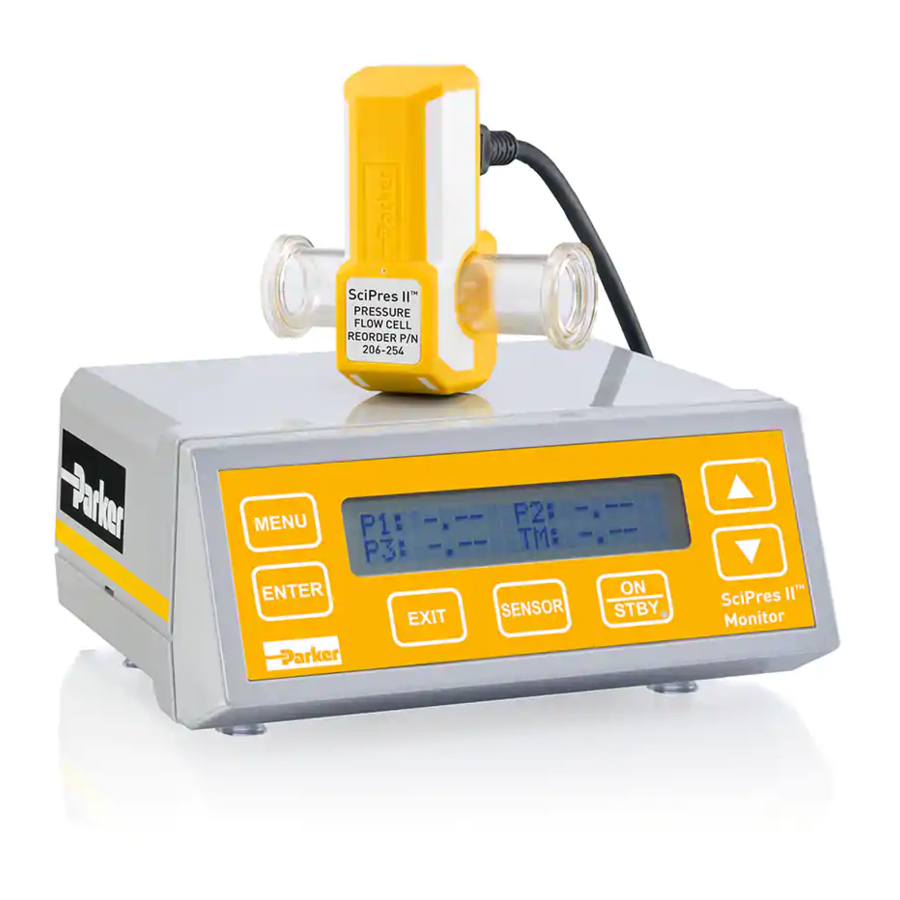

- Page 1 ™ SciPres II Pressure Sensor Monitor & Single-Use Sensor Installation, Operating & Maintenance Instructions ENGINEERING YOUR SUCCESS.
- Page 2 Parker Hannifin Corporation. ™ Parker has a continuous policy of product development and although the Company reserves the right to change specification, it attempts to keep customers informed of any alterations. This publication is for general information only and customers are requested to contact your local Bioscience Filtration Sales and/or Technical Support Specialist for detailed information and advice on a product’s suitability for specific applications.
-
Page 3: Table Of Contents
SciPres II Sensor Specifications .......................... 10 Documentation Software for PC ........................11 Part A SciPres II Monitor Hardware Overview ......................13 Front Panel: Data Entry & Display ........................14 Back Panel: Interface Options ..........................15 Single-Use Pressure Sensors ..........................18 Part B SciPres II Monitor Software Overview ...................... -
Page 4: Precautions
ALWAYS DISCONNECT this equipment from the power source before cleaning or performing maintenance. CALL Parker Customer Service for parts, information and service. WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, SERVICING, CLEANING OR REMOVING THE FUSE. FAILURE TO DO SO COULD RESULT IN BODILY HARM AND/OR PROPERTY DAMAGE. - Page 5 équipement. DÉBRANCHEZ TOUJOURS cet équipement de la source de courant avant de nettoyer ou d’exécuter l’entretien. APPELEZ PARKER pour pièces détachées, renseignements et entretien. ATTENTION DÉBRANCHEZ TOUT COURANT DE CETTE UNITÉ AVANT DE FAIRE L’INSTALLATION, D’EFFECTUER L’ENTRETIEN, LE NETTOYAGE OU AVANT DE RETIRER LE FUSIBLE.
-
Page 6: Introduction
Calibration The SciPres II Monitor is a calibrated device and is calibrated with test equipment that is traceable to SI (International System of Units) through NIST (National Institute of Standards and Technology). A Calibration Certificate is included with each unit, and has a one-year expiration date. -
Page 7: Warranty
To remove dust, dirt and stains, the outer surfaces of the SciPres II may be wiped using a soft, non- fluffing cloth moistened with water. If required, you may also use a mild detergent or 2-propanol. -
Page 8: Quick Setup Guide
Quick Set-up Guide The contents of your SciPres II Pressure Sensor Monitor & Single-Use Sensor include: 1 Monitor 3 sensor monitor cables (CBL-007) 1 power supply cord with 3 adapter clips (US, EU and UK version) Set-up: 1. -
Page 9: Scipres Ii Monitor Specifications
SciPres II Monitor Specifications W: 6.0¨ (15.2 cm); Height 2.75¨ (7.0 cm); D: 5.5¨ (14.0 cm) Dimensions 1.5 lb (0.69 Kg) Weight Molded Plastic / Stainless Steel Enclosure 100-240 V, 60/50 Hz AC Adaptor, 12 VDC, 500 ma Output, Power Center positive. -
Page 10: Scipres Ii Sensor Specifications
SciPres II Sensors Specifications 5 VDC provided by SciPres II Monitor. Power Choice of five sizes: Luer, 3/8” Barb, 1/2” Barb, 3/4” Tri-Clamp (TC) Sanitary and 1” Tri-Clamp Fluid Connections (‘Ladish’) Sanitary. Polysulfone transfer tube, Silicone gasket, and a Sensing element comprised of Polycarbonate and Medical Grade Dielectric Gel. -
Page 11: Documentation Software For Pc
In the SciDoc folder on your PC, click on SciDoc to launch the program Click on the yellow SciPres II button for the next screen to appear Choose the detected or assigned Com Port and set the sec/Sample time to match the Print Time setting on the Monitor (Default = 5 seconds) ... - Page 12 button saves .jpg images of the charts at that time. button exports the data and charts as both an .xls file and a .txt file. Files are saved at C:\Serial Data Loggers by Monitor type. All files can be readily turned into PDFs. NOTE: The charts are do not adjust their range automatically.
-
Page 13: Scipres Ii Monitor Hardware Overview
The “Max Pressure Watchdog” feature records in the sensor’s memory the maximum pressure seen by the sensor while it is connected to the SciPres II Monitor. This value is displayed for a few seconds along with the Sensor ID and calibration information when the Monitor is powered up after a sensor is connected. -
Page 14: Front Panel: Data Entry & Display
The keypad consists of seven keys whose function does not change. These keys are used for basic control and programming of the SciPres II. The basic key definitions are: Allows entry into the parameter settings menu. MENU Accepts the selected parameter setting. -
Page 15: Back Panel: Interface Options
SciPres II via this port. A printer cable (P/N 080-096) is required to make the connection between the printer and the SciPres II, or a Parker RS-232 to USB adapter cable (P/N 080-USB) to connect the SciPres II to a PC for data archival. - Page 16 Pin Out of the DB25 female “Output” connector: For 4-20 ma output of Pressure at P1 (Analog 1), use pins 2 (4-20 -) and 14 (4-20 +). If excitation is needed in the loop, connect pin 1 (Vpwr) to pin 14 (4-20 +), and connect the output (signal) cable to pin 2 (4-20 -) and pin 15 (Gnd).
- Page 17 The use of an end-user supplied analog loop power source is presented below: TTL Outputs: Hi / Low P1 Alarm: TTL 1 Pins 11 (Out0) and 13 (Gnd) Hi / Low P2 Alarm: TTL 2 Pins 24 (Out1) and 13 (Gnd) Hi / Low P3 Alarm: TTL 3 Pins 12 (Out2) and 13 (Gnd) Hi / Low TM Alarm: TTL 4...
-
Page 18: Single-Use Pressure Sensors
13.6 60 psi ‘Ladish’ Ladish Specifications for all SciPres II Flow Thru Pressure Sensors Polysulfone transfer tube, Silicone gasket, and a Sensing element Material, Fluid Contact: comprised of Polycarbonate and Medical Grade Dielectric Gel. All fluid path components are USP 88 Class VI. -
Page 19: Scipres Ii Monitor Software Overview
Part B: SciPres II Software Overview The SciPres II pressure monitor digitally displays inputs from up to three SciPres II pressure sensors simultaneously, while also calculating and displaying either trans-membrane or differential pressure. It has also been equipped with a “Supervisor Password”, a “Max Pressure Watchdog”, and a “Filter”... -
Page 20: Main Menu
Main Menu Main Screen: Menu OFF, P1, P2, P3, TM P1: 0.00 P2: 0.00 CONSTANT PRESSURE P3: 0.00 TM: 0.00 Menu Menu Psi, kPa, Bar, mmHg 1 - 12 PRES UNITS: PSI FILTER: Menu Max:105 Psi, 723.9 kPa, 7.23 Bar, 5340 mmHg Menu SEE HI RANGE FOR LIMIT RANGE HI:... - Page 21 Main Menu SUMMARY: This menu allows the setting of various parameters as they relate to your process. Use “Menu” to scroll through the menu, the up/down arrow keys to scroll through choices, and “Enter” to select the choice. MAIN SCREEN: Displays all three pressures, P1, P2, P3 and the calculated Trans-Membrane pressure, TM, or Differential pressure DP.
- Page 22 YEAR: Use up / down arrows to set current Year, and press “Enter”. FACTORY RESET: Used to restore the SciPres pressure sensor pressure monitor to the factory default values. Change No to Yes using the arrow keys and press “Enter” to reset, change No to Yes on the “Are You Sure?”...
-
Page 23: Reduced Pump Pulsation: Improved Sensor Precision
Reduced Pump Pulsation: Improved Sensor Precision This graph shows the effects of the Filter setting on the SciPres II monitor and the incoming signal from the SciPres II sensors. This provides the added benefit of improving the precision and accuracy of the sensor readingby eliminating the need to interpret between ever changing high and low values caused by pump- generated pulsation. -
Page 24: Scipres Ii Printout Format
SciPres II Printout Format RS-232 Output as sent to Serial Printer (Parker PN 080-095A) or a terminal program: 05/09/19 0.60 12/23/19; Pressure v0.60; UNITS=psi; ALARMS: HP1= 0.00; LP1= 0.00; HP2= 0.00; LP2= 0.00; HP3= 0.00; LP3= 0.00; HTM= 0.00; LTM= 0.00;... -
Page 25: Rs232 Settings
RS-232 Settings SciPres II to PC: PC communications via the Serial Port labeled “Printer / PC” or the USB port. For the Printer port to PC a Parker RS-232 Cable (P/N: 080-073) is needed. For USB connection, a standard A/B style cable (Parker P/N 080-158) is needed. As there are two ports, one can send data from the Monitor to both a PC and a Serial Printer (Parker P/N 080-095A). -
Page 26: Appendix A: Sensor Performance Data
Appendix A: Sensor Performance Data... - Page 27 Notes...
- Page 28 Parker Hannifin Corporation Parker Hannifin Manufacturing Ltd Bioscience Filtration Bioscience Filtration 2340 Eastman Avenue Durham Road © 2020 Parker Hannifin Corporation. Oxnard, California, USA 93030 Birtley, Co. Durham All rights reserved. toll free: 877 784 2234 DH3 2SF, England phone: +1 805 604 3400...
