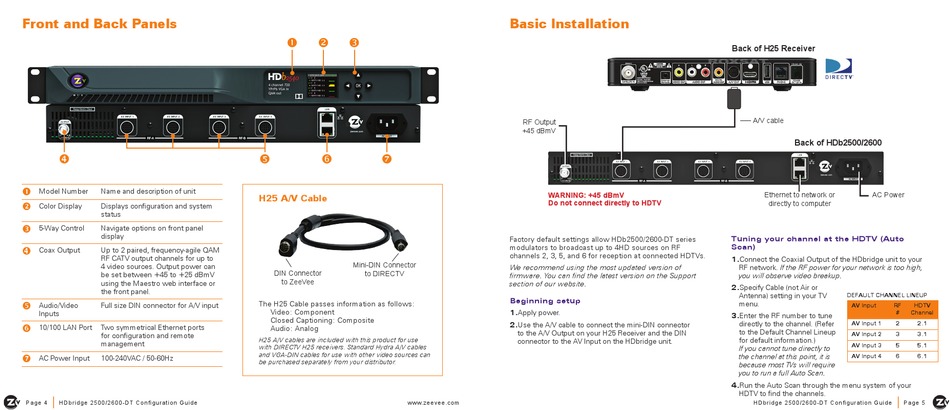

Front and Back Panels


 Model Number Name and description of unit

Color Display Displays configuration and system
status

5-Way Control Navigate options on front panel
display
 Coax Output Up to 2 paired, frequency-agile QAM
RF CATV output channels for up to
4 video sources. Output power can
be set between +45 to +25 dBmV
using the Maestro web interface or
the front panel.

Audio/Video Full size DIN connector for A/V input
Inputs

10/100 LAN Port Two symmetrical Ethernet ports
for configuration and remote
management
 AC Power Input 100-240VAC / 50-60Hz
|
Pa ge 4 H D br i dg e 25 0 0 / 2 6 0 0 -DT Co n fig u ra tio n Gu id e
  
  
H25 A/V Cable
Mini-DIN Connector
DIN Connector to DIRECTV
to ZeeVee
The H25 Cable passes information as follows:
Video: Component
Closed Captioning: Composite
Audio: Analog
H25 A/V cables are included with this product for use
with DIRECTV H25 receivers. Standard Hydra A/V cables
and VGA-DIN cables for use with other video sources can
be purchased separately from your distributor.
w ww.z eev ee.c om

Basic Installation

RF Output
+45 dBmV
WARNING: +45 dBmV
Do not connect directly to HDTV
Factory default settings allow HDb2500/2600-DT series
modulators to broadcast up to 4HD sources on RF
channels 2, 3, 5, and 6 for reception at connected HDTVs.
We recommend using the most updated version of
firmware. You can find the latest version on the Support
section of our website.

Beginning setup

1. Apply power.
2. Use the A/V cable to connect the mini-DIN connector
to the A/V Output on your H25 Receiver and the DIN
connector to the AV Input on the HDbridge unit.
Back of H25 Receiver
A/V cable
Back of HDb2500/2600
Ethernet to network or AC Power
directly to computer
Tuning your channel at the HDTV (Auto
Scan)
1. Connect the Coaxial Output of the HDbridge unit to your
RF network. If the RF power for your network is too high,
you will observe video breakup.
2. Specify Cable (not Air or
Antenna) setting in your TV
DEFAULT CHANNEL LINEUP
menu.
AV Input RF
# Channel
3. Enter the RF number to tune
directly to the channel. (Refer
AV Input 1 2
to the Default Channel Lineup
AV Input 2 3
for default information.)
AV Input 3 5
If you cannot tune directly to
the channel at this point, it is AV Input 4 6
because most TVs will require
you to run a full Auto Scan.
4. Run the Auto Scan through the menu system of your
HDTV to find the channels.
|
HD b ri dg e 25 00 / 2 60 0- DT Co n f ig u r a t io n Gu id e Pa g e 5
HDTV
2.1
3.1
5.1
6.1
