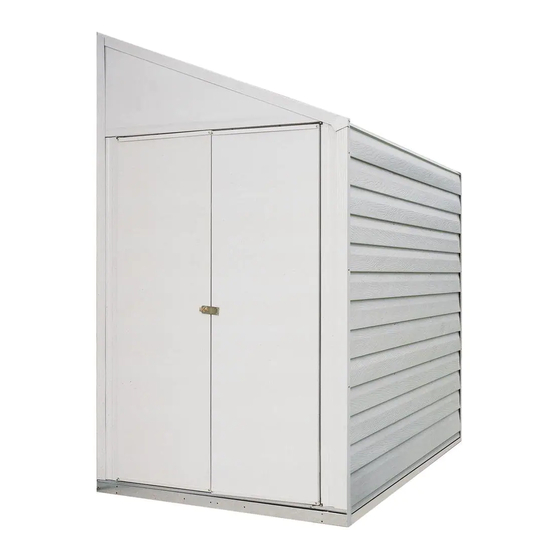

Owner's Manual & Assembly Instructions
BS1
Model No.
707741209
Storage Area: 38 Sq. Ft.
3,5 m
BUILDING DIMENSIONS
*Approx.
Base
Size
Size
4' x 10'
50 1/2" x 116 3/4"
1,2 m x 2,9 m
128,3 cm x 296,5 cm
YS410-A
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085
Do not return to dealer, they are not
equipped to handle your requests.
227 Cu. Ft.
2
6,4 m
3
* Size rounded off to the nearest foot
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
Depth
49"
124,5 cm
294,6 cm
Interior Dimensions
Height
Width
116"
82"
47 3/4"
208,3 cm
121,3 cm
697.68602
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
(Wall to Wall)
Depth
Height
114"
81 1/4"
289,6 cm
206,4 cm
Door
Opening
Width
Height
38 1/2"
60 1/4"
97,8 cm
153,0 cm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Arrow YS410-A
Summary of Contents for Arrow YS410-A
- Page 1 Owner's Manual & Assembly Instructions Model No. YS410-A 697.68602 Missing Parts, Questions on Assembly? Call: 1-800-851-1085 Do not return to dealer, they are not equipped to handle your requests. 707741209 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES Storage Area: 38 Sq.
- Page 2 We recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of securing your building to the ground (Available by mail order or at your local dealer) or you may construct a base and anchoring system of your choice.
-
Page 3: Tools And Materials
PLAN AHEAD..Be sure the day you select to install your building is dry and calm. Watch the Weather: Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Whenever possible, two or more people should work together to assemble Teamwork: your building. - Page 4 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in the pieces of your building since some contain assembly of this building. Be familiar with the sharp edges.
- Page 5 Roof: amounts of snow on roof can damage building making it unsafe to enter. In snow country, Roof Strengthening Kits are available for most Arrow Buildings for added protection against heavy snow accumulation. Always keep the door tracks clear of dirt and other debris that prevent them from Doors: sliding easily.
- Page 6 10'x9' (3,0 m x 2,6 m), use 2 kits. Model No. AT101 Heavy-duty galvanized steel bars that Model No. AK100 fit all 10' (3,0 m) wide Arrow buildings. New concrete anchor system permits They install quickly and easily to anchoring any size Arrow building help organize space and create directly to a concrete slab.
- Page 7 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 8 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 9 OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB47410) Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one of the following: A. To support a plywood deck B. To be filled with sand. We recommend the combined use of 1.
- Page 10 Anchoring into Concrete: (Model No. AK100 or 68383) Arrow Anchoring Kit: 1. For poured concrete slab or footing or patio blocks: Recommended for use with the concrete base. Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.
- Page 11 Hardware BS11 65941 65923 65004 65103 #6-32 Hex Nut (23) #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) #8-32 Hex Nut (66) (Packed with Screws) Bolt (66) Screw (302) 66714 66645 #6-32x7/16" (11 mm) #6-32x3/4" (19 mm) 66646 66022 Flat Hd Bolt (16) Flat Hd Bolt (7) Washer (278) Gray Foam Tape (1)
-
Page 12: Parts List
Parts List BS12 Assembly Part Part Quantity Check Key No. Number Description in Carton List 8060 Right Gable 8061 Left Gable 8062 Rear Header 9793 Corner Post 8066 Roof Frame 8067 Siding Stud - Short 8068 Siding Stud - Long 8075 Rear Siding - 6 Board 8076... - Page 13 Assembly by Key No. BS13 30 19...
-
Page 14: Door Assembly
● ● ● ● ● 9794 Horizontal Door Brace (4) ● Parts Needed For ● ● ● ● ● ● 9788 Right Door (1) Step 1 ● ● ● ● ● 9787 Left Door (1) Door Assembly ● ● ● ● ● 67729 Foam Board (2) BR14 END VIEW #6-32x3/4"... - Page 15 ● ● ● ● ● 9796 Ramp (1) ● Parts Needed For ● Step 2 ● ● ● ● ● 9795 Floor Frame (2) Floor Frame Assembly ● ● ● ● ● 8976 Side Floor Frame (4) BS15 Overlap the side floor frames as 8976 shown.
- Page 16 ● Parts Needed For ● ● ● ● ● ● 9793 Corner Post (2) Step 3 ● ● ● ● ● 8075 Rear Siding (1) Corner Posts/Rear Siding BR16 NOTE The remainder of the building assembly requires many hours and more than one person.
- Page 17 ● ● ● ● ● 6481 Gusset (4) ● ● ● ● ● 9793 Corner Post (2) ● Parts Needed For ● Step 4 ● ● ● ● ● 8433 Siding Stud (1) Corner Posts/Studs/Siding ● ● ● ● ● 8434 Siding Stud (1) ●...
- Page 18 ● ● ● ● ● 9791 Front Header (1) ● ● ● ● ● 8437 Side Eave Frame (2) ● Parts Needed For ● Step 5 ● ● ● ● ● 8062 Rear Header (1) ● ● ● ● ● 9789 Left Door Jamb (1) Headers/Frames/Jambs ●...
- Page 19 ● ● ● ● ● 8431 Side Siding (4) ● Parts Needed For ● ● ● ● ● ● 8075 Rear Siding (1) Step 6 ● ● ● ● ● 8067 Siding Stud (5) Side/Rear Siding/Studs ● ● ● ● ● 8068 Siding Stud (4) BS19 STEP Position the side siding (6 board)
- Page 20 ● ● ● ● ● 8061 Left Gable (1) ● ● ● ● ● 8060 Right Gable (1) ● Parts Needed For ● Step 7 ● ● ● ● ● 8438 Side Peak Frame (2) Gables/Peak/Roof Frames ● ● ● ● ● 8066 Roof Frame (4) ●...
- Page 21 ● Parts Needed For ● Step 8 ● ● ● ● ● 8431 Side Siding (4) Side Siding/Foam Tape BS21 Foam Installing the siding to the roof is Tape best done with a step ladder. 4th Side Siding NOTE Measure the building diagonally again and make adjustments to make sure the building is square.
- Page 22 ● ● ● ● ● 8432 Top Siding (2) ● ● ● ● ● 8439 Peak Trim (2) ● Parts Needed For ● ● ● ● ● ● 8442 Rear Siding Trim (1) Step 9 ● ● ● ● ● 8078 Right Wall Trim (1) Top Siding/Trim ●...
- Page 23 ● ● ● ● ● Right Door Assembly (1) ● Parts Needed For ● Step 10 ● ● ● ● ● Left Door Assembly (1) ● ● ● ● ● 9792 Door Stop (1) Door Stop BR23 Position doors in corners of door opening as shown and fasten hinges with 7/16"...
- Page 24 Anchoring and Floor Frame BR24 Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time.
- Page 25 SOME FACTS ABOUT RUST XA35hw SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
