Sunjoy D-AB268PWD Assembly Instructions

Assembly Instructions

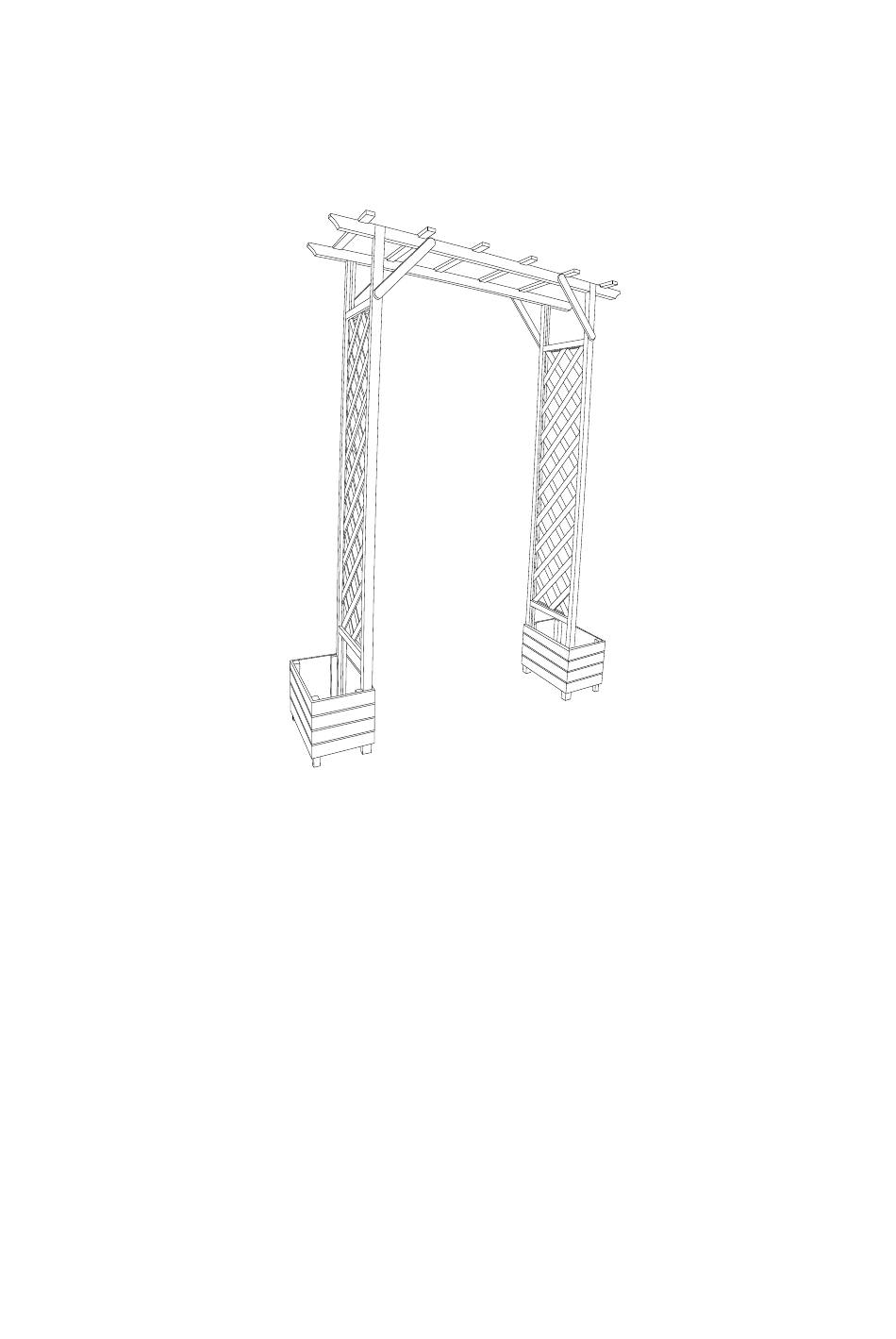

D-AB268PWD

WARNING:

Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically

check all bolted connections on your product to make sure they are tight and secure. Keep

these instructions for future reference.

Some parts may contain sharp edges. Wear protective gloves as necessary.

Set it up on the level ground.

Attention: There may have slots on the product, this is not inferior, it is nature of the

wood item, this is to allow the wood to naturally shrink and expand.

Table of Contents

Do you have a question about the D-AB268PWD and is the answer not in the manual?

Page 1 Assembly Instructions D-AB268PWD WARNING: Repeated assembly can weaken the locking ability of the screw/bolt/nut. Periodically check all bolted connections on your product to make sure they are tight and secure. Keep these instructions for future reference. Some parts may contain sharp edges. Wear protective gloves as necessary.
Page 2 Part# Description Qty. Cross beam Beam Corner connector Screen Baseboard Sideboard Frontboard Backboard Hardware pack Image Part# Description Qty. Image Part# Description Qty. Screw M6x60 Washer M6 Screw M4x25 Nut M6 Bolt M6x40...
Page 3 Fig.1: Attach Frontboard (G1), Backboard (G2) to Screen (D) with Screw AA, then attach Sideboard (F) to boards G1/G2 with AA as Fig.1 shown. Fig.2: Attach Beam (B) to Screen (D) with Bolt (CC), Washer (DD) and Nut (EE) as Fig. 2 shown. Fig.3: Fix Cross beam (A) to Beam (B) with Screw (BB) as Fig.
Page 4 Limited Warranty: This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of six (6) months.
